Seeria
Masterpact MTZ
Main
Range
Masterpact
sectioning ability
Yes conforming to IEC 60947-2

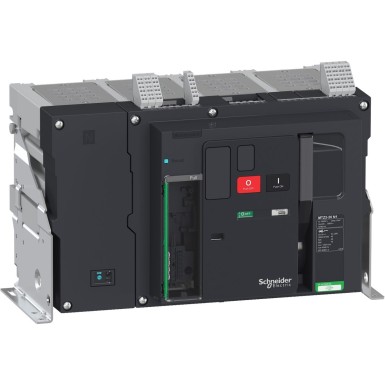

name of the device
MTZ220N1
type of product or equipment
Circuit breaker
Product Name
MasterPacT MTZ2
[ui] rated insulation voltage
1000 V AC 50/60 Hz conforming to IEC 60947-2
selectivity category
Category B
breaking capacity coding
N1
performance level
42 kA Icu at 220/415 V AC 50/60 Hz if conforming to CEI 60947-2
42 kA Icu at 440 V AC 50/60 Hz if conforming to CEI 60947-2
42 kA Icu at 500/525 V AC 50/60 Hz if conforming to CEI 60947-2
42 kA Icu at 660/690 V AC 50/60 Hz if conforming to CEI 60947-2
neutral pole position
Left
Complementary
"no" connection
115 mm
[icm] rated short circuit making capacity
88 kA 220/415 V AC at 50/60 Hz
88 kA 440 V AC at 50/60 Hz
88 kA 500/525 V AC at 50/60 Hz
88 kA 660/690 V AC at 50/60 Hz
[in] rated operational current
2000 A at 40 °C
[ue] rated operational voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
application
Protection
[ics] rated service breaking capacity
42 kA at 220/415 V AC 50/60 Hz conforming to IEC 60947-2
42 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
42 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
42 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
[icw] rated short-time withstand current
42 kA 0.5 s conforming to IEC 60947-2
42 kA 1s conforming to IEC 60947-2
22 kA 3 s conforming to IEC 60947-2
Handle front plate colour
352 mm
[uimp] rated impulse withstand voltage
12 kV conforming to IEC 60947-2
mechanical life
20000 cycles with periodic preventive maintenance conforming to IEC 60947-2
mode d'installation
Fixed
circuit breaker ct rating
2000 A
width (w)
537 mm
network frequency
50/60 Hz
depth
300 mm
mounting bracket
Base Plate Rails
Network type
THAT
maximum closing time
70 ms
order type
Pushbutton
Poles description
4P
Environment
degree of pollution
3 conforming to IEC 60947-1
product certificates
ASEFA
operating ambient temperature
-25…70 °C
standards
CEI 60947-2
CEI 60364-8-1
storage room temperature
-40…85 °C
