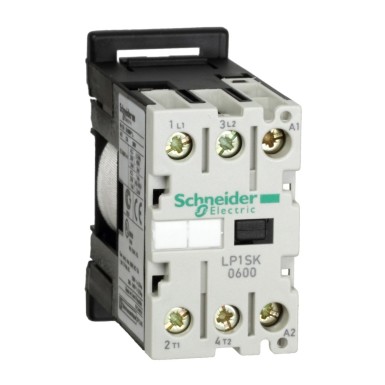

LP1SK0600BD - minikontaktor, TeSys SK, 2P(2NO), AC-1, 690V 12A, 24V DC mähis - Schneider Electric - minikontaktor, TeSys SK, 2P(2NO), AC-1, 690V 12A, 24V DC mähis - Schneider Electric - 0
LP1SK0600BD - minikontaktor, TeSys SK, 2P(2NO), AC-1, 690V 12A, 24V DC mähis - Schneider Electric - minikontaktor, TeSys SK, 2P(2NO), AC-1, 690V 12A, 24V DC mähis - Schneider Electric - 0

LP1SK0600BD – Schneider Electric

Tellimisel
EAN: 3389110563931
25,47 € KM-ta
31,58 € KM-ga
minikontaktor, TeSys SK, 2P(2NO), AC-1, 690V 12A, 24V DC mähis - Schneider Electric
 Korvis
31,58 €
SPETSIFIKATSIOONID
Default
Seeria TeSyS K
Main
[uc] control circuit voltage 24 V CC
job category AC-1
name of the device LP1SK
switch application Resistive load (AC-1)
type of product or equipment Mini-contactor
composition of the poles 2f
[ui] rated insulation voltage 690 V conforming to IEC 60947
690 V conforming to VDE 0110 gr C
690 V conforming to BS 5424
690 V conforming to UL 508
690 V conforming to CSA C22.2 No 14
control circuit type CC standard
composition of the power pole contacts 2P
average impedance 4 mOhm - Ith 12 A 50 Hz
Complementary
[ie] rated operational current 12 A (at <55°C) AC AC-1
[ue] rated operational voltage Power circuit: 690 V AC 50/60 Hz
[ics] rated service breaking capacity 52 A at <= 400 V for power circuit conforming to NF C 63-110
52 A at <= 400 V for power circuit conforming to IEC 60947
[icw] rated short-time withstand current 50 A at <55°C for power circuit
[ith] conventional thermal current 12 A at <55 °C) for power circuit
caliber of the fuse to be associated 16 A gI at <= 440 V for power circuit conforming to IEC 60947
average consumption on hold in w 2.2W at 20°C
Handle front plate colour 56 mm
tightening torque 0.8 Nm - on connector - with pozidriv n°1 screwdriver
product weight 0,132 kg
connection mode Power circuit: connector 1 cable(s) 0.35...6 mm²flexible with cable end
Power circuit: connector 1 cable(s) 0.5...6 mm²flexible without cable end
Power circuit: connector 1 cable(s) 1.5...6 mm²rigid
Power circuit: connector 2 cable(s) 0.35...1.5 mm²flexible with cable end
Power circuit: connector 2 cable(s) 0.35...2.5 mm²flexible without cable end
Power circuit: connector 2 cable(s) 1.5...4 mm² rigid
control circuit voltage range Operational: 0.85…1.1 Uc (at <50°C)
Level loss: 0.1…0.75 Uc (at <50°C)
mechanical endurance 10 Mcycles
width (w) 27 mm
rated rms inrush power 66 A at 690 V AC conforming to IEC 60947
66 A at 690 V AC conforming to NF C 63-110
depth 55,5 mm
mounting bracket Rail
maximum inrush power in w 2.2W (at 20°C)
operating time 4…6 ms désexcitation bobine + ouverture "F"
8…12 ms excitation bobine + fermeture "F"
max command speed 1200 cyc/h
Environment
ip degree of protection IP2x conforming to VDE 0106
operating altitude 2000 m without derating
product certificates CSA
UL
operating ambient temperature -20…50 °C
standards VDE 0660
BS 5424
NF C 63-110
CEI 60947
thermal dissipation 2.2W
storage room temperature -50…70 °C
protective treatment TC conforming to IEC 60068
TC conforming to DIN 50015
KKK ja hinna lisateave

Võta meiega ühendust

Professionaalne elektriseadmete müük Eestis, Lätis, Leedus ja Soomes. Sertifitseeritud madalpinge komponendid, kaitselülitid, kontaktorid ja tööstusautomaatika lahendused. Sama päeva hinnapakkumised ja kiire tarne Baltikumis ja Soomes

Baltelec
+372 5326 4976

E–R 9:00–17:00

info@baltelec.ee

Vastame 2 tunni jooksul

Schneider Electric LP1SK0600BD on toode kategooriast Tööstuslikud kontaktorid, mis on mõeldud suurettevõtetele. BaltElec tegeleb mahupõhise müügi ja toodete levitamisega Eestis, Lätis, Leedus ja Soomes.

  • Originaal Schneider Electric toode, sertifikaadid ja vastavusdokumendid saadaval.
  • Projektihind – küsi pakkumist suuremate koguste jaoks (võimalik, et sätestame MOQ).
  • Tõhus ja kiire logistika Baltikumis ning Soomes; koostöö tunnustatud kulleritega.
  • Tehniline tugi ja ettepanekud sobivuse kohta vastavalt Sinu rakendusele.

Hind: Küsi projektipakkumist. Hind sõltub kogusest, tarne- ja maksetingimustest.
