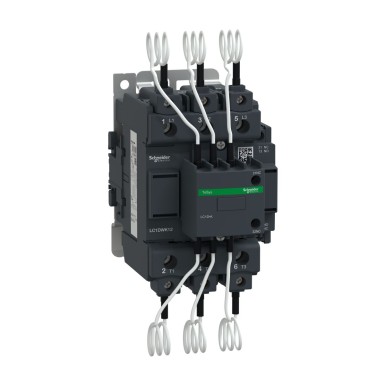

LC1DWK12Q7 - Kondensaatorkontaktor, Tesys Deca, 63kVAR, 400/415V 50Hz, 380V AC 50/60Hz mähis. - Schneider Electric - Kondensaatorkontaktor, Tesys Deca, 63kVAR, 400/415V 50Hz, 380V AC 50/60Hz mähis. - Schneider Electric - 0
LC1DWK12Q7 - Kondensaatorkontaktor, Tesys Deca, 63kVAR, 400/415V 50Hz, 380V AC 50/60Hz mähis. - Schneider Electric - Kondensaatorkontaktor, Tesys Deca, 63kVAR, 400/415V 50Hz, 380V AC 50/60Hz mähis. - Schneider Electric - 0

LC1DWK12Q7 – Schneider Electric

Tellitav
EAN: 3389110060614
185,91 € KM-ta
230,53 € KM-ga
Kondensaatorkontaktor, Tesys Deca, 63kVAR, 400/415V 50Hz, 380V AC 50/60Hz mähis. - Schneider Electric
 Korvis
230,53 €
SPETSIFIKATSIOONID
Default
Seeria TeSyS Deca kontaktorid
Main
Range TeSys
[uc] control circuit voltage 380 V AC 50/60 Hz
job category AC-6B
name of the device LC1DWK
switch application Power factor correction
type of product or equipment capacitor contactor
Product Name TeSys LC1D.K
TeSys Deca
control circuit type AC at 50/60 Hz
composition of the power pole contacts 3F
rated reactive power 35 kvar at 230 V AC 50 Hz at <60 °C
63 kvar at 400 V AC 50 Hz at <60 °C
67 kvar at 440 V AC 50 Hz at <60 °C
104 kvar at 690 V AC 50 Hz at <60 °C
30 kvar at 230 V AC 60 Hz at <60 °C
60 kvar at 460 V AC 60 Hz at <60 °C
80 kvar at 575 V AC 60 Hz at <60 °C
Complementary
[ue] rated operational voltage Power circuit: 690 V AC 50/60 Hz
application Control
Handle front plate colour 180 mm
tightening torque Power circuit: 9 Nm - on
Remote control connector: 1.7 Nm - on screw clamp terminals
auxiliary contacts available on each contactor 1 "F" + 2 "O" non chevauchants
product weight 1,65 kg
type of auxiliary contacts mechanically linked type 1 NO + 2 NC conforming to IEC 60947-5-1
electrical life 300000 cycles at Ue 400 V
200000 cycles at Ue 690 V
connection mode Remote control: screw clamp terminals 1 1…4 mm² - cable stiffness: rigid
Remote control: screw clamp terminals 2 1…4 mm² - cable stiffness: rigid
Remote control: screw clamp terminals 1 1…4 mm² - stiffness cable cross section: flexible without cable end
Remote control: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Remote control: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Remote control: screw clamp
terminals screw clamp 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: connector 1 4…50 mm² - cable stiffness: rigid
Power circuit: connector 2 4…25 mm² - cable stiffness: rigid
Power circuit: connector 1 4…50 mm² - cable stiffness: flexible without cable end
Power circuit: connector 2 4…25 mm² - cable stiffness: flexible without cable end
Power circuit: connector 1 4…50 mm² - cable stiffness : flexible with cable end
Power circuit: connector 2 4…16 mm² - cable stiffness: flexible with cable end
width (w) 85 mm
depth 154 mm
mounting bracket Platinum DIN
Rail
max command speed 240 cyc/h
Poles description 3P
Environment
ip degree of protection IP20 front face conforming to IEC 60529
operating altitude 0...3000 m
product certificates CEI CE
UL
CSA
UKCA certificate
operating ambient temperature -5…60 °C
standards EN/CEI 60947-1
EN/CEI 60947-4-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
storage room temperature -60…80 °C
