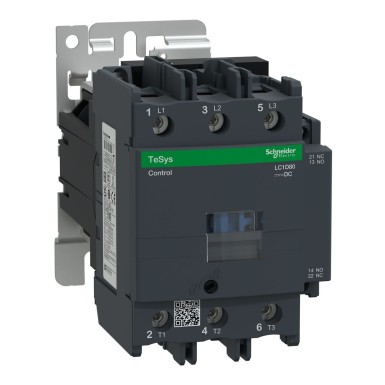

LC1D80BD – Schneider Electric
Tellitav
EAN: 3389110439977
174,06 € KM-ta
215,83 € KM-ga
Kontaktor, TeSys Deca, 3P(3NO), AC-3/AC-3e, 440V, 80A, 24V DC standard mähis. - Schneider Electric
SPETSIFIKATSIOONID
Default
Seeria
TeSyS Deca kontaktorid
Main
product range
TeSys D
Range
TeSys
[uc] control circuit voltage
24 V CC
job category
AC-1
AC-4
AC-3
AC-3e
AC-4
AC-3
AC-3e
name of the device
LC1D
switch application
Motor control (AC-3)
Resistive load (AC-1)
Resistive load (AC-1)
type of product or equipment
contactor
[ui] rated insulation voltage
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Power circuit: 1000 V conforming to IEC 60947-4-1
Signaling circuit: 690 V conforming to IEC 60947-1
Signaling circuit: 600 V CSA Certified
Signaling Circuit: 600V UL Certified
Power circuit: 600 V UL certified
Power circuit: 1000 V conforming to IEC 60947-4-1
Signaling circuit: 690 V conforming to IEC 60947-1
Signaling circuit: 600 V CSA Certified
Signaling Circuit: 600V UL Certified
control circuit type
CC standard
engine power hp
7.5 hp at 120 VAC 50/60 Hz for single phase motors
15 hp at 230/240 VAC 50/60 Hz for single phase motors
30 hp at 200/208 VAC 50/60 Hz for 3 phase motors
30 hp at 230 /240 V AC 50/60 Hz for 3 motor phases
60 hp at 460/480 V AC 50/60 Hz for 3 motor phases
60 hp at 575/600 V AC 50/60 Hz for 3 motor phases
15 hp at 230/240 VAC 50/60 Hz for single phase motors
30 hp at 200/208 VAC 50/60 Hz for 3 phase motors
30 hp at 230 /240 V AC 50/60 Hz for 3 motor phases
60 hp at 460/480 V AC 50/60 Hz for 3 motor phases
60 hp at 575/600 V AC 50/60 Hz for 3 motor phases
composition of the power pole contacts
3F
motor power kW
22 kW at 220...230 V AC 50/60 Hz (AC-3)
37 kW at 380...400 V AC 50/60 Hz (AC-3)
45 kW at 415...440 V CA 50/ 60 Hz (AC-3)
55 kW at 500 V AC 50/60 Hz (AC-3)
45 kW at 660...690 V AC 50/60 Hz (AC-3)
45 kW at 1000 V CA 50/60 Hz (AC-3)
15 kW at 400 V AC 50/60 Hz (AC-4)
37 kW at 380...400 V AC 50/60 Hz (AC-3)
45 kW at 415...440 V CA 50/ 60 Hz (AC-3)
55 kW at 500 V AC 50/60 Hz (AC-3)
45 kW at 660...690 V AC 50/60 Hz (AC-3)
45 kW at 1000 V CA 50/60 Hz (AC-3)
15 kW at 400 V AC 50/60 Hz (AC-4)
average impedance
0.8 mOhm - Ith 125 A 50 Hz for power circuit
Complementary
[ie] rated operational current
125 A (at <60°C) at <= 440 V AC AC-1 for power circuit
80 A (at <60°C) at <= 440 V AC AC-3 for power circuit
80 A (at <60 °C) at <= 440 V AC-3e for power circuit
80 A (at <60°C) at <= 440 V AC AC-3 for power circuit
80 A (at <60 °C) at <= 440 V AC-3e for power circuit
[ue] rated operational voltage
Power circuit: <= 300 V DC 25...400 Hz
Power circuit: <= 690 V AC
Power circuit: <= 690 V AC
compatibility code
LC1D
[ics] rated service breaking capacity
1100 A at 440 V for power circuit conforming to IEC 60947
[icw] rated short-time withstand current
640 A at <40°C - 10 s for power circuit
990 A at <40°C - 1s for power circuit
135 A at <40°C - 10 min for power circuit
320 A at <40°C - 1 min for power circuit
100 A - 1s for signaling circuit
120 A - 500 ms for signaling circuit
140 A - 100 ms for signaling circuit
990 A at <40°C - 1s for power circuit
135 A at <40°C - 10 min for power circuit
320 A at <40°C - 1 min for power circuit
100 A - 1s for signaling circuit
120 A - 500 ms for signaling circuit
140 A - 100 ms for signaling circuit
[ith] conventional thermal current
10 A at <60°C) for signaling circuit
125 A at <60°C) for power circuit
125 A at <60°C) for power circuit
caliber of the fuse to be associated
10 A gG for signaling circuit conforming to IEC 60947-5-1
200 A gG at <= 690 V type 1 coordination for power circuit
160 A gG at <= 690 V type 2 coordination for power circuit
200 A gG at <= 690 V type 1 coordination for power circuit
160 A gG at <= 690 V type 2 coordination for power circuit
average consumption on hold in w
22W at 20°C
Handle front plate colour
127 mm
tightening torque
Remote control: 1.2 Nm - on screw-clamp terminals - with flat screwdriver Ø 6 mm
Remote control: 1.2 Nm - on screw-clamp terminals - with Phillips No. 2 screwdriver
Power circuit: 12 Nm - on connector - with flat screwdriver Ø 6 to Ø 8 mm
Power circuit: 12 Nm - on hexagonal connector with 4 mm screw head
Remote control: 1.2 Nm - on screw clamp terminals - with pozidriv n°2 screwdriver
Remote control: 1.2 Nm - on screw-clamp terminals - with Phillips No. 2 screwdriver
Power circuit: 12 Nm - on connector - with flat screwdriver Ø 6 to Ø 8 mm
Power circuit: 12 Nm - on hexagonal connector with 4 mm screw head
Remote control: 1.2 Nm - on screw clamp terminals - with pozidriv n°2 screwdriver
[uimp] rated impulse withstand voltage
8 kV conforming to IEC 60947
auxiliary contacts
1 "O" + 1 "F"
minimum switching current
5 mA for signaling circuit
product weight
2,59 kg
type of auxiliary contacts
mechanically linked type 1 NC + 1 NO conforming to IEC 60947-5-1
1 NC mirror contact type conforming to IEC 60947-4-1
1 NC mirror contact type conforming to IEC 60947-4-1
contact compatibility
M9
electrical life
0.8 Mcycles 125 A AC-1 at Ue <= 440 V
1.5 Mcycles 80 A AC-3 at Ue <= 440 V
1.5 Mcycles 80 A AC-3e at Ue <= 440 V
1.5 Mcycles 80 A AC-3 at Ue <= 440 V
1.5 Mcycles 80 A AC-3e at Ue <= 440 V
connection mode
Remote control: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Remote control: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end
Remote control: screw terminal blocks- clamp 1 1…4 mm² - cable stiffness: flexible without cable end
Remote control: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Remote control: screw clamp terminals 1 1…4 mm² - cable stiffness : rigid without cable end
Remote control: screw clamp terminals 2 1…4 mm² - cable stiffness: rigid without cable end
Power circuit: connector 1 4…50 mm² - cable stiffness: flexible without cable end
Power circuit: connector 2 4… 25 mm² - cable stiffness: flexible without cable end
Power circuit: connector 1 4…50 mm² - cable stiffness: flexible with ferrule
Power circuit: connector 2 4…16 mm² - cable stiffness: flexible with ferrule
Power circuit: connector 1 4…50 mm² - cable stiffness : rigid without cable end
Power circuit: connector 2 4…25 mm² - cable stiffness: rigid without cable end
Remote control: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end
Remote control: screw terminal blocks- clamp 1 1…4 mm² - cable stiffness: flexible without cable end
Remote control: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Remote control: screw clamp terminals 1 1…4 mm² - cable stiffness : rigid without cable end
Remote control: screw clamp terminals 2 1…4 mm² - cable stiffness: rigid without cable end
Power circuit: connector 1 4…50 mm² - cable stiffness: flexible without cable end
Power circuit: connector 2 4… 25 mm² - cable stiffness: flexible without cable end
Power circuit: connector 1 4…50 mm² - cable stiffness: flexible with ferrule
Power circuit: connector 2 4…16 mm² - cable stiffness: flexible with ferrule
Power circuit: connector 1 4…50 mm² - cable stiffness : rigid without cable end
Power circuit: connector 2 4…25 mm² - cable stiffness: rigid without cable end
control circuit voltage range
0.1...0.3 Uc -40...70 °C DC level drop
0.85...1.1 Uc -40...55 °C DC operational
1...1.1 Uc 55...70 °C DC operational
0.85...1.1 Uc -40...55 °C DC operational
1...1.1 Uc 55...70 °C DC operational
mechanical endurance
4 Mcycles
width (w)
85 mm
mechanical robustness
Open contactor vibrations (2 Gn, 5 to 300 Hz)
Open contactor shocks (8 Gn for 11 ms)
Closed contactor vibrations (3 Gn, 5 to 300 Hz)
Closed contactor shocks (10 Gn for 11 ms)
Open contactor shocks (8 Gn for 11 ms)
Closed contactor vibrations (3 Gn, 5 to 300 Hz)
Closed contactor shocks (10 Gn for 11 ms)
Flame retardance
V1 conforming to UL 94
time constant
75 ms
rated rms inrush power
140 A AC for signaling circuit conforming to IEC 60947-5-1
250 A DC for signaling circuit conforming to IEC 60947-5-1
1100 A at 440 V for power circuit conforming to IEC 60947
250 A DC for signaling circuit conforming to IEC 60947-5-1
1100 A at 440 V for power circuit conforming to IEC 60947
depth
186 mm
mounting bracket
Platine
Rail
Rail
frequency
With
maximum inrush power in w
22W (at 20°C)
signaling circuit frequency
25 to 400 Hz
operating time
95…130 ms closing
20…35 ms opening
20…35 ms opening
power loss per pole
5,1 W AC-3
12,5 W AC-1
5,1 W AC-3e
12,5 W AC-1
5,1 W AC-3e
security reliability level
B10d = 1369863 contactor cycle with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 contactor cycle with mechanical load conforming to EN/ISO 13849-1
B10d = 20000000 contactor cycle with mechanical load conforming to EN/ISO 13849-1
max command speed
3600 cycles/h at <60°C
minimum switching voltage
17 V for signaling circuit
non-overlap time
1.5 ms on de-
energization between NC and NO contact 1.5 ms on excitation between NC and NO contact
energization between NC and NO contact 1.5 ms on excitation between NC and NO contact
coil technology
Without integrated interference suppression module
Poles description
3P
Environment
degree of pollution
3
ip degree of protection
IP20 front face conforming to IEC 60529
operating altitude
0...3000 m
product certificates
GOST
RINA
GL
DNV
CSA
CCC
UL
LROS (Lloyds register of shipping)
BV
RINA
GL
DNV
CSA
CCC
UL
LROS (Lloyds register of shipping)
BV
ambient air temperature for operation
-40…60 °C
60…70 °C with current reduction
60…70 °C with current reduction
overvoltage category
III
standards
CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
CEI 60947-4-1
CEI 60947-5-1
UL 508
EN 60947-4-1
EN 60947-5-1
CEI 60947-4-1
CEI 60947-5-1
UL 508
fire resistance
850 °C conforming to IEC 60695-2-1
climatic resistance
conform to IACS E10 exposure to damp heat
protective treatment
TH conforming to IEC 60068-2-30
insulation resistance
> 10 MΩ for signaling circuit
KKK ja hinna lisateave
LC1D80BD Schneider Electric on lahendus kategooriast Tööstuslikud kontaktorid, mis on mõeldud suurettevõtetele. BaltElec tegeleb hulgimüügi ja distributsiooniga Eestis, Lätis, Leedus ja Soomes.
- Autentne Schneider Electric toode, vastavusdokumendid päringu alusel.
- Mahupõhine hinnastus – küsi pakkumist suuremate koguste jaoks (võimalik, et sätestame MOQ).
- Kiire tarne Baltikumis ning Soomes; koostöö tunnustatud kulleritega.
- Tehniline tugi ja nõustamine valikul vastavalt Sinu rakendusele.
Hinnainfo: Küsi eripakkumist. Hind sõltub kogusest, tarne- ja maksetingimustest.
KKK tootele LC1D80BD - Schneider Electric
-
Kas BaltElec pakub LC1D80BD jaoks hulgihinda?
Jah, projektihinnad on saadaval. Saada meile loend soovitud kogustega (näiteks: LC1D80BD, Schneider Electric, 10tk), et koostaksime projekti pakkumise.
-
Milline on LC1D80BD saadavus ja tarneaeg Baltikumis ja Soomes?
Pakume kiiret tarnekäivet Eesti, Läti, Leedu ja Soome suunal. Täpne tarneaeg sõltub konfiguratsioonist ja laoseisust; kinnitame pakkumisega.
-
Kas LC1D80BD firmalt Schneider Electric on autentne?
Jah. Müüme ainult Schneider Electric autentseid tooteid, millel on tehase garantii. Vajadusel edastame vastavussertifikaadid.
-
Kas LC1D80BD sobib minu rakendusse?
Aitame sobivuse kiirelt kinnitada. Edasta palun vajalikud tingimused (pinge, vool, keskkond, standardid) ja võrdleme Schneider Electric tehniliste nõuetega.
-
Kuidas toimub kohaletoimetamine ja arveldamine?
Toimetame logistikapartneriga Eesti, Läti, Leedu ja Soome. Arveldamine vastavalt kokkuleppele; projektid ja suuremad kogused hinnastame eraldi.
