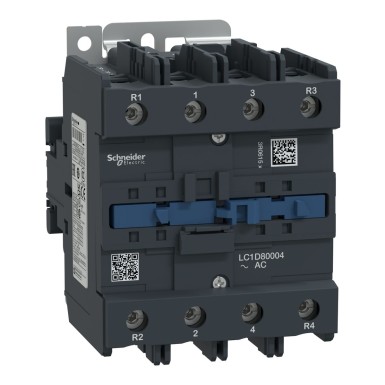

LC1D80004Q7 - Kontaktor, TeSys Deca, 4P(4NO), AC-1, <=440V, 125A, 380V AC 50/60Hz mähis. - Schneider Electric - Kontaktor, TeSys Deca, 4P(4NO), AC-1, <=440V, 125A, 380V AC 50/60Hz mähis. - Schneider Electric - 0
LC1D80004Q7 - Kontaktor, TeSys Deca, 4P(4NO), AC-1, <=440V, 125A, 380V AC 50/60Hz mähis. - Schneider Electric - Kontaktor, TeSys Deca, 4P(4NO), AC-1, <=440V, 125A, 380V AC 50/60Hz mähis. - Schneider Electric - 0

LC1D80004Q7 – Schneider Electric

Tellitav
EAN: 3389110074642
243,40 € KM-ta
301,81 € KM-ga
Kontaktor, TeSys Deca, 4P(4NO), AC-1, <=440V, 125A, 380V AC 50/60Hz mähis. - Schneider Electric
 Korvis
301,81 €
SPETSIFIKATSIOONID
Default
Seeria TeSyS Deca kontaktorid
Main
product range TeSys D
Range TeSys
[uc] control circuit voltage 380 V AC 50/60 Hz
job category AC-1
name of the device LC1D
switch application Resistive load (AC-1)
type of product or equipment contactor
[ui] rated insulation voltage Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Power circuit: 1000 V conforming to IEC 60947-4-1
control circuit type AC at 50/60 Hz
composition of the power pole contacts 4F
average impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit
Complementary
[ie] rated operational current 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
[ue] rated operational voltage Power circuit: <= 300 V DC 25...400 Hz
Power circuit: <= 690 V AC
compatibility code LC1D
[ics] rated service breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947
[icw] rated short-time withstand current 640 A at <40°C - 10 s for power circuit
990 A at <40°C - 1s for power circuit
135 A at <40°C - 10 min for power circuit
320 A at <40°C - 1 min for power circuit
[ith] conventional thermal current 125 A at <60 °C) for power circuit
caliber of the fuse to be associated 200 A gG at <= 690 V type 1 coordination for power circuit
160 A gG at <= 690 V type 2 coordination for power circuit
Handle front plate colour 127 mm
tightening torque Remote control: 1.2 Nm - on screw-clamp terminals - with flat screwdriver Ø 6 mm
Remote control: 1.2 Nm - on screw-clamp terminals - with Phillips No. 2 screwdriver
Power circuit: 12 Nm - on connector - with flat screwdriver Ø 6 to Ø 8 mm
Power circuit: 12 Nm - on hexagonal connector with 4 mm screw head
Remote control: 1.2 Nm - on screw clamp terminals - with pozidriv n°2 screwdriver
[uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
average fuel consumption when going 26 VA 60 Hz cos phi 0.3 (at 20°C)
26 VA 50 Hz cos phi 0.3 (at 20°C)
product weight 1,76 kg
contact compatibility M1
electrical life 0.8 Mcycles 125 A AC-1 at Ue <= 440 V
control circuit voltage range 0.85...1.1 Uc -40...55 °C operational AC 60 Hz
0.3...0.6 Uc -40...70 °C loss of level AC 50/60 Hz
0.8...1.1 Uc -40 …55 °C operational AC 50 Hz
1...1.1 Uc 55…70 °C operational AC 50/60 Hz
mechanical endurance 4 Mcycles
width (w) 96 mm
Flame retardance V1 conforming to UL 94
rated rms inrush power 1100 A at 440 V for power circuit conforming to IEC 60947
depth 125 mm
mounting bracket Platine
Rail
frequency Without
calling power goes 245 VA 60 Hz cos phi 0.75 (at 20°C)
245 VA 50 Hz cos phi 0.75 (at 20°C)
power loss per pole 12,5 W AC-1
security reliability level B10d = 1369863 contactor cycle with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 contactor cycle with mechanical load conforming to EN/ISO 13849-1
max command speed 3600 cycles/h at <60°C
coil technology Without integrated interference suppression module
Poles description 4P
Environment
degree of pollution 3
ip degree of protection IP20 front face conforming to IEC 60529
operating altitude 0...3000 m
product certificates DNV
CCC
RINA
CSA
GOST
BV
GL
UL
LROS (Lloyds register of shipping)
overvoltage category III
standards CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
CEI 60947-4-1
CEI 60947-5-1
UL 508
fire resistance 850 °C conforming to IEC 60695-2-1
climatic resistance conform to IACS E10
KKK ja hinna lisateave

Võta meiega ühendust

Professionaalne elektriseadmete müük Eestis, Lätis, Leedus ja Soomes. Sertifitseeritud madalpinge komponendid, kaitselülitid, kontaktorid ja tööstusautomaatika lahendused. Sama päeva hinnapakkumised ja kiire tarne Baltikumis ja Soomes

Baltelec
+372 5326 4976

E–R 9:00–17:00

info@baltelec.ee

Vastame 2 tunni jooksul

Schneider Electric LC1D80004Q7 on toode kategooriast Tööstuslikud kontaktorid, mis on mõeldud suurettevõtetele. BaltElec tegeleb mahupõhise müügi ja toodete levitamisega Eestis, Lätis, Leedus ja Soomes.

  • Originaal Schneider Electric toode, vastavusdokumendid päringu alusel.
  • Projektihind – küsi pakkumist suuremate koguste jaoks (võimalik, et sätestame MOQ).
  • Kiire tarne Baltikumis ning Soomes; koostöö logistikapartneritega.
  • Tehniline tugi ja nõustamine valikul vastavalt Sinu rakendusele.

Hinnainfo: Küsi eripakkumist. Hind sõltub kogusest, tarne- ja maksetingimustest.
