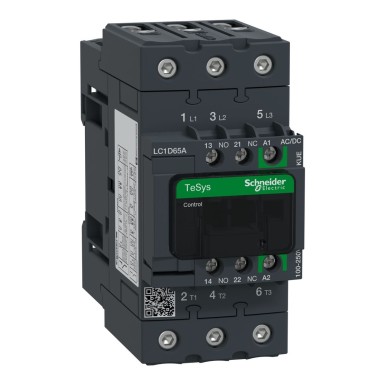

LC1D65AKUE – Schneider Electric
Tellitav
EAN: 3606480988288
157,83 € KM-ta
195,71 € KM-ga
Kontaktor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 kuni 440V, 65A, 100-250VAC/DC mähis, EverLink - Schneider Electric
SPETSIFIKATSIOONID
Default
Seeria
TeSyS Deca kontaktorid
Main
product range
TeSys D
TeSys Deca
TeSys Deca
Range
TeSys
TeSys Deca
TeSys Deca
[uc] control circuit voltage
100...250 V CA 50/60 Hz
100...250 V CC
100...250 V CC
job category
AC-1
AC-3
AC-3e
AC-3
AC-3e
name of the device
LC1D
switch application
Motor control (AC-3)
Resistive load (AC-1)
Resistive load (AC-1)
type of product or equipment
contactor
[ui] rated insulation voltage
Power circuit: 690 V conforming to IEC 60947-4-1
Signaling circuit: 690 V conforming to IEC 60947-1
Signaling circuit: 690 V conforming to IEC 60947-1
control circuit type
AC/DC at 50/60 Hz AC/DC electronic
engine power hp
5 hp at 115 V AC 60 Hz for single phase motors
10 hp at 230/240 V AC 60 Hz for single phase motors
20 hp at 200/208 V AC 60 Hz for 3 phase motors
20 hp at 230/240 V AC 60 Hz for 3 motor phases
40 hp at 460/480 V AC 60 Hz for 3 motor phases
50 hp at 575/600 V AC 60 Hz for 3 motor phases
10 hp at 230/240 V AC 60 Hz for single phase motors
20 hp at 200/208 V AC 60 Hz for 3 phase motors
20 hp at 230/240 V AC 60 Hz for 3 motor phases
40 hp at 460/480 V AC 60 Hz for 3 motor phases
50 hp at 575/600 V AC 60 Hz for 3 motor phases
composition of the power pole contacts
3F
motor power kW
18,5 kW at 220...230 V AC 50 Hz (AC-3)
30 kW at 380...400 V AC 50 Hz (AC-3)
37 kW at 415 V AC 50 Hz (AC-3)
37 kW à 440 V AC 50 Hz (AC-3)
37 kW à 500 V AC 50 Hz (AC-3)
37 kW à 660...690 V AC 50 Hz (AC-3)
18,5 kW à 220.. .230 V CA 50 Hz (AC-3e)
30 kW à 380...400 V CA 50 Hz (AC-3e)
37 kW à 415 V CA 50 Hz (AC-3e)
37 kW à 440 V CA 50 Hz ( AC-3e)
37 kW at 500 V AC 50 Hz (AC-3e)
37 kW at 660...690 V AC 50 Hz (AC-3e)
30 kW at 380...400 V AC 50 Hz (AC-3)
37 kW at 415 V AC 50 Hz (AC-3)
37 kW à 440 V AC 50 Hz (AC-3)
37 kW à 500 V AC 50 Hz (AC-3)
37 kW à 660...690 V AC 50 Hz (AC-3)
18,5 kW à 220.. .230 V CA 50 Hz (AC-3e)
30 kW à 380...400 V CA 50 Hz (AC-3e)
37 kW à 415 V CA 50 Hz (AC-3e)
37 kW à 440 V CA 50 Hz ( AC-3e)
37 kW at 500 V AC 50 Hz (AC-3e)
37 kW at 660...690 V AC 50 Hz (AC-3e)
average impedance
1.5 mOhm - Ith 80 A 50 Hz for power circuit
Complementary
[ie] rated operational current
80 A (at <60°C) at <= 440 V AC-1 for power circuit
65 A (at <60°C) at <= 440 V AC-3 for power circuit
65 A (at <60°C ) at <= 440 V AC-3e for power circuit
65 A (at <60°C) at <= 440 V AC-3 for power circuit
65 A (at <60°C ) at <= 440 V AC-3e for power circuit
[ue] rated operational voltage
Power circuit: <= 690 V AC 25...400 Hz
compatibility code
LC1D
[ics] rated service breaking capacity
1000 A at 440 V for power circuit conforming to IEC 60947
[icw] rated short-time withstand current
110 A at <40°C - 10 min for
260 A power circuit at <40°C - 1 min for
520 A power circuit at <40°C - 10 s for
900 A power circuit at <40°C - 1s for
100 A power circuit - 1s for
120 A signaling circuit - 500 ms for
140 A signaling circuit - 100 ms for signaling circuit
260 A power circuit at <40°C - 1 min for
520 A power circuit at <40°C - 10 s for
900 A power circuit at <40°C - 1s for
100 A power circuit - 1s for
120 A signaling circuit - 500 ms for
140 A signaling circuit - 100 ms for signaling circuit
[ith] conventional thermal current
80 A at <60°C) for power circuit
10 A at <60°C) for signaling circuit
10 A at <60°C) for signaling circuit
caliber of the fuse to be associated
125 A gG at <= 690 V type 1 coordination for power circuit
125 A gG at <= 690 V type 2 coordination for power circuit
10 A gG for signaling circuit conforming to IEC 60947-5-1
125 A gG at <= 690 V type 2 coordination for power circuit
10 A gG for signaling circuit conforming to IEC 60947-5-1
average consumption on hold in w
1.2W at 20°C
Handle front plate colour
122 mm
tightening torque
Remote control: 1.7 Nm - on screw-clamp terminals - with flat screwdriver Ø 6 mm
Remote control: 1.7 Nm - on screw-clamp terminals - with Phillips No. 2 screwdriver
Power circuit: 8 Nm - on connectors EverLink BTR screw connectors - cable 25…35 mm² hexagonal screw head 4 mm
Power circuit: 5 Nm - on EverLink BTR screw connectors - cable 1…25 mm² hexagonal screw head 4 mm
Power circuit: 5 Nm - with pozidriv n screwdriver °2
Remote control: 1.7 Nm - with pozidriv n°2 screwdriver
Remote control: 1.7 Nm - on screw-clamp terminals - with Phillips No. 2 screwdriver
Power circuit: 8 Nm - on connectors EverLink BTR screw connectors - cable 25…35 mm² hexagonal screw head 4 mm
Power circuit: 5 Nm - on EverLink BTR screw connectors - cable 1…25 mm² hexagonal screw head 4 mm
Power circuit: 5 Nm - with pozidriv n screwdriver °2
Remote control: 1.7 Nm - with pozidriv n°2 screwdriver
[uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947
auxiliary contacts
1 "O" + 1 "F"
average fuel consumption when going
1.8VA 50/60Hz (at 20°C)
minimum switching current
5 mA for signaling circuit
product weight
1,002 kg
type of auxiliary contacts
mechanically linked type 1 NC + 1 NO conforming to IEC 60947-5-1
1 NC mirror contact type conforming to IEC 60947-4-1
1 NC mirror contact type conforming to IEC 60947-4-1
electrical life
1.8 Mcycles 57 A AC-3 at Ue <= 440 V
0.5 Mcycles 80 A AC-1 at Ue <= 440 V
1.8 Mcycles 57 A AC-3e at Ue <= 440 V
0.5 Mcycles 80 A AC-1 at Ue <= 440 V
1.8 Mcycles 57 A AC-3e at Ue <= 440 V
connection mode
Remote control: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Remote control: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Remote control: screw clamp terminals 1 1… 4 mm² - cable stiffness: flexible with cable end
Remote control: screw clamp terminals 2 1...2.5 mm² - cable stiffness: flexible with cable end
Remote control: screw clamp terminals 1 1...4 mm² - cable stiffness: solid
Remote control: screw clamp terminals 2 1…4 mm² - cable stiffness: rigid
Power circuit: EverLink 1 BTR screw connectors 1…35 mm² - cable stiffness: flexible without cable end
Power circuit: EverLink 1 BTR screw connectors 1...35 mm² - cable stiffness: flexible with cable end
Power circuit: EverLink 1 BTR screw connectors 1…35 mm² - cable stiffness: rigid
Power circuit: EverLink 2 BTR screw connectors 1…25 mm² - cable stiffness: flexible without cable end
Power circuit: BTR screw connectors EverLink 2 1…25 mm² - cable stiffness: flexible with cable end
Power circuit: BTR screw connectors EverLink 2 1…25 mm² - cable stiffness: rigid
Remote control: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Remote control: screw clamp terminals 1 1… 4 mm² - cable stiffness: flexible with cable end
Remote control: screw clamp terminals 2 1...2.5 mm² - cable stiffness: flexible with cable end
Remote control: screw clamp terminals 1 1...4 mm² - cable stiffness: solid
Remote control: screw clamp terminals 2 1…4 mm² - cable stiffness: rigid
Power circuit: EverLink 1 BTR screw connectors 1…35 mm² - cable stiffness: flexible without cable end
Power circuit: EverLink 1 BTR screw connectors 1...35 mm² - cable stiffness: flexible with cable end
Power circuit: EverLink 1 BTR screw connectors 1…35 mm² - cable stiffness: rigid
Power circuit: EverLink 2 BTR screw connectors 1…25 mm² - cable stiffness: flexible without cable end
Power circuit: BTR screw connectors EverLink 2 1…25 mm² - cable stiffness: flexible with cable end
Power circuit: BTR screw connectors EverLink 2 1…25 mm² - cable stiffness: rigid
control circuit voltage range
<= 0.1 Uc -40…70 °C level drop AC/DC
0.85…1.1 Uc -40…60 °C operational AC/DC
1...1.1 Uc 60…70 °C operational AC/DC
0.85…1.1 Uc -40…60 °C operational AC/DC
1...1.1 Uc 60…70 °C operational AC/DC
mechanical endurance
6 Mcycles
width (w)
55 mm
mechanical robustness
Contactor open vibrations (2 Gn, 5 to 300 Hz)
Contactor closed vibrations (4 Gn, 5 to 300 Hz)
Contactor open shocks (10 Gn for 11 ms)
Contactor closed shocks (15 Gn for 11 ms)
Contactor closed vibrations (4 Gn, 5 to 300 Hz)
Contactor open shocks (10 Gn for 11 ms)
Contactor closed shocks (15 Gn for 11 ms)
Flame retardance
V1 conforming to UL 94
rated rms inrush power
1000 A at 440 V for power circuit conforming to IEC 60947
140 A AC for signaling circuit conforming to IEC 60947-5-1
250 A DC for signaling circuit conforming to IEC 60947-5-1
140 A AC for signaling circuit conforming to IEC 60947-5-1
250 A DC for signaling circuit conforming to IEC 60947-5-1
depth
120 mm
mounting bracket
Rail
Platine
Platine
frequency
With
maximum inrush power in w
14W (at 20°C)
signaling circuit frequency
25 to 400 Hz
calling power goes
18VA 50/60Hz (at 20°C)
operating time
From 55 to 65 ms closing
20...120 ms opening (date code >= 17221)
20...80 ms opening (date code >= 18011)
20...120 ms opening (date code >= 17221)
20...80 ms opening (date code >= 18011)
power loss per pole
9,6 W AC-1
6,3 W AC-3
6,3 W AC-3e
6,3 W AC-3
6,3 W AC-3e
security reliability level
B10d = 1369863 contactor cycle with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 contactor cycle with mechanical load conforming to EN/ISO 13849-1
B10d = 20000000 contactor cycle with mechanical load conforming to EN/ISO 13849-1
max command speed
3600 cycles/h at <60°C
minimum switching voltage
17 V for signaling circuit
non-overlap time
1.5 ms on de-
energization between NC and NO contact 1.5 ms on excitation between NC and NO contact
energization between NC and NO contact 1.5 ms on excitation between NC and NO contact
coil technology
Built-in bi-directional peak limiting
Poles description
3P
Environment
degree of pollution
3
ip degree of protection
IP20 front face conforming to IEC 60529
operating altitude
0...3000 m
product certificates
CCC
CSA
EAC
UL
KC
DNV-GL
LROS (Lloyds register of shipping)
UKCA
CSA
EAC
UL
KC
DNV-GL
LROS (Lloyds register of shipping)
UKCA
ambient air temperature for operation
-40…60 °C
60…70 °C with current reduction
60…70 °C with current reduction
overvoltage category
III
standards
EN/CEI 60947-4-1
EN/CEI 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
CEI 60335-1
EN/CEI 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
CEI 60335-1
fire resistance
850 °C conforming to IEC 60695-2-1
thermal dissipation
1.2W at 50/60Hz
climatic resistance
conforming to IACS E10 exposure to damp heat
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
insulation resistance
> 10 MΩ for signaling circuit
KKK ja hinna lisateave
LC1D65AKUE Schneider Electric on toode kategooriast Tööstuslikud kontaktorid, mis on mõeldud ettevõtetele. BaltElec tegeleb hulgimüügi ja toodete levitamisega Eestis, Lätis, Leedus ja Soomes.
- Autentne Schneider Electric toode, sertifikaadid ja vastavusdokumendid saadaval.
- Mahupõhine hinnastus – küsi pakkumist suuremate koguste jaoks (võimalik, et sätestame MOQ).
- Kiire tarne Baltikumis ning Soomes; koostöö logistikapartneritega.
- Tehniline tugi ja nõustamine valikul vastavalt Sinu rakendusele.
Hinnainfo: Küsi projektipakkumist. Hind sõltub kogusest, tarne- ja maksetingimustest.
KKK tootele LC1D65AKUE - Schneider Electric
-
Kas teie pakute LC1D65AKUE jaoks mahupõhist hinda?
Jah, projektihinnad on saadaval. Saada meile loend soovitud kogustega (näiteks: LC1D65AKUE, Schneider Electric, 10tk), et koostaksime personaalse pakkumise.
-
Milline on LC1D65AKUE saadavus ja tarne Baltikumis ja Soomes?
Pakume kiiret tarnekäivet Eesti, Läti, Leedu ja Soome suunal. Täpne tarneaeg sõltub kogusest ja partii saadavusest; kinnitame pakkumisega.
-
Kas LC1D65AKUE firmalt Schneider Electric on autentne?
Jah. Müüme ainult Schneider Electric autentseid tooteid, millel on tehase garantii. Vajadusel edastame vastavussertifikaadid.
-
Kas LC1D65AKUE sobib minu projekti?
Aitame sobivuse tõhusalt kinnitada. Edasta palun vajalikud tingimused (pinge, vool, keskkond, standardid) ja võrdleme Schneider Electric tehniliste nõuetega.
-
Kuidas toimub tarne ja arveldamine?
Toimetame logistikapartneriga Eesti, Läti, Leedu ja Soome. Arveldamine vastavalt kokkuleppele; suured partiid hinnastame eraldi.
Hiljuti vaadatud
LC1D65AKUE - Schneider Electric
Kontaktor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 kuni 440V, 65A, 100-250VAC/DC mähis, EverLink
157,83 € KM-ta
195,71 € KM-ga
Tellitav
Teie avaldus on edukalt saadetud
