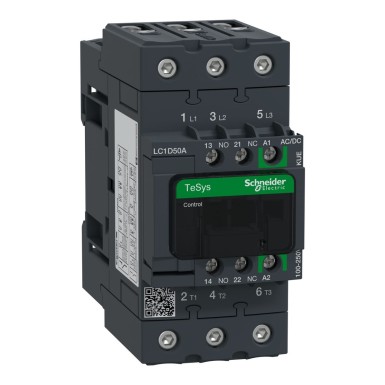

LC1D50AKUE – Schneider Electric
Tellitav
EAN: 3606480988257
116,42 € KM-ta
144,35 € KM-ga
Kontaktor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 kuni 440V, 50A, 100 kuni 250VAC/DC mähis, EverLink - Schneider Electric
SPETSIFIKATSIOONID
Default
Seeria
TeSyS Deca kontaktorid
Main
product range
TeSys D
TeSys Deca
TeSys Deca
Range
TeSys
TeSys Deca
TeSys Deca
[uc] control circuit voltage
100...250 V CA 50/60 Hz
100...250 V CC
100...250 V CC
job category
AC-1
AC-3
AC-3e
AC-3
AC-3e
name of the device
LC1D
switch application
Motor control (AC-3)
Resistive load (AC-1)
Resistive load (AC-1)
type of product or equipment
contactor
[ui] rated insulation voltage
Power circuit: 690 V conforming to IEC 60947-4-1
Signaling circuit: 690 V conforming to IEC 60947-1
Signaling circuit: 690 V conforming to IEC 60947-1
control circuit type
AC/DC at 50/60 Hz AC/DC electronic
engine power hp
3 hp at 115 VAC 60 Hz for single phase motors
7.5 hp at 230/240 VAC 60 Hz for single phase motors
15 hp at 200/208 VAC 60 Hz for 3 phase motors
15 hp at 230/240 VAC 60 Hz for 3-phase motors
40 hp at 460/480 V AC 60 Hz for 3-phase motors
40 hp at 575/600 V AC 60 Hz for 3-phase motors
7.5 hp at 230/240 VAC 60 Hz for single phase motors
15 hp at 200/208 VAC 60 Hz for 3 phase motors
15 hp at 230/240 VAC 60 Hz for 3-phase motors
40 hp at 460/480 V AC 60 Hz for 3-phase motors
40 hp at 575/600 V AC 60 Hz for 3-phase motors
composition of the power pole contacts
3F
motor power kW
15 kW at 220...230 V AC 50 Hz (AC-3)
22 kW at 380...400 V AC 50 Hz (AC-3)
25 kW at 415 V AC 50 Hz (AC-3)
30 kW at 440 V AC 50 Hz (AC-3)
30 kW at 500 V AC 50 Hz (AC-3)
33 kW at 660...690 V AC 50 Hz (AC-3)
15 kW at 220...230 V AC 50 Hz (AC-3e)
22 kW at 380...400 V AC 50 Hz (AC-3e)
25 kW at 415 V AC 50 Hz (AC-3e)
30 kW at 440 V AC 50 Hz (AC-3e)
30 kW at 500 V AC 50 Hz (AC-3e)
33 kW at 660...690 V AC 50 Hz (AC-3e)
22 kW at 380...400 V AC 50 Hz (AC-3)
25 kW at 415 V AC 50 Hz (AC-3)
30 kW at 440 V AC 50 Hz (AC-3)
30 kW at 500 V AC 50 Hz (AC-3)
33 kW at 660...690 V AC 50 Hz (AC-3)
15 kW at 220...230 V AC 50 Hz (AC-3e)
22 kW at 380...400 V AC 50 Hz (AC-3e)
25 kW at 415 V AC 50 Hz (AC-3e)
30 kW at 440 V AC 50 Hz (AC-3e)
30 kW at 500 V AC 50 Hz (AC-3e)
33 kW at 660...690 V AC 50 Hz (AC-3e)
average impedance
1.5 mOhm - Ith 80 A 50 Hz for power circuit
Complementary
[ie] rated operational current
80 A (at <60°C) at <= 440 V AC-1 for power circuit
50 A (at <60°C) at <= 440 V AC-3 for power circuit
50 A (at <60°C ) at <= 440 V AC-3e for power circuit
50 A (at <60°C) at <= 440 V AC-3 for power circuit
50 A (at <60°C ) at <= 440 V AC-3e for power circuit
[ue] rated operational voltage
Power circuit: <= 690 V AC 25...400 Hz
compatibility code
LC1D
[ics] rated service breaking capacity
900 A at 440 V for power circuit conforming to IEC 60947
[icw] rated short-time withstand current
100 A - 1s for signaling circuit
120 A - 500 ms for signaling circuit
140 A - 100 ms for signaling circuit
84 A at <40 °C - 10 min for power circuit
208 A at <40 °C - 1 min for power circuit
400 A at <40°C - 10 s for power circuit
810 A at <40°C - 1s for power circuit
120 A - 500 ms for signaling circuit
140 A - 100 ms for signaling circuit
84 A at <40 °C - 10 min for power circuit
208 A at <40 °C - 1 min for power circuit
400 A at <40°C - 10 s for power circuit
810 A at <40°C - 1s for power circuit
[ith] conventional thermal current
80 A at <60°C) for power circuit
10 A at <60°C) for signaling circuit
10 A at <60°C) for signaling circuit
caliber of the fuse to be associated
10 A gG for signaling circuit conforming to IEC 60947-5-1
100 A gG at <= 690 V type 1 coordination for power circuit
100 A gG at <= 690 V type 2 coordination for power circuit
100 A gG at <= 690 V type 1 coordination for power circuit
100 A gG at <= 690 V type 2 coordination for power circuit
average consumption on hold in w
1.2W at 20°C
Handle front plate colour
122 mm
tightening torque
Remote control: 1.7 Nm - on screw-clamp terminals - with flat screwdriver Ø 6 mm
Remote control: 1.7 Nm - on screw-clamp terminals - with Phillips No. 2 screwdriver
Power circuit: 8 Nm - on connectors EverLink BTR screw connectors - cable 25…35 mm² hexagonal screw head 4 mm
Power circuit: 5 Nm - on EverLink BTR screw connectors - cable 1…25 mm² hexagonal screw head 4 mm
Power circuit: 5 Nm - with pozidriv n screwdriver °2
Remote control: 1.7 Nm - with pozidriv n°2 screwdriver
Remote control: 1.7 Nm - on screw-clamp terminals - with Phillips No. 2 screwdriver
Power circuit: 8 Nm - on connectors EverLink BTR screw connectors - cable 25…35 mm² hexagonal screw head 4 mm
Power circuit: 5 Nm - on EverLink BTR screw connectors - cable 1…25 mm² hexagonal screw head 4 mm
Power circuit: 5 Nm - with pozidriv n screwdriver °2
Remote control: 1.7 Nm - with pozidriv n°2 screwdriver
[uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947
auxiliary contacts
1 "O" + 1 "F"
average fuel consumption when going
1.8VA 50/60Hz (at 20°C)
minimum switching current
5 mA for signaling circuit
product weight
0,997 kg
type of auxiliary contacts
mechanically linked type 1 NC + 1 NO conforming to IEC 60947-5-1
1 NC mirror contact type conforming to IEC 60947-4-1
1 NC mirror contact type conforming to IEC 60947-4-1
electrical life
1.8 Mcycles 42 A AC-3 at Ue <= 440 V
0.5 Mcycles 80 A AC-1 at Ue <= 440 V
1.8 Mcycles 42 A AC-3e at Ue <= 440 V
0.5 Mcycles 80 A AC-1 at Ue <= 440 V
1.8 Mcycles 42 A AC-3e at Ue <= 440 V
connection mode
Remote control: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Remote control: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Remote control: screw clamp terminals 1 1… 4 mm² - cable stiffness: flexible with cable end
Remote control: screw clamp terminals 2 1...2.5 mm² - cable stiffness: flexible with cable end
Remote control: screw clamp terminals 1 1...4 mm² - cable stiffness: solid
Remote control: screw clamp terminals 2 1…4 mm² - cable stiffness: rigid
Power circuit: EverLink 1 BTR screw connectors 1…35 mm² - cable stiffness: flexible without cable end
Power circuit: EverLink 1 BTR screw connectors 1...35 mm² - cable stiffness: flexible with cable end
Power circuit: EverLink 1 BTR screw connectors 1…35 mm² - cable stiffness: rigid
Power circuit: EverLink 2 BTR screw connectors 1…25 mm² - cable stiffness: flexible without cable end
Power circuit: BTR screw connectors EverLink 2 1…25 mm² - cable stiffness: flexible with cable end
Power circuit: BTR screw connectors EverLink 2 1…25 mm² - cable stiffness: rigid
Remote control: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Remote control: screw clamp terminals 1 1… 4 mm² - cable stiffness: flexible with cable end
Remote control: screw clamp terminals 2 1...2.5 mm² - cable stiffness: flexible with cable end
Remote control: screw clamp terminals 1 1...4 mm² - cable stiffness: solid
Remote control: screw clamp terminals 2 1…4 mm² - cable stiffness: rigid
Power circuit: EverLink 1 BTR screw connectors 1…35 mm² - cable stiffness: flexible without cable end
Power circuit: EverLink 1 BTR screw connectors 1...35 mm² - cable stiffness: flexible with cable end
Power circuit: EverLink 1 BTR screw connectors 1…35 mm² - cable stiffness: rigid
Power circuit: EverLink 2 BTR screw connectors 1…25 mm² - cable stiffness: flexible without cable end
Power circuit: BTR screw connectors EverLink 2 1…25 mm² - cable stiffness: flexible with cable end
Power circuit: BTR screw connectors EverLink 2 1…25 mm² - cable stiffness: rigid
control circuit voltage range
<= 0.1 Uc -40…70 °C level drop AC/DC
0.85…1.1 Uc -40…60 °C operational AC/DC
1...1.1 Uc 60…70 °C operational AC/DC
0.85…1.1 Uc -40…60 °C operational AC/DC
1...1.1 Uc 60…70 °C operational AC/DC
mechanical endurance
6 Mcycles
width (w)
55 mm
mechanical robustness
Contactor open vibrations (2 Gn, 5 to 300 Hz)
Contactor closed vibrations (4 Gn, 5 to 300 Hz)
Contactor open shocks (10 Gn for 11 ms)
Contactor closed shocks (15 Gn for 11 ms)
Contactor closed vibrations (4 Gn, 5 to 300 Hz)
Contactor open shocks (10 Gn for 11 ms)
Contactor closed shocks (15 Gn for 11 ms)
Flame retardance
V1 conforming to UL 94
rated rms inrush power
900 A at 440 V for power circuit conforming to IEC 60947
140 A AC for signaling circuit conforming to IEC 60947-5-1
250 A DC for signaling circuit conforming to IEC 60947-5-1
140 A AC for signaling circuit conforming to IEC 60947-5-1
250 A DC for signaling circuit conforming to IEC 60947-5-1
depth
120 mm
mounting bracket
Rail
Platine
Platine
frequency
With
maximum inrush power in w
14W (at 20°C)
signaling circuit frequency
25 to 400 Hz
calling power goes
18VA 50/60Hz (at 20°C)
operating time
From 55 to 65 ms closing
20...120 ms opening (date code >= 17221)
20...80 ms opening (date code >= 18011)
20...120 ms opening (date code >= 17221)
20...80 ms opening (date code >= 18011)
power loss per pole
9,6 W AC-1
3,7 W AC-3
3,7 W AC-3e
3,7 W AC-3
3,7 W AC-3e
security reliability level
B10d = 1369863 contactor cycle with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 contactor cycle with mechanical load conforming to EN/ISO 13849-1
B10d = 20000000 contactor cycle with mechanical load conforming to EN/ISO 13849-1
max command speed
3600 cycles/h at <60°C
minimum switching voltage
17 V for signaling circuit
non-overlap time
1.5 ms on de-
energization between NC and NO contact 1.5 ms on excitation between NC and NO contact
energization between NC and NO contact 1.5 ms on excitation between NC and NO contact
coil technology
Built-in bi-directional peak limiting
Poles description
3P
Environment
degree of pollution
3
ip degree of protection
IP20 front face conforming to IEC 60529
operating altitude
0...3000 m
product certificates
CCC
CSA
EAC
UL
KC
DNV-GL
LROS (Lloyds register of shipping)
UKCA
CSA
EAC
UL
KC
DNV-GL
LROS (Lloyds register of shipping)
UKCA
ambient air temperature for operation
-40…60 °C
60…70 °C with current reduction
60…70 °C with current reduction
overvoltage category
III
standards
EN/CEI 60947-4-1
EN/CEI 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
CEI 60335-1
EN/CEI 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
CEI 60335-1
fire resistance
850 °C conforming to IEC 60695-2-1
thermal dissipation
1.2W at 50/60Hz
climatic resistance
conforming to IACS E10 exposure to damp heat
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
insulation resistance
> 10 MΩ for signaling circuit
KKK ja hinna lisateave
Schneider Electric LC1D50AKUE on lahendus kategooriast Tööstuslikud kontaktorid, mis on mõeldud suurettevõtetele. BaltElec tegeleb hulgimüügi ja distributsiooniga Eestis, Lätis, Leedus ja Soomes.
- Originaal Schneider Electric toode, sertifikaadid ja vastavusdokumendid saadaval.
- Projektihind – küsi pakkumist suuremate koguste jaoks (võimalik, et sätestame MOQ).
- Tõhus ja kiire logistika Baltikumis ning Soomes; koostöö logistikapartneritega.
- Tehniline tugi ja ettepanekud sobivuse kohta vastavalt Sinu rakendusele.
Hind: Küsi eripakkumist. Hind sõltub kogusest, tarne- ja maksetingimustest.
KKK tootele LC1D50AKUE - Schneider Electric
-
Kas BaltElec pakub LC1D50AKUE jaoks hulgihinda?
Jah, mahupõhine hinnastus on saadaval. Saada meile loend soovitud kogustega (näiteks: Schneider Electric, LC1D50AKUE, 5tk), et koostaksime personaalse pakkumise.
-
Milline on LC1D50AKUE saadavus ja tarne Baltikumis ja Soomes?
Pakume kiiret tarnekäivet Eesti, Läti, Leedu ja Soome suunal. Täpne tarneaeg sõltub konfiguratsioonist ja laoseisust; kinnitame pakkumisega.
-
Kas LC1D50AKUE firmalt Schneider Electric on autentne?
Jah. Müüme ainult Schneider Electric autentseid tooteid, millel on tootjagarantii. Vajadusel edastame vastavussertifikaadid.
-
Kas LC1D50AKUE sobib minu projekti?
Aitame sobivuse tõhusalt kinnitada. Edasta palun vajalikud tingimused (pinge, vool, keskkond, standardid) ja võrdleme Schneider Electric tehniliste nõuetega.
-
Kuidas toimub kohaletoimetamine ja arveldamine?
Toimetame kulleriga Eesti, Läti, Leedu ja Soome. Arveldamine vastavalt pakkumisele; suured partiid hinnastame eraldi.
Hiljuti vaadatud
LC1D50AKUE - Schneider Electric
Kontaktor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 kuni 440V, 50A, 100 kuni 250VAC/DC mähis, EverLink
116,42 € KM-ta
144,35 € KM-ga
Tellitav
Teie avaldus on edukalt saadetud
