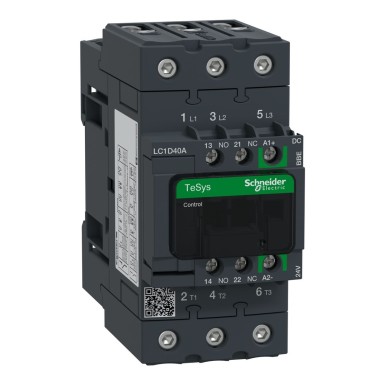

TeSyS Deca kontaktorid
Main
product range
TeSys D
TeSys Deca
Range
TeSys
TeSys Deca
[uc] control circuit voltage
24 V CC
job category
AC-1
AC-3
AC-3e
name of the device
LC1D
switch application
Motor control (AC-3)
Resistive load (AC-1)
type of product or equipment
contactor
[ui] rated insulation voltage
Power circuit: 690 V conforming to IEC 60947-4-1
Signaling circuit: 690 V conforming to IEC 60947-1
control circuit type
DC low DC consumption
engine power hp
3 hp at 115 V AC 60 Hz for single phase motors
5 hp at 230/240 V AC 60 Hz for single phase motors
10 hp at 200/208 V AC 60 Hz for 3 phase motors
10 hp at 230/240 V AC 60 Hz for 3 motor phases
30 hp at 460/480 V AC 60 Hz for 3 motor phases
30 hp at 575/600 V AC 60 Hz for 3 motor phases
composition of the power pole contacts
3F
motor power kW
11 kW at 220...230 V AC 50 Hz (AC-3)
18,5 kW at 380...400 V AC 50 Hz (AC-3)
22 kW at 415 V AC 50 Hz (AC-3)
22 kW at 440 V AC 50 Hz (AC-3)
22 kW at 500 V AC 50 Hz (AC-3)
30 kW at 660...690 V AC 50 Hz (AC-3)
11 kW at 220...230 V CA 50 Hz (AC-3e)
18,5 kW at 380...400 V CA 50 Hz (AC-3e)
22 kW at 415 V CA 50 Hz (AC-3e)
22 kW at 440 V CA 50 Hz ( AC-3e)
22 kW at 500 V AC 50 Hz (AC-3e)
30 kW at 660...690 V AC 50 Hz (AC-3e)
average impedance
1.5 mOhm - Ith 60 A 50 Hz for power circuit
Complementary
[ie] rated operational current
60 A (at <60°C) at <= 440 V AC-1 for power circuit
40 A (at <60°C) at <= 440 V AC-3 for power circuit
40 A (at <60°C ) at <= 440 V AC-3e for power circuit
[ue] rated operational voltage
Power circuit: <= 690 V AC 25...400 Hz
compatibility code
LC1D
[ics] rated service breaking capacity
800 A at 440 V for power circuit conforming to IEC 60947
[icw] rated short-time withstand current
72 A at <40°C - 10 min for
165 A power circuit at <40°C - 1 min for
320 A power circuit at <40°C - 10 s for
720 A power circuit at <40°C - 1s for
100 A power circuit - 1s for
120 A signaling circuit - 500 ms for
140 A signaling circuit - 100 ms for signaling circuit
[ith] conventional thermal current
60 A at <60°C) for power circuit
10 A at <60°C) for signaling circuit
caliber of the fuse to be associated
80 A gG at <= 690 V type 1 coordination for power circuit
80 A gG at <= 690 V type 2 coordination for power circuit
10 A gG for signaling circuit conforming to IEC 60947-5-1
average consumption on hold in w
0.5W at 20°C
Handle front plate colour
122 mm
tightening torque
Remote control: 1.7 Nm - on screw-clamp terminals - with flat screwdriver Ø 6 mm
Remote control: 1.7 Nm - on screw-clamp terminals - with Phillips No. 2 screwdriver
Power circuit: 8 Nm - on connectors EverLink BTR screw connectors - cable 25…35 mm² hexagonal screw head 4 mm
Power circuit: 5 Nm - on EverLink BTR screw connectors - cable 1…25 mm² hexagonal screw head 4 mm
Power circuit: 5 Nm - with pozidriv n screwdriver °2
Remote control: 1.7 Nm - with pozidriv n°2 screwdriver
[uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947
auxiliary contacts
1 "O" + 1 "F"
minimum switching current
5 mA for signaling circuit
product weight
0,992 kg
type of auxiliary contacts
mechanically linked type 1 NC + 1 NO conforming to IEC 60947-5-1
1 NC mirror contact type conforming to IEC 60947-4-1
electrical life
2 Mcycles 35 A AC-3 at Ue <= 440 V
0.7 Mcycles 60 A AC-1 at Ue <= 440 V
2 Mcycles 35 A AC-3e at Ue <= 440 V
connection mode
Power circuit: EverLink 1 BTR screw connectors 1…35 mm² - cable stiffness: rigid
Power circuit: EverLink 2 BTR screw connectors 1…25 mm² - cable stiffness: rigid
Power circuit: EverLink 1 BTR screw connectors 1…35 mm² - cable stiffness: flexible without cable end
Power circuit: EverLink 2 BTR screw connectors 1…25 mm² - cable stiffness: flexible without cable end
Power circuit: EverLink 1 BTR screw connectors 1…35 mm² - stiffness cable cross section: flexible with ferrule
Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: flexible with ferrule
Remote control: screw clamp terminals 1 1…4 mm² - cable stiffness: rigid
Remote control: screw clamp terminals 2 1…4 mm² - cable stiffness: rigid
Remote control: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Remote control: screw clamp terminals 2 1…2, 5 mm² - cable stiffness: flexible with cable end
Remote control: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Remote control: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
control circuit voltage range
<= 0.1 Uc -40…70 °C DC level drop
0.8...1.2 Uc -40…60 °C DC operational
1...1.2 Uc 60…70 °C DC operational
mechanical endurance
6 Mcycles
width (w)
55 mm
mechanical robustness
Contactor open vibrations (2 Gn, 5 to 300 Hz)
Contactor closed vibrations (4 Gn, 5 to 300 Hz)
Contactor open shocks (10 Gn for 11 ms)
Contactor closed shocks (15 Gn for 11 ms)
Flame retardance
V1 conforming to UL 94
rated rms inrush power
800 A at 440 V for power circuit conforming to IEC 60947
140 A AC for signaling circuit conforming to IEC 60947-5-1
250 A DC for signaling circuit conforming to IEC 60947-5-1
depth
120 mm
mounting bracket
Platine
Rail
frequency
With
maximum inrush power in w
11W (at 20°C)
signaling circuit frequency
25 to 400 Hz
operating time
From 55 to 65 ms closing
20...120 ms opening (date code >= 17221)
20...80 ms opening (date code >= 18011)
power loss per pole
5,4 W AC-1
2,4 W AC-3
2,4 W AC-3e
security reliability level
B10d = 1369863 contactor cycle with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 contactor cycle with mechanical load conforming to EN/ISO 13849-1
max command speed
3600 cycles/h at <60°C
minimum switching voltage
17 V for signaling circuit
non-overlap time
1.5 ms on de-
energization between NC and NO contact 1.5 ms on excitation between NC and NO contact
coil technology
Built-in bi-directional peak limiting
Poles description
3P
Environment
degree of pollution
3
ip degree of protection
IP20 front face conforming to IEC 60529
operating altitude
0...3000 m
product certificates
CCC
CSA
EAC
UL
KC
DNV-GL
LROS (Lloyds register of shipping)
UKCA
ambient air temperature for operation
-40…60 °C
60…70 °C with current reduction
overvoltage category
III
standards
EN/CEI 60947-4-1
EN/CEI 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
CEI 60335-1
fire resistance
850 °C conforming to IEC 60695-2-1
thermal dissipation
0.5W
climatic resistance
conforming to IACS E10 exposure to damp heat
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
insulation resistance
> 10 MΩ for signaling circuit
