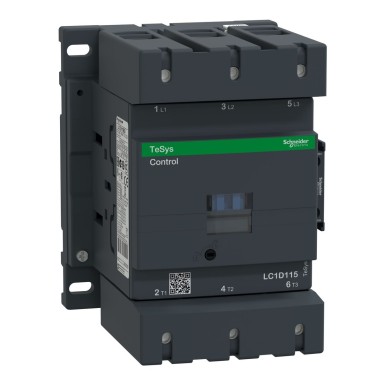

LC1D115BD – Schneider Electric
Tellitav
EAN: 3389110376463
222,29 € KM-ta
275,64 € KM-ga
Kontaktor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 24V DC standard mähis, kruviklambrite klemmid. - Schneider Electric
SPETSIFIKATSIOONID
Default
Seeria
TeSyS Deca kontaktorid
Main
product range
TeSys D
Range
TeSys
[uc] control circuit voltage
24 V CC
job category
AC-4
AC-1
AC-3
AC-3e
AC-1
AC-3
AC-3e
name of the device
LC1D
switch application
Resistive load (AC-1)
Motor control (AC-3)
Motor control (AC-3)
type of product or equipment
contactor
[ui] rated insulation voltage
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Power circuit: 1000 V conforming to IEC 60947-4-1
Signaling circuit: 690 V conforming to IEC 60947-1
Signaling circuit: 600 V CSA Certified
Signaling Circuit: 600V UL Certified
Power circuit: 600 V UL certified
Power circuit: 1000 V conforming to IEC 60947-4-1
Signaling circuit: 690 V conforming to IEC 60947-1
Signaling circuit: 600 V CSA Certified
Signaling Circuit: 600V UL Certified
control circuit type
CC standard
engine power hp
30 hp at 200/208 V AC 50/60 Hz for 3-phase motors
40 hp at 230/240 V AC 50/60 Hz for 3-phase motors
75 hp at 460/480 V AC 50/60 Hz for 3-phase
100 hp motors at 575/600 V AC 50/60 Hz for 3 motor phases
40 hp at 230/240 V AC 50/60 Hz for 3-phase motors
75 hp at 460/480 V AC 50/60 Hz for 3-phase
100 hp motors at 575/600 V AC 50/60 Hz for 3 motor phases
composition of the power pole contacts
3F
motor power kW
30 kW at 220...230 V AC 50/60 Hz (AC-3)
55 kW at 380...400 V AC 50/60 Hz (AC-3)
59 kW at 415...440 V CA 50/ 60 Hz (AC-3)
75 kW at 500 V AC 50/60 Hz (AC-3)
80 kW at 660...690 V AC 50/60 Hz (AC-3)
65 kW at 1000 V CA 50/60 Hz (AC-3)
18,5 kW à 400 V AC 50/60 Hz (AC-4)
30 kW à 220...230 V AC 50/60 Hz (AC-3e)
55 kW à 380...400 V CA 50/60 Hz (AC-3e)
59 kW à 415...440 V CA 50/60 Hz (AC-3e)
75 kW à 500 V CA 50/60 Hz (AC-3e)
80 kW à 660. ..690 V AC 50/60 Hz (AC-3e)
65 kW at 1000 V AC 50/60 Hz (AC-3e)
55 kW at 380...400 V AC 50/60 Hz (AC-3)
59 kW at 415...440 V CA 50/ 60 Hz (AC-3)
75 kW at 500 V AC 50/60 Hz (AC-3)
80 kW at 660...690 V AC 50/60 Hz (AC-3)
65 kW at 1000 V CA 50/60 Hz (AC-3)
18,5 kW à 400 V AC 50/60 Hz (AC-4)
30 kW à 220...230 V AC 50/60 Hz (AC-3e)
55 kW à 380...400 V CA 50/60 Hz (AC-3e)
59 kW à 415...440 V CA 50/60 Hz (AC-3e)
75 kW à 500 V CA 50/60 Hz (AC-3e)
80 kW à 660. ..690 V AC 50/60 Hz (AC-3e)
65 kW at 1000 V AC 50/60 Hz (AC-3e)
average impedance
0.6 mOhm - Ith 200 A 50 Hz for power circuit
Complementary
[ie] rated operational current
200 A (at <60°C) at <= 440 V AC AC-1 for power circuit
115 A (at <60°C) at <= 440 V AC AC-3 for power circuit
115 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
115 A (at <60°C) at <= 440 V AC AC-3 for power circuit
115 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
[ue] rated operational voltage
Power circuit: <= 1000 V AC 25...400 Hz
Power circuit: <= 300 V DC
Power circuit: <= 300 V DC
compatibility code
LC1D
[ics] rated service breaking capacity
1100 A at 440 V for power circuit conforming to IEC 60947
[icw] rated short-time withstand current
250 A at <40°C - 10 min for
550 A power circuit at <40°C - 1 min for
950 A power circuit at <40°C - 10 s for
1100 A power circuit at <40°C - 1s for
100 A power circuit - 1s for
120 A signaling circuit - 500 ms for
140 A signaling circuit - 100 ms for signaling circuit
550 A power circuit at <40°C - 1 min for
950 A power circuit at <40°C - 10 s for
1100 A power circuit at <40°C - 1s for
100 A power circuit - 1s for
120 A signaling circuit - 500 ms for
140 A signaling circuit - 100 ms for signaling circuit
[ith] conventional thermal current
200 A at <60 °C) for power circuit
caliber of the fuse to be associated
250 A gG at <= 690 V type 1 coordination for power circuit
200 A gG at <= 690 V type 2 coordination for power circuit
10 A gG for signaling circuit
200 A gG at <= 690 V type 2 coordination for power circuit
10 A gG for signaling circuit
average consumption on hold in w
2.4…5.1 W at 20 °C
Handle front plate colour
158 mm
tightening torque
Remote control: 1.2 Nm - on screw-clamp terminals - with flat screwdriver Ø 6 mm
Remote control: 1.2 Nm - on screw-clamp terminals - with Phillips No. 2 screwdriver
Power circuit: 12 Nm - on connector hexagonal screw head 4 mm
Remote control: 1.2 Nm - on screw clamp terminals - with pozidriv n°2 screwdriver
Remote control: 1.2 Nm - on screw-clamp terminals - with Phillips No. 2 screwdriver
Power circuit: 12 Nm - on connector hexagonal screw head 4 mm
Remote control: 1.2 Nm - on screw clamp terminals - with pozidriv n°2 screwdriver
[uimp] rated impulse withstand voltage
8 kV conforming to IEC 60947
auxiliary contacts
1 "O" + 1 "F"
minimum switching current
5 mA for signaling circuit
product weight
2,5 kg
type of auxiliary contacts
mechanically linked type 1 NC + 1 NO conforming to IEC 60947-5-1
1 NC mirror contact type conforming to IEC 60947-4-1
1 NC mirror contact type conforming to IEC 60947-4-1
contact compatibility
M10
electrical life
0.8 Mcycles 200 A AC-1 at Ue <= 440 V
0.95 Mcycles 115 A AC-3 at Ue <= 440 V
0.95 Mcycles 115 A AC-3e at Ue <= 440 V
0.95 Mcycles 115 A AC-3 at Ue <= 440 V
0.95 Mcycles 115 A AC-3e at Ue <= 440 V
connection mode
Remote control: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Remote control: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end
Remote control: screw terminal blocks- clamp 1 1…2.5 mm² - cable stiffness: flexible without cable end
Remote control: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end
Remote control: screw clamp terminals 1 1…2, 5 mm² - cable stiffness: solid without cable end
Remote control: screw clamp terminals 2 1...2.5 mm² - cable stiffness: solid without cable end
Power circuit: connector 1 10...120 mm² - cable stiffness: flexible without cable end
Power circuit: connector 2 10…50 mm² - cable stiffness: flexible without cable end
Power circuit: connector 1 10…120 mm² - cable stiffness: flexible with ferrule
Power circuit: connector 2 10…50 mm² - cable stiffness: flexible with ferrule
Power circuit: connector 1 10…120 mm² - cable stiffness : rigid without cable end
Power circuit: connector 2 10…50 mm² - cable stiffness: rigid without cable end
Remote control: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end
Remote control: screw terminal blocks- clamp 1 1…2.5 mm² - cable stiffness: flexible without cable end
Remote control: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end
Remote control: screw clamp terminals 1 1…2, 5 mm² - cable stiffness: solid without cable end
Remote control: screw clamp terminals 2 1...2.5 mm² - cable stiffness: solid without cable end
Power circuit: connector 1 10...120 mm² - cable stiffness: flexible without cable end
Power circuit: connector 2 10…50 mm² - cable stiffness: flexible without cable end
Power circuit: connector 1 10…120 mm² - cable stiffness: flexible with ferrule
Power circuit: connector 2 10…50 mm² - cable stiffness: flexible with ferrule
Power circuit: connector 1 10…120 mm² - cable stiffness : rigid without cable end
Power circuit: connector 2 10…50 mm² - cable stiffness: rigid without cable end
control circuit voltage range
0.75...1.2 Uc -40...55 °C DC operational
0.15...0.4 Uc -40...70 °C DC level loss
1...1.2 Uc 55...70 °C DC operational
0.15...0.4 Uc -40...70 °C DC level loss
1...1.2 Uc 55...70 °C DC operational
mechanical endurance
8 Mcycles
width (w)
120 mm
mechanical robustness
Open contactor vibrations (2 Gn, 5 to 300 Hz)
Closed contactor vibrations (4 Gn, 5 to 300 Hz)
Closed contactor shocks (15 Gn for 11 ms)
Open contactor shocks (6 Gn for 11 ms)
Closed contactor vibrations (4 Gn, 5 to 300 Hz)
Closed contactor shocks (15 Gn for 11 ms)
Open contactor shocks (6 Gn for 11 ms)
Flame retardance
V1 conforming to UL 94
time constant
25 ms
rated rms inrush power
1260 A at 440 V for power circuit conforming to IEC 60947
140 A AC for signaling circuit conforming to IEC 60947-5-1
250 A DC for signaling circuit conforming to IEC 60947-5-1
140 A AC for signaling circuit conforming to IEC 60947-5-1
250 A DC for signaling circuit conforming to IEC 60947-5-1
depth
136 mm
mounting bracket
Platine
Rail
Rail
frequency
With
maximum inrush power in w
270…365 W (at 20 °C)
signaling circuit frequency
25 to 400 Hz
operating time
20…35 ms closing
40…75 ms opening
40…75 ms opening
power loss per pole
24 W AC-1
7,9 W AC-3
7,9 W AC-3e
7,9 W AC-3
7,9 W AC-3e
security reliability level
B10d = 1369863 contactor cycle with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 contactor cycle with mechanical load conforming to EN/ISO 13849-1
B10d = 20000000 contactor cycle with mechanical load conforming to EN/ISO 13849-1
max command speed
1200 cycles/h at <60°C
minimum switching voltage
17 V for signaling circuit
non-overlap time
1.5 ms on de-
energization between NC and NO contact 1.5 ms on excitation between NC and NO contact
energization between NC and NO contact 1.5 ms on excitation between NC and NO contact
coil technology
With integral suppression device
Poles description
3P
Environment
degree of pollution
3
ip degree of protection
IP20 front face conforming to IEC 60529
operating altitude
0...3000 m
product certificates
CCC
UL
BV
CSA
GL
GOST
DNV
LROS (Lloyds register of shipping)
RINA
UKCA
CE
UL
BV
CSA
GL
GOST
DNV
LROS (Lloyds register of shipping)
RINA
UKCA
CE
ambient air temperature for operation
-40…60 °C
60…70 °C with current reduction
60…70 °C with current reduction
overvoltage category
III
standards
CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
CEI 60947-4-1
CEI 60947-5-1
UL 508
EN 60947-4-1
EN 60947-5-1
CEI 60947-4-1
CEI 60947-5-1
UL 508
fire resistance
850 °C conforming to IEC 60695-2-1
climatic resistance
conforming to IACS E10 exposure to damp heat
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
protective treatment
TH conforming to IEC 60068-2-30
insulation resistance
> 10 MΩ for signaling circuit
KKK ja hinna lisateave
LC1D115BD on lahendus kategooriast Tööstuslikud kontaktorid, mis on mõeldud ettevõtetele. BaltElec tegeleb mahupõhise müügi ja toodete levitamisega Eestis, Lätis, Leedus ja Soomes.
- Originaal Schneider Electric toode, vastavusdokumendid päringu alusel.
- Projektihind – küsi pakkumist suuremate koguste jaoks (võimalik, et sätestame MOQ).
- Tõhus ja kiire logistika Baltikumis ning Soomes; koostöö tunnustatud kulleritega.
- Tehniline tugi ja nõustamine valikul vastavalt Sinu rakendusele.
Hind: Küsi projektipakkumist. Hind sõltub kogusest, tarne- ja maksetingimustest.
KKK tootele LC1D115BD - Schneider Electric
-
Kas teie pakute LC1D115BD jaoks hulgihinda?
Jah, mahupõhine hinnastus on saadaval. Saada meile loend soovitud kogustega (näiteks: LC1D115BD, Schneider Electric, 10tk), et koostaksime personaalse pakkumise.
-
Milline on LC1D115BD saadavus ja tarne Baltikumis ja Soomes?
Pakume jõudlust Eesti, Läti, Leedu ja Soome suunal. Täpne tarneaeg sõltub konfiguratsioonist ja laoseisust; kinnitame pakkumisega.
-
Kas LC1D115BD firmalt Schneider Electric on originaaltoode?
Jah. Müüme ainult Schneider Electric autentseid tooteid, millel on tehase garantii. Vajadusel edastame vastavussertifikaadid.
-
Kas LC1D115BD sobib minu projekti?
Aitame sobivuse kiirelt kinnitada. Edasta palun vajalikud parameetrid (pinge, vool, keskkond, standardid) ja võrdleme Schneider Electric tehniliste nõuetega.
-
Kuidas toimub tarne ja arveldamine?
Toimetame kulleriga Eesti, Läti, Leedu ja Soome. Arveldamine vastavalt kokkuleppele; projektid ja suuremad kogused hinnastame eraldi.
