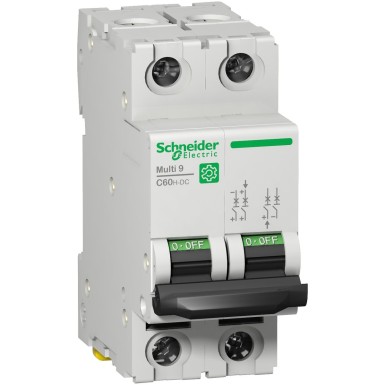

M9U21203 - Minikaitselüliti (MCB), Multi9 C60H-DC, 2P, 3A, C-kõver, 5kA (UL1077), 6kA (IEC/EN 60947-2) - Schneider Electric - Minikaitselüliti (MCB), Multi9 C60H-DC, 2P, 3A, C-kõver, 5kA (UL1077), 6kA (IEC/EN 60947-2) - Schneider Electric - 0
M9U21203 - Minikaitselüliti (MCB), Multi9 C60H-DC, 2P, 3A, C-kõver, 5kA (UL1077), 6kA (IEC/EN 60947-2) - Schneider Electric - Minikaitselüliti (MCB), Multi9 C60H-DC, 2P, 3A, C-kõver, 5kA (UL1077), 6kA (IEC/EN 60947-2) - Schneider Electric - 1
M9U21203 - Minikaitselüliti (MCB), Multi9 C60H-DC, 2P, 3A, C-kõver, 5kA (UL1077), 6kA (IEC/EN 60947-2) - Schneider Electric - Minikaitselüliti (MCB), Multi9 C60H-DC, 2P, 3A, C-kõver, 5kA (UL1077), 6kA (IEC/EN 60947-2) - Schneider Electric - 0
M9U21203 - Minikaitselüliti (MCB), Multi9 C60H-DC, 2P, 3A, C-kõver, 5kA (UL1077), 6kA (IEC/EN 60947-2) - Schneider Electric - Minikaitselüliti (MCB), Multi9 C60H-DC, 2P, 3A, C-kõver, 5kA (UL1077), 6kA (IEC/EN 60947-2) - Schneider Electric - 1

M9U21203 – Schneider Electric

Tellitav
EAN: 3606480741753
28,69 € KM-ta
35,58 € KM-ga
Minikaitselüliti (MCB), Multi9 C60H-DC, 2P, 3A, C-kõver, 5kA (UL1077), 6kA (IEC/EN 60947-2) - Schneider Electric
 Korvis
35,58 €
SPETSIFIKATSIOONID
Additional Information
curve C
Default
Seeria iC60
Main
Range Multi 9
sectioning ability Yes conforming to EN/IEC 60947-2
job category Category A conforming to EN/IEC 60947-2
name of the device C60H-DC
type of product or equipment miniature circuit breaker
Product Name Multi 9 C60H-DC
[ui] rated insulation voltage 500 V DC conforming to EN/IEC 60947-2
number of poles protected 2
type of trigger Thermal-magnetic
Complementary
9 mm pitches 4
[ue] rated operational voltage 220 V CC
440 V CC
500 V CC
application Distribution
[ics] rated service breaking capacity 7.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V DC
4.5 kA 75 % conforming to EN/IEC 60947-2 - 500 V DC
15 kA 75 % conforming to EN/IEC 60947- 2 - 220 V DC
7.5 kA 75 % conforming to GB 14048.2 - 440 V DC
4.5 kA 75 % conforming to GB 14048.2 - 500 V DC
15 kA 75 % conforming to GB 14048.2 - 220 V DC
Handle front plate colour 81 mm
tightening torque 2.5 Nm top or bottom
[uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2
in rated operational current 3 A at 25 °C conforming to EN/IEC 60947-2
product weight 0,128 kg
fully apparent cut Yes
mode d'installation snap-on
electrical life 3000 cycle 250 V CC L/R = 2 ms
6000 cycle 250 V CC
connection mode Tunnel type terminal (top or bottom)1…25 mm² (AWG 18...AWG 4) - rigid braided
Tunnel type terminal (top or bottom)1…16 mm² (AWG 18...AWG 6) - flexible
Terminal cage type (top or bottom)1...16 mm² (AWG 18...AWG 6) - flexible with cable end
Cage type terminal (top or bottom) - 2 cable(s) 1...10 mm² (AWG 18...AWG 8 ) - rigid braided
Cage type terminal (top or bottom) - 2 cable(s) 1...10 mm² (AWG 18...AWG 8) - flexible
Cage type terminal (top or bottom) - 2 cable(s) 1 …10 mm² (AWG 18 to AWG 8) - flexible with cable end
Cage type terminal (top or bottom) - 3 cable(s) 1 mm² (AWG 18) - flexible braided
mechanical endurance 20000 cycle
width (w) 36 mm
Colour Grey
voltage indication Indication ON/OFF
wire stripping length 14mm for top or bottom connection
depth 73 mm
mounting bracket DIN rail
magnetic trip limit 7...10 x In CC
Network type CC
differential protection Without
lockdown forecast Cadenassable
order type Just a little bit
Poles description 2P
Environment
degree of pollution 3 conforming to EN/IEC 60947-2
ip degree of protection IP20 conforming to CEI 60529
IP40 (modular housing) conforming to CEI 60529
product certificates THE
CCC
UR
standards EN/CEI 60947-2
GB 14048.2
UL 1077
relative humidity 95% at 55°C
thermal dissipation 4.4W at 440V - 3A
operating temperature -25…70 °C
storage room temperature -40…85 °C
tropicalization 2 conforming to IEC 60068-2
2 conforming to GB 14048.2
KKK ja hinna lisateave

Võta meiega ühendust

Professionaalne elektriseadmete müük Eestis, Lätis, Leedus ja Soomes. Sertifitseeritud madalpinge komponendid, kaitselülitid, kontaktorid ja tööstusautomaatika lahendused. Sama päeva hinnapakkumised ja kiire tarne Baltikumis ja Soomes

Baltelec
+372 5326 4976

E–R 9:00–17:00

info@baltelec.ee

Vastame 2 tunni jooksul

M9U21203 on lahendus kategooriast Kaitselülitid, mis on mõeldud suurettevõtetele. BaltElec tegeleb mahupõhise müügi ja toodete levitamisega Eestis, Lätis, Leedus ja Soomes.

  • Originaal Schneider Electric toode, sertifikaadid ja vastavusdokumendid saadaval.
  • Projektihind – küsi pakkumist suuremate koguste jaoks (võimalik, et sätestame MOQ).
  • Kiire tarne Baltikumis ning Soomes; koostöö logistikapartneritega.
  • Tehniline tugi ja ettepanekud sobivuse kohta vastavalt Sinu rakendusele.

Hind: Küsi eripakkumist. Hind sõltub kogusest, tarne- ja maksetingimustest.
