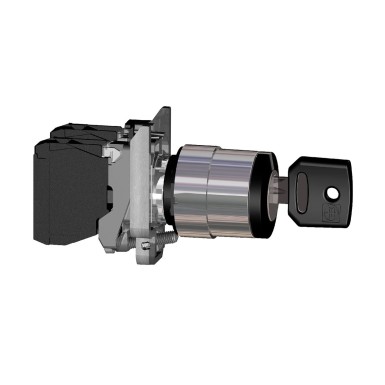

XB4BG21EX - Täielik valikulüliti, Harmony XB4, must klahv Ш22 mm, 2 asendit 90°- stay put, 1 NO, ATEX - Schneider Electric - Täielik valikulüliti, Harmony XB4, must klahv Ш22 mm, 2 asendit 90°- stay put, 1 NO, ATEX - Schneider Electric - 0
XB4BG21EX - Täielik valikulüliti, Harmony XB4, must klahv Ш22 mm, 2 asendit 90°- stay put, 1 NO, ATEX - Schneider Electric - Täielik valikulüliti, Harmony XB4, must klahv Ш22 mm, 2 asendit 90°- stay put, 1 NO, ATEX - Schneider Electric - 0

XB4BG21EX – Schneider Electric

Tellitav
EAN: 3389118030497
71,53 € KM-ta
88,69 € KM-ga
Täielik valikulüliti, Harmony XB4, must klahv Ш22 mm, 2 asendit 90°- stay put, 1 NO, ATEX - Schneider Electric
 Korvis
88,69 €
SPETSIFIKATSIOONID
Default
Seeria Metallmodulaarne XB4
Main
product range Harmony XB4
name of the device XB4
type of product or equipment Complete rotary knob
control unit type maintained position
device mounting Fixing hole - (diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-1
[ui] rated insulation voltage 600 V (pollution degree 3) conforming to EN 60947-1
mounting base material the burdens
sale by indivisible quantity 1
dust area Zone 21 - 22
head type Standard
Complementary
key number 455
[ie] rated operational current 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
[ith] conventional thermal current 10 A conforming to EN/IEC 60947-5-1
contact description 1 "F"
mounting diameter 22 mm
tightening torque 0.8...1.2 Nm conforming to EN 60947-1
[uimp] rated impulse withstand voltage 6 kV conforming to EN 60947-1
marking Ex tb IIIC
recess depth 43 mm
signaling unit head shape round
bezel material Chrome plated metal
electrical life 1000000 cycles AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1: annex C
1000000 cycles AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1: annex C
1000000 cycles AC-15, 4 A at 24 V, operating rate <3600 cyc/h , load factor: 0.5 conforming to EN 60947-5-1: annex C
1000000 cycles DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1: annex C
1000000 cycles DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5- 1: appendix C
fixing center distance >= 30 x 40 mm (support)
resistance to high pressure cleaning 7000000Pa at 55°C, distance: 0.1m
connection mode Screw clamp terminals, <= 2 x 1.5mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1
contact operation Slow-action
contact material Silver alloy (Ag/Ni)
control unit positions 2 position 90°
mechanical endurance 3000000 cycle
electrical reliability Λ < 10exp(-6) at 5 V, 1 mA in healthy environment conforming to EN/IEC 60947-5-4
Λ < 10exp(-8) at 17 V, 5 mA in healthy environment conforming to EN/IEC 60947 -5-4
control unit profile key switch
screw head shape Transversal compatible with Phillips n° 1 screwdriver
Transversal compatible with pozidriv n°1 screwdriver
Perforated compatible with flat Ø 4 mm screwdriver
Perforated compatible with flat Ø 5.5 mm screwdriver
key withdrawal position To the left
positive aperture Without
use of contacts Contacts standards
short circuit protection 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
torque value 0.14 Nm electrical state changed by "F"
Environment
ip degree of protection IP65 conforming to IEC 60529
product certificates INERIS 04ATEX9004U
operating ambient temperature -20…60 °C
overvoltage category I conforming to IEC 60536
standards EN 60079-0:2009
EN 60079-31:2009
EN 61000-6-2
IEC 60079-0:2007
IEC 60079-31:2008
shock resistance ik IK06 conforming to IEC 50102
storage room temperature -40…70 °C
mechanical shock resistance 30 gn (duration = 18 ms) for acceleration on 1/2 sinusoid conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for acceleration on 1/2 sinusoid conforming to IEC 60068-2-27
European regulation 94/9/CE - directive ATEX
vibration resistance 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6
resistance to nema environment NO 13
NO 4X
protective treatment TH
