XUX9ARCNT16S40 – Telemecanique
Tellitav140,05 € KM-ta
173,66 € KM-ga

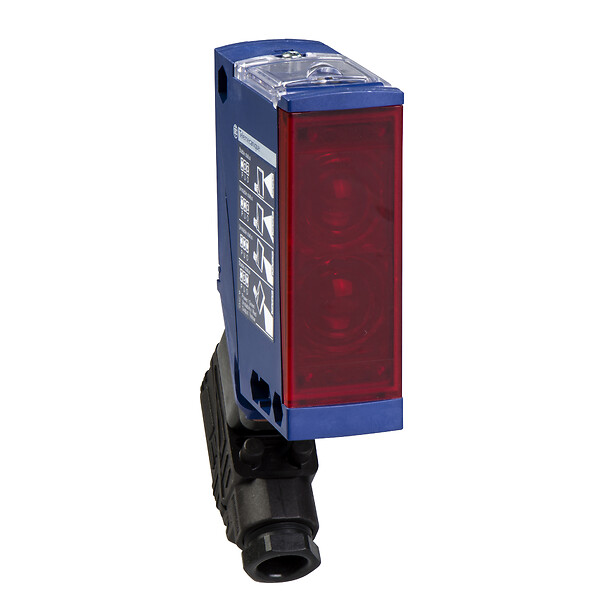

Photoelectric sensors XU, XUX, polarised, Sn 11 m, 24...240VAC/DC, terminals - Telemecanique
Photoelectric sensors XU, XUX, polarised, Sn 11 m, 24...240VAC/DC, terminals
SPETSIFIKATSIOONID
Main
product specific application
Not applicable
Series name
General purpose single mode
sensor name
XUX
detection system
Polarised reflex
electronic sensor type
Photo-electric sensor
Complementary
[sn] nominal sensing distance
11-11 m polarised reflex need reflector XUZC50
[us] rated supply voltage
24...240 V AC/DC
Current consumption
<= 35 mA no-load
maximum voltage drop
<1.5 V (closed state)
cable entry
1 entry for M16 x 1.5 cable gland, cable outer diameter: 7-10 mm
Output type
Relay
Discrete output function
1 C/O
Enclosure material
PBT
lens material
PMMA
Material
Plastic
switching frequency
20 Hz
switching capacity in ma
3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V), 0.5 A (cos φ = 0.4 for 0.5 million cycles at 1 operating cycle per second at 250 V)
electrical connection
Screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor
maximum power consumption in w
-
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Setting-up
Sensitivity adjustment
Sensor design
Compact 92 x 71
Status led
1 LED (yellow) for output state, 1 LED (red) for instability, 1 LED (green) for supply
Wiring technique
5-wire
Type of output signal
Discrete
Supply circuit type
AC/DC
Environment
Emission
Red polarised reflex
ip degree of protection
IP67 double insulation conforming to IEC 60529, IP65 double insulation conforming to IEC 60529
Range of product
Telemecanique Photoelectric sensors XU
vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
