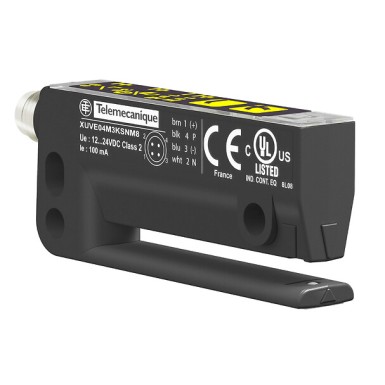

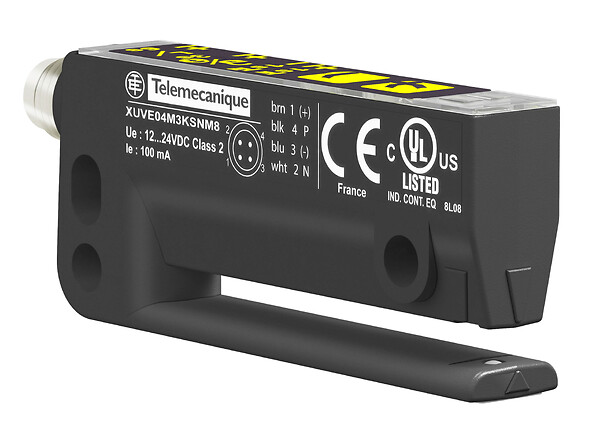

XUVE04M3PSNM8 – Telemecanique
Tellitav93,17 € KM-ta
115,53 € KM-ga
Photoelectric sensors XU, photoelec sensor label fork 40x3, 12...24 V DC, PNP NO/NC connect M8 - Telemecanique
Photoelectric sensors XU, photoelec sensor label fork 40x3, 12...24 V DC, PNP NO/NC connect M8.
This product is compatible with XZCP0941L2, XZCP0941L5, XZCP1041L2, XZCP1041L5
SPETSIFIKATSIOONID
Main
product specific application
Detection of labels
Series name
Application packaging
sensor name
XUV
detection system
Thru beam
electronic sensor type
Photo-electric sensor
Complementary
Accuracy
+/- 0.05 mm at 150 m/min
[us] rated supply voltage
12...24 V DC with reverse polarity protection
maximum voltage drop
-
Output type
Solid state
Discrete output function
1 NO or 1 NC programmable
Enclosure material
Polyamide
lens material
PC
Material
PA (polyamide) 12
Discrete output type
PNP
switching capacity in ma
<= 100 mA (overload and short-circuit protection)
type of setting
With
electrical connection
1 male connector M8, 4 pins
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Setting-up
Numeric potentiometer
Sensor design
Fork
Status led
Output state: 1 LED (yellow), adjustment mode and keypad locking: 1 LED (red)
Wiring technique
4-wire
Type of output signal
Discrete
Supply circuit type
DC
Environment
Emission
Infrared
ip degree of protection
IP65 conforming to IEC 60529
Range of product
Telemecanique Photoelectric sensors XU
vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
