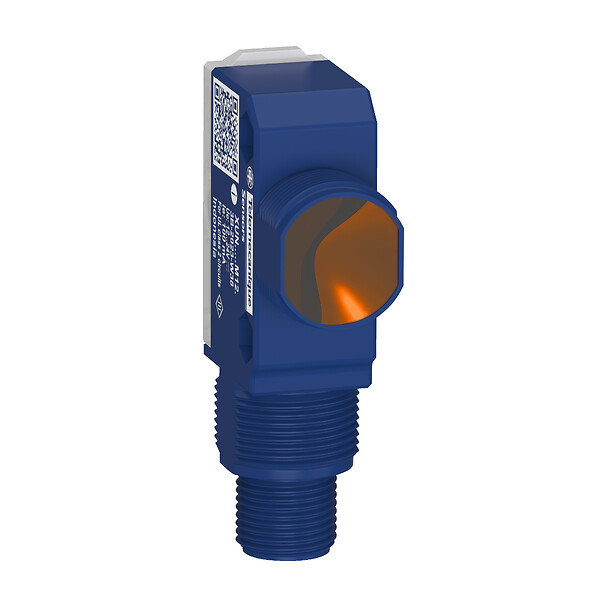

XUN6APYNM12 – Telemecanique
Tellitav61,60 € KM-ta
76,38 € KM-ga
Photoelectric sensors XU, Photo electric Sensor, Hybrid, Diffuse medium, Smax 0.6 m, IO-Link, Connector M12 - Telemecanique
Photoelectric sensors XU, Photo electric Sensor, Hybrid, Diffuse medium, Smax 0.6 m, IO-Link, Connector M12
SPETSIFIKATSIOONID
Main
Series name
General purpose single mode
sensor name
XUN
detection system
Diffuse
electronic sensor type
Photo-electric sensor
Complementary
[sn] nominal sensing distance
0.42-0.42 m diffuse
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
< 30 mA no load
maximum voltage drop
<2 V (closed state)no-load
Output type
Discrete
Discrete output function
1 NO or 1 NC programmable
Enclosure material
PC/PBT
lens material
PMMA
Material
Plastic
switching frequency
1000 Hz
Discrete output type
PNP/NPN autodetectIOLINK
switching capacity in ma
<= 100 mA (overload and short-circuit protection)
electrical connection
1 male connector M12, 4 pins
Shock resistance
30 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27
Setting-up
Sensitivity by potentiometersensitivity by IO-Link
Sensor design
Compact 32 x 52
Status led
1 LED (green) for supply on/stability, 1 LED (orange) for output state
Wiring technique
4 wires
Type of output signal
Discrete
Supply circuit type
DC
Environment
Emission
Red LED diffuse, red laser
ip degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050-9
Range of product
Telemecanique Photoelectric sensors XU
vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz)for every axis conforming to IEC 60068-2-6
