XUN0AKSNM12T – Telemecanique
Tellitav90,03 € KM-ta
111,64 € KM-ga

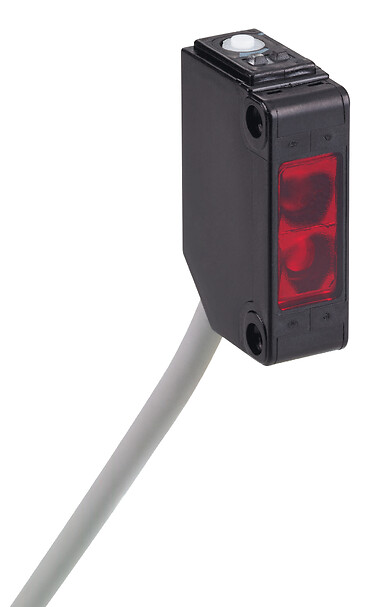

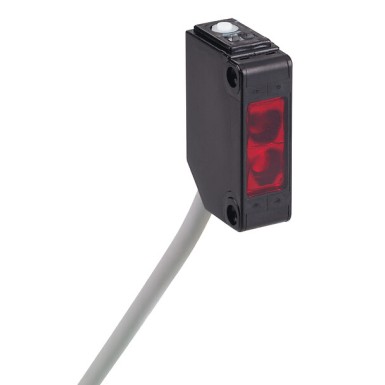

Photoelectric sensors XU, 24 VDC, Transmitter - Telemecanique
Photoelectric sensors XU, 24 VDC, Transmitter
SPETSIFIKATSIOONID
Main
Series name
General purpose multimode
sensor name
XUN
detection system
Multimode
electronic sensor type
Photo-electric sensor
Complementary
[us] rated supply voltage
12...24 V DC with reverse polarity protection
maximum voltage drop
<1.5 V (closed state)
Output type
Solid state
Enclosure material
PBT
lens material
PMMA
Material
Plastic
switching frequency
250 Hz
switching capacity in ma
<= 100 mA (overload and short-circuit protection)
electrical connection
1 male connector M12, 4 pins
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Setting-up
Self teaching
Sensor design
American form
Type of output signal
Discrete
Supply circuit type
DC
Environment
ip degree of protection
IP65 double insulation conforming to IEC 60529, IP67 double insulation conforming to IEC 60529
Range of product
Telemecanique Photoelectric sensors XU
vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
