XUM9ANXBL2 – Telemecanique
Tellitav28,46 € KM-ta
35,30 € KM-ga

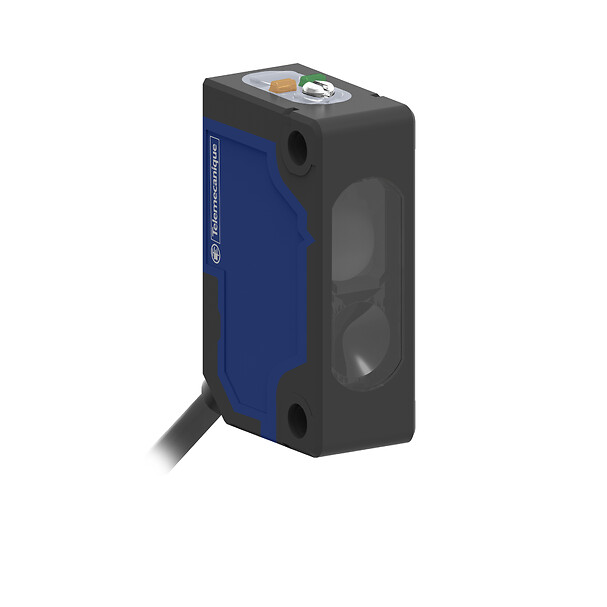

Photoelectric sensors XU, photo electric sensor, miniature, polarised, Smax=8 m, NPN, cable 2 m - Telemecanique
Photoelectric sensors XU, photo electric sensor, miniature, polarised, Smax=8 m, NPN, cable 2 m.
This product is compatible with XUZA50, XUZASM02, XUZASM03, XUZASM04, XUZASM05, XUZC08, XUZC100, XUZC24, XUZC50
SPETSIFIKATSIOONID
Main
Series name
General purpose single mode
sensor name
XUM
detection system
Polarised reflex
electronic sensor type
Photo-electric sensor
Complementary
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
20 mA no-load
maximum voltage drop
<2 V
Output type
Solid state
Discrete output function
1 NO or 1 NC programmable
Enclosure material
PBT
lens material
PMMA
Material
Plastic
switching frequency
1000 Hz
Discrete output type
NPN
switching capacity in ma
<= 100 mA with overload and short-circuit protection
electrical connection
Cable
Shock resistance
100 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27
Setting-up
Sensitivity by potentiometer
Sensor design
Miniature
Status led
-
Wiring technique
3-wire
Type of output signal
Discrete
Supply circuit type
DC
Environment
Emission
-
ip degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Range of product
Telemecanique Photoelectric sensors XU
vibration resistance
9 gn, amplitude = +/- 1.5 mm (f = 10-500 Hz)for every axis conforming to IEC 60068-2-6
