XUBTAPSNM12 – Telemecanique
Tellitav124,29 € KM-ta
154,12 € KM-ga

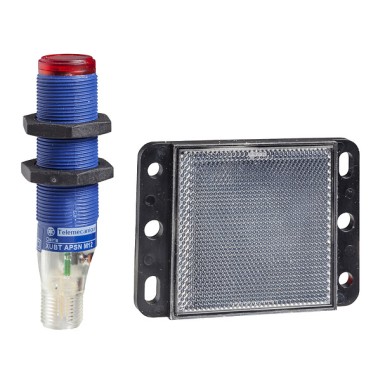

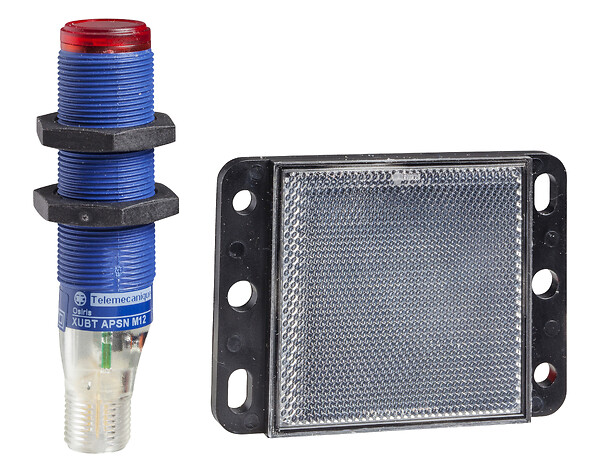

Photoelectric sensors XU, XUBT, polarised, Sn 1.4 m, 12...24 VDC, M12 - Telemecanique
Photoelectric sensors XU, XUBT, polarised, Sn 1.4 m, 12...24 VDC, M12.
This product is compatible with XUZ2001, XUZ2003, XUZA118, XUZA218, XUZB2003, XUZC50, XUZC50HP
SPETSIFIKATSIOONID
Main
product specific application
Detection of transparent object
Series name
Application packaging
sensor name
XUBT
detection system
Reflex
electronic sensor type
Photo-electric sensor
Complementary
Kit composition
Reflector XUZC50HPsensor
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
45 mA no-load
Output type
Solid state
Discrete output function
1 NO or 1 NC programmable
Enclosure material
PBT
lens material
PMMA
Material
Plastic
Discrete output type
PNP
switching capacity in ma
100 mA (overload and short-circuit protection)
electrical connection
1 male connector M12, 4 pins
Sensing range
> 1...5 m
Spot diameter
37 mm
Voltage drop
<1.5 V (closed state)
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Sensor design
Cylindrical M18
Status led
-
Wiring technique
3-wire
Type of output signal
Discrete
Supply circuit type
DC
Environment
Emission
Coaxial polarised red reflex
ip degree of protection
IP65 conforming to IEC 60529 (double insulation), IP67 conforming to IEC 60529 (double insulation), IP69K conforming to DIN 40050 (double insulation)
Range of product
Telemecanique Photoelectric sensors XU
vibration resistance
7 gn, amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
