XUB2ANXWM12 – Telemecanique

Tellitav

53,90 € KM-ta

66,84 € KM-ga

Photoelectric sensors XU, Photo electric sensor, Cylindrical, Plastic, Angled, Thru-beam, System, Smax 30m, NPN, Connector M12 - Telemecanique

Korvis

66,84 €

Photoelectric sensors XU, Photo electric sensor, Cylindrical, Plastic, Angled, Thru-beam, System, Smax 30m, NPN, Connector M12

SPETSIFIKATSIOONID

Main

Series name General purpose single mode

sensor name XUB

detection system Thru beam

electronic sensor type Photo-electric sensor

Complementary

[sn] nominal sensing distance 12-12 m thru beam

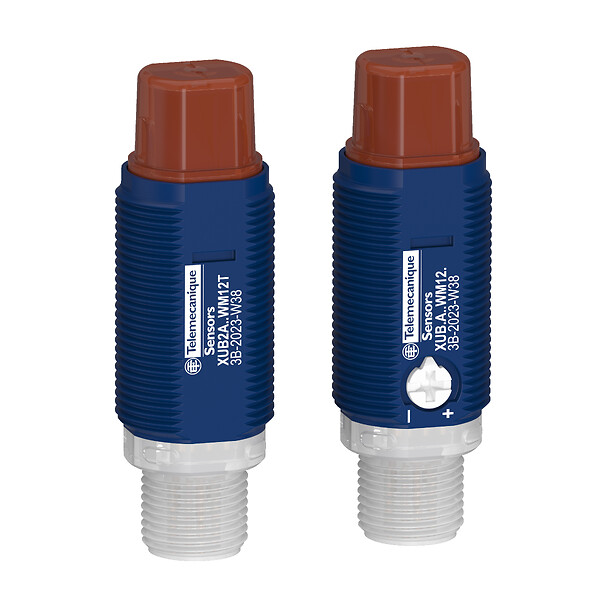

Kit composition Transmitter XUB2AKXWM12T + receiver XUB2ANXWM12R

[us] rated supply voltage 12...24 V DC with reverse polarity protection

Current consumption < 20 mA no load

maximum voltage drop <2 V (closed state)no-load

Output type Discrete

Discrete output function 1 NO or 1 NC programmable

Enclosure material PC/PBT

lens material PMMA

Material Plastic

switching frequency 1000 Hz

Discrete output type NPN

switching capacity in ma <= 100 mA (overload and short-circuit protection)

electrical connection 1 male connector M12, 4 pins

Line of sight type 90° lateral

Shock resistance 30 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27

Setting-up Sensitivity by potentiometer

Sensor design Cylindrical M18

Status led 1 LED (green) for transmitter/supply on, 1 LED (green) for receiver/supply on/stability, 1 LED (orange) for receiver/output

Wiring technique 4 wires

Type of output signal Discrete

Supply circuit type DC

Environment

Emission Red LED thru beam

ip degree of protection IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050-9

Range of product Telemecanique Photoelectric sensors XU

vibration resistance 7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz)for every axis conforming to IEC 60068-2-6
