XU2N18PP9AAS27 – Telemecanique
Tellitav159,18 € KM-ta
197,39 € KM-ga

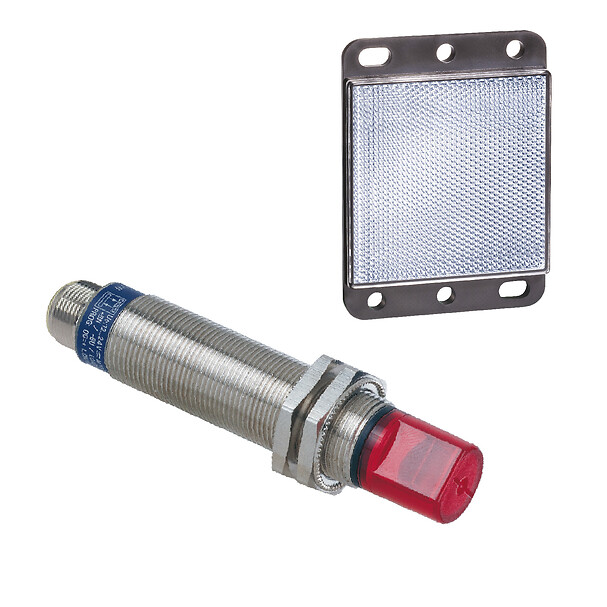

Photoelectric sensors XU, XU2, thru beam, 12...24 VDC, M18 - Telemecanique
Photoelectric sensors XU, XU2, thru beam, 12...24 VDC, M18
SPETSIFIKATSIOONID
Main
Series name
General purpose single mode
sensor name
XU2
electronic sensor type
Photo-electric sensor
Complementary
Add on output
Without
[us] rated supply voltage
12...24 V DC with reverse polarity protection
maximum voltage drop
<1.5 V (closed state)
Output type
Solid state
Enclosure material
Stainless steel : 304 CU
lens material
PMMA
electrical connection
1 male connector M18
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Setting-up
Without sensitivity adjustment
Sensor design
Cylindrical M18
Status led
1 LED (green) for supply on, 1 LED (yellow) for output state
Environment
Emission
Infrared thru beam
ip degree of protection
IP67 conforming to IEC 60529
Range of product
Telemecanique Photoelectric sensors XU
vibration resistance
25 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
