XT530B1FBL2 – Telemecanique
Tellitav58,21 € KM-ta
72,18 € KM-ga

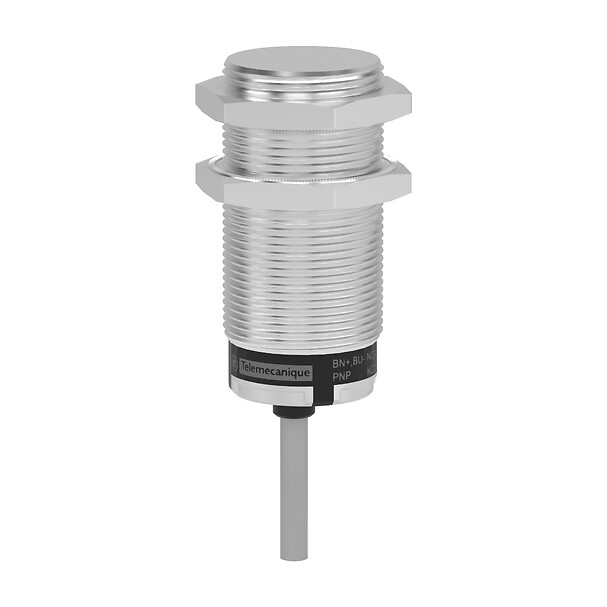

Capacitive proximity sensors XT, cylindrical M30, brass, 2-wire, Sn 10 mm, cable 2 m, 1 NC - Telemecanique
Capacitive proximity sensors XT, cylindrical M30, brass, 2-wire, Sn 10 mm, cable 2 m, 1 NC.
This product is compatible with XTAZ30, XUZE04, XXZ30
SPETSIFIKATSIOONID
Main
Body type
Fixed
product specific application
Detection of insulated or conductive materials
sensor name
XT5
Complementary
electrical insulation class
Class I conforming to IEC 61140
iso thread
M30 x 1.5
Product certifications
cULus
[us] rated supply voltage
24...240 V AC 50...60 Hz
Current consumption
< 3 mA
detection face
Frontal
marking
CE
Discrete output function
1 NC
Enclosure material
Nickel plated brass
Detector flush mounting acceptance
Flush mountable
Differential travel
< 0.2 x Sr
Material
Metal
switching frequency
<= 10 Hz
repeat accuracy
< 0.1 x Sr
electrical connection
Cable
output circuit type
AC
Sensor type
Capacitive proximity sensor
Voltage drop
<10 V (closed)
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Setting-up
Sensitivity by potentiometer
Sensor design
Cylindrical M30
Status led
Output state indication: 1 LED (yellow), power status: 1 LED (green)
Wiring technique
2-wire
Size
64 mm
Type of output signal
Discrete
Wire insulation material
PVC
Environment
ip degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
standards
UL 61010-1IEC 60947-5-2
vibration resistance
10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
