XT230A1PAL2 – Telemecanique
Tellitav48,11 € KM-ta
59,66 € KM-ga

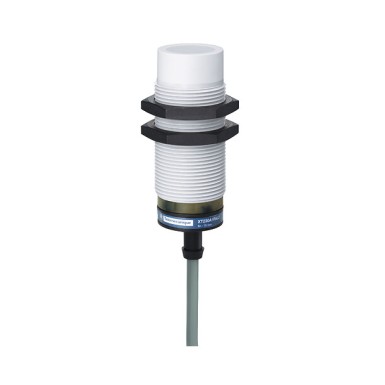

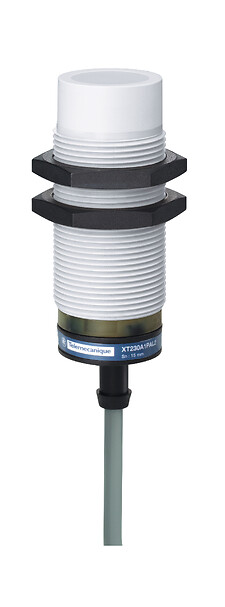

Capacitive proximity sensors XT, cylindrical M30, plastic, Sn 15 mm, cable 2 m - Telemecanique
Capacitive proximity sensors XT, cylindrical M30, plastic, Sn 15 mm, cable 2 m.
This product is compatible with XTAZ30, XXZ30
SPETSIFIKATSIOONID
Main
Body type
Fixed
product specific application
Detection of insulated or conductive materials
sensor name
XT2
Complementary
iso thread
M30 x 1.5
Product certifications
cULus
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
< 15 mA
detection face
Frontal
marking
CE
Discrete output function
1 NO
Enclosure material
Plastic
Detector flush mounting acceptance
Non flush mountable
Differential travel
< 1...20 % Sr
Material
Plastic
switching frequency
<= 150 Hz
repeat accuracy
< 5 % Sr
electrical connection
Cable
output circuit type
DC
Sensor type
Capacitive proximity sensor
Voltage drop
<2.5 V (closed)
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Setting-up
Sensitivity by potentiometer
Sensor design
Cylindrical M30
Status led
Output state indication: 1 LED (yellow)
Wiring technique
3-wire
Size
74.5 mm
Type of output signal
Discrete
Wire insulation material
PVC
Environment
ip degree of protection
IP67 double insulation conforming to IEC 60529
standards
IEC 60947-5-2
vibration resistance
10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
