XMLP001GC21F - Electronic pressure sensors, Pressure sensors XM - Telemecanique - Electronic pressure sensors, Pressure sensors XM, transmitter 1 bar, 4...20 mA, G1/4 A male, FPM, DIN - Telemecanique - 0
XMLP001GC21F - Electronic pressure sensors, Pressure sensors XM - Telemecanique - Electronic pressure sensors, Pressure sensors XM, transmitter 1 bar, 4...20 mA, G1/4 A male, FPM, DIN - Telemecanique - 0

XMLP001GC21F – Telemecanique

Tellitav
115,87 € KM-ta
143,68 € KM-ga

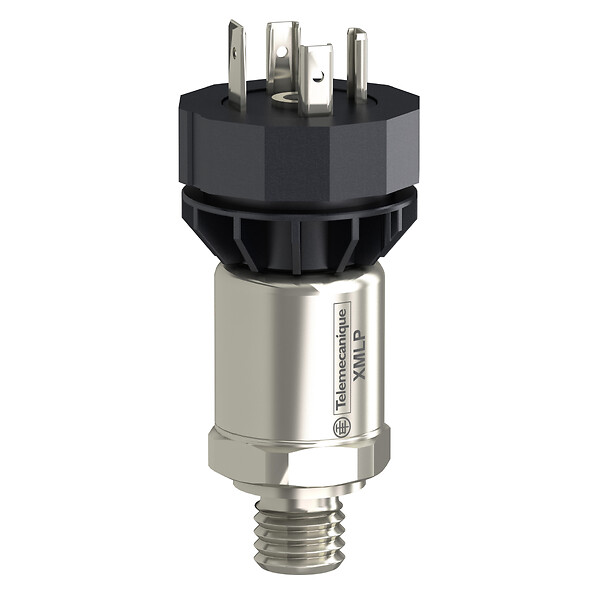

Electronic pressure sensors, Pressure sensors XM, transmitter 1 bar, 4...20 mA, G1/4 A male, FPM, DIN - Telemecanique
 Korvis
143,68 €
Electronic pressure sensors, Pressure sensors XM, transmitter 1 bar, 4...20 mA, G1/4 A male, FPM, DIN. This product is compatible with XMLEZ001, XMLZL016, XMLZL017, XZCC12FCM40B, XZCC12FDM40B, XZCP1141L2, XZCP1241L2
SPETSIFIKATSIOONID
Main
Fluid connection type G 1/4A (male) conforming to DIN 3852-E
controlled fluid Fresh water (0-125 °C), air (-15-125 °C), gas (-15-125 °C), hydraulic oil (-15-125 °C)
Type of packing Individual
pressure sensor name XMLP
pressure sensor type Pressure transmitter
Complementary
Accuracy 0.1 % of the measuring range
local display Without
Product certifications CERCMcULus
Product or component type Electronic pressure sensors
[us] rated supply voltage 12...24 V DC SELV (voltage limits: 7-33 V)
Analogue output function -
Current consumption < 23 mA
Quantity per set Set of 1
Drift of the sensitivity +/- 0,02 % of measuring range/°K
Drift of the zero point +/- 0,02 % of measuring range/°K
Electrical circuit type Control circuit
measurement accuracy +/- 0,5 % de la plage de mesure
Operating position Any position
repeat accuracy +/- 0,25 % de la plage de mesure
Materials in contact with fluid Fluorocarbon FPMceramicstainless steel AISI 316L
electrical connection -
Shock resistance 100 gn for 11 ms conforming to IEC 60068-2-27
Response time on output -
Type of output signal Analogue
Protection type Load short-circuitreverse polarity
Environment
ip degree of protection IP65 conforming to IEC 60529
Range of product Telemecanique Pressure sensors XM
electromagnetic compatibility -
standards IEC 61326-2-3NSF ANSI 61
vibration resistance 20 gn (f = 10-2000 Hz) conforming to IEC 60068-2-6
