XGCS49LB201 - Telemecanique ⚡

XGCS49LB201 - Panel mounting smart antenna with lights, Radio frequency identification XG - Telemecanique - Panel mounting smart antenna with lights, Radio frequency identification XG, pilot - Telemecanique - 0

XGCS49LB201 – Telemecanique

Tellitav

307,66 € KM-ta

381,50 € KM-ga

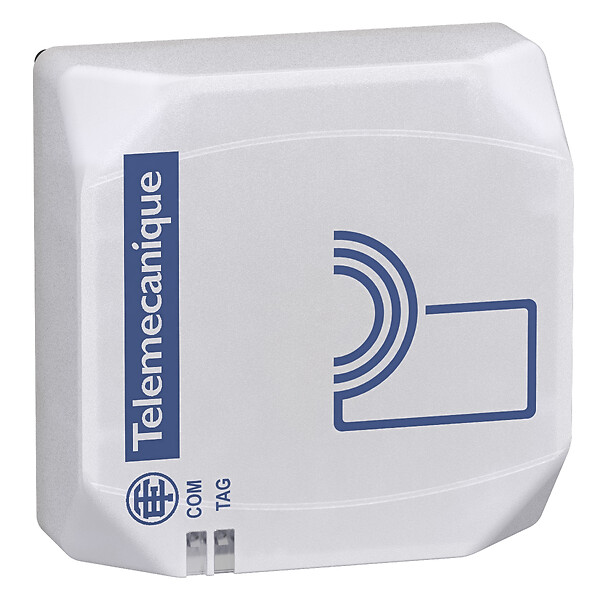

Panel mounting smart antenna with lights, Radio frequency identification XG, pilot - Telemecanique

Korvis

381,50 €

Panel mounting smart antenna with lights, Radio frequency identification XG, pilot. This product is compatible with XGHB90E340, XGHB90E341, XGHBPB3345, XGSZCNF01, ZB5AZ905

SPETSIFIKATSIOONID

Main

design Diameter 22 mounting

Complementary

product compatibility RFID microchip Texas (Tag-it HFI)RFID microchip Fujitsu (MB89R118 - MB89R119)RFID microchip STM (CRIX4K)RFID microchip NXP (SL2, SL1, Ultralight, Std 1K/4K, Desfire)RFID microchip INSIDE (micropass)RFID microchip Microelectronic (EM4135)

Outer dimension 40 x 40 x 40 mm

Product certifications UL, FCC

Communication port support RS485 non isolated

Product or component type Panel mounting smart antenna with lights

tightening torque < 2.2 N.m

[us] rated supply voltage 24 V DC conforming to Protective Extra Low Voltage

Current consumption < 60 mA

marking CE

Ik degree of protection IK02 conforming to IEC 62262

communication port protocol Modbus RTU

electrical connection 5 pin(s)1 male connector M12

Shock resistance 30 gn for 11 ms conforming to IEC 60068-2-27

Status led Communication network: 1 LED (dual colour), RFID communication: 1 LED (dual colour), multi-colour LED: 2 LEDs (multi-colour)

Transmission rate 9600 bauds...115200 bauds (automatic detection)

Environment

ip degree of protection IP69K front face: conforming to IEC 60529, IP65 back: conforming to IEC 60529

Range of product Telemecanique Radio frequency identification XG

electromagnetic compatibility Electrostatic discharge immunity test: (contact discharge), 3, 6 kV, conforming to IEC 61000-4-2, electrostatic discharge immunity test: (air discharge), 3, 8 kV, conforming to IEC 61000-4-2, electrical fast transient/burst immunity test: (signal ports), 3, 1 kV, conforming to IEC 61000-4-4, electrical fast transient/burst immunity test: (power ports), 3, 2 kV, conforming to IEC 61000-4-4, susceptibility to electromagnetic fields: , 3, 10 V/m, conforming to IEC 61000-4-3, 1.2/50 µs shock waves immunity test: , 3, 10 kV, conforming to IEC 61000-4-5, conducted RF disturbances: , 3, 10 V, conforming to IEC 61000-4-6, magnetic field at power frequency: , 4, 30 A/m, conforming to IEC 61000-4-8

standards ETSI EN 301 489-3ETSI EN 301 489-1ETSI EN 300 330-1ETSI EN 300 330-2

vibration resistance 2 mm (f= 5-29.5 Hz) conforming to IEC 60068-2-6, 7 gn (f= 29.5-150 Hz) conforming to IEC 60068-2-6
