XGCS4901201 - Telemecanique ⚡

XGCS4901201 - Compact smart antenna, Radio frequency identification XG, RFID 13.56 MHz - Telemecanique - Compact smart antenna, Radio frequency identification XG, RFID 13.56 MHz, flat form 40x40x15, M12, cable 0.2 m - Telemecanique - 0

XGCS4901201 – Telemecanique

Tellitav

430,42 € KM-ta

533,72 € KM-ga

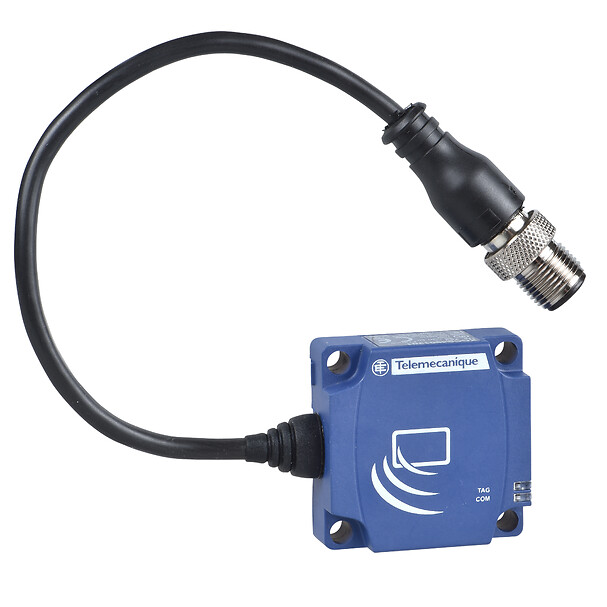

Compact smart antenna, Radio frequency identification XG, RFID 13.56 MHz, flat form 40x40x15, M12, cable 0.2 m - Telemecanique

Korvis

533,72 €

Compact smart antenna, Radio frequency identification XG, RFID 13.56 MHz, flat form 40x40x15, M12, cable 0.2 m. This product is compatible with XGHB123345, XGHB211345, XGHB221346, XGHB320246, XGHB320345, XGHB440245, XGHB440845, XGHB441645, XGHB443245, XGHB520246, XGHB90E340

SPETSIFIKATSIOONID

Main

design Flat form 40 x 40 x 15

Complementary

product compatibility RFID microchip Texas (Tag-it HFI)RFID microchip Fujitsu (MB89R118 - MB89R119)RFID microchip STM (CRIX4K)RFID microchip NXP (SL2, SL1, Ultralight, Std 1K/4K, Desfire)RFID microchip INSIDE (micropass)RFID microchip Microelectronic (EM4135)

Outer dimension 40 x 40 x 15 mm

Product certifications UL, FCC

Communication port support RS485

Product or component type Compact smart antenna

tightening torque < 1 N.m

[us] rated supply voltage 24 V DC conforming to Protective Extra Low Voltage

Current consumption < 60 mA

marking CE

Ik degree of protection IK02 conforming to IEC 62262

communication port protocol Modbus RTUUni-Telway

electrical connection 5 pin(s)male remote connector M12, shielded cable cable 0.2 m

Shock resistance 30 gn for 11 ms conforming to IEC 60068-2-27

Status led Communication network: 1 LED (dual colour), RFID communication: 1 LED (dual colour)

Transmission rate 9600 bauds...115200 bauds (automatic detection)

Environment

ip degree of protection IP65 conforming to IEC 60529

Range of product Telemecanique Radio frequency identification XG

electromagnetic compatibility Electrostatic discharge immunity test: (contact discharge), 3, 6 kV, conforming to IEC 61000-4-2, electrostatic discharge immunity test: (air discharge), 3, 8 kV, conforming to IEC 61000-4-2, electrical fast transient/burst immunity test: (signal ports), 3, 1 kV, conforming to IEC 61000-4-4, electrical fast transient/burst immunity test: (power ports), 3, 2 kV, conforming to IEC 61000-4-4, susceptibility to electromagnetic fields: , 3, 10 V/m, conforming to IEC 61000-4-3, 1.2/50 µs shock waves immunity test: , 3, 10 kV, conforming to IEC 61000-4-5, conducted RF disturbances: , 3, 10 V, conforming to IEC 61000-4-6, magnetic field at power frequency: , 4, 30 A/m, conforming to IEC 61000-4-8

standards ETSI EN 301 489-3ETSI EN 301 489-1ETSI EN 300 330-1ETSI EN 300 330-2

vibration resistance 2 mm (f= 5-29.5 Hz) conforming to IEC 60068-2-6, 7 gn (f= 29.5-150 Hz) conforming to IEC 60068-2-6
