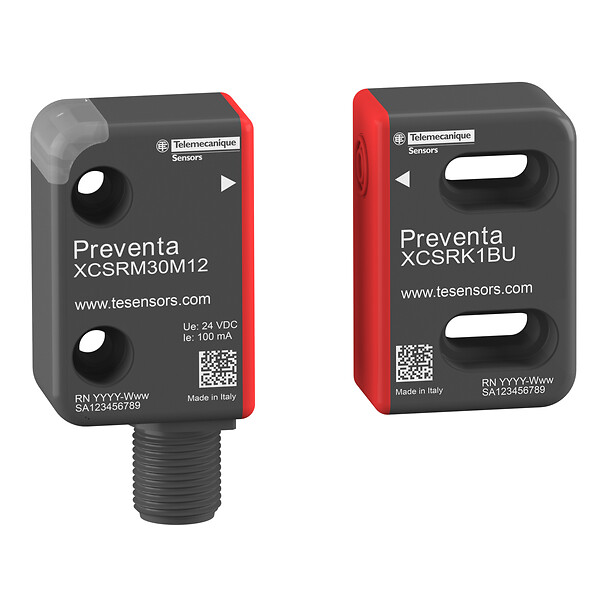

Miniature Safety RFID switch, 3-time pairing enabled, single model, 5-pin, M12 connector - Telemecanique
Miniature Safety RFID switch, 3-time pairing enabled, single model, 5-pin, M12 connector.
This product is compatible with XCSRK1BU, XCSRZSTK1, XZCC12FCM50B, XZCC12FDM50B, XZCP11V12L2, XZCP12V12L2
SPETSIFIKATSIOONID
Main
design
Miniature
component name
XCSRM
Complementary
[ue] rated operational voltage
24 V DC (- 20...20 %) SELV or PELV conforming to IEC 60204-1
Actuator
42 x 28.5 x 18 mm
Product certifications
TÜVEcolab
response time
<55 ms +12 ms per switch in daisy-chain (Risk time according to IEC 60947-5-3)
Product or component type
Preventa RFID safety switch
tightening torque
0.8...1.2 N.m
marking
CEUKCATÜV
Electrical shock protection class
Class III conforming to IEC 61140
safety reliability data
PFHd = 2.62E-9 1/h conforming to IEC 62061
Material
Plastic
switching frequency
<= 0.5 Hz
Local signalling
Green, yellow and red 1 multi-colour LED
switching capacity in ma
300 mA
connector type
M12 male
electrical connection
1 male connector
Safety outputs
2 NO
Shock resistance
30 gn for 11ms conforming to IEC 60068-2-27
Safety level
SIL 3 conforming to IEC 61508
Type of output stage
Solid-state, PNP
Size
Switch: 42 x 28.5 x 18 mm
Protection type
Short-circuit protection
Environment
ip degree of protection
IP65 conforming to IEC 60529
Range of product
Telemecanique Safety switches XCS
standards
IEC 60947-5-3ISO 14119IEC 60947-5-2
vibration resistance
+/- 1 mm (f= 10-55Hz) conforming to IEC 60068-2-6
