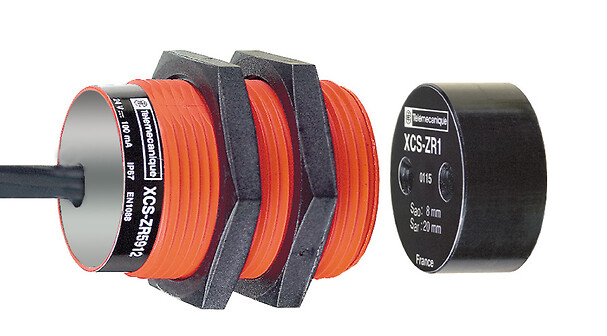

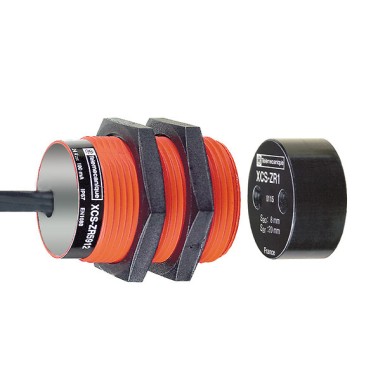

Coded magnetic switch XCSDMR - 1 NC + 1 NO - staggered - 5m - Telemecanique
Coded magnetic switch XCSDMR - 1 NC + 1 NO - staggered - 5m
SPETSIFIKATSIOONID
Main
design
Cylindrical
approach directions
1 direction
component name
XCSDMR
Complementary
[ie] rated operational current
100 MILLIAMPERE
[ue] rated operational voltage
24 V DC
cable composition
4 x 0.25 mm²
Product certifications
CSAUL
Product or component type
Coded magnetic switch
Contacts material
Rhodium
Enclosure material
Thermoplastic PBT
contact operation
Staggered
Contacts type and composition
1 NC + 1 NO
Electrical shock protection class
Class II conforming to IEC 61140
safety reliability data
B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear
Material
Plastic
switching frequency
150 Hz
cable material
PVC
switching capacity in ma
0.1...100 mA
electrical connection
Pre-cabled
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Safety level
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508
Size
Ø 30 x 38.5 mm
Environment
ip degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
Range of product
Telemecanique Safety switches XCS
standards
CSA C22.2 No 14ISO 12100UL 508ISO 14119IEC 60947-5-1IEC 60204-1
vibration resistance
10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
protective treatment
TH
insulation resistance
1000 MOhm
