XCMV2510D44 – Telemecanique
Tellitav26,58 € KM-ta
32,95 € KM-ga

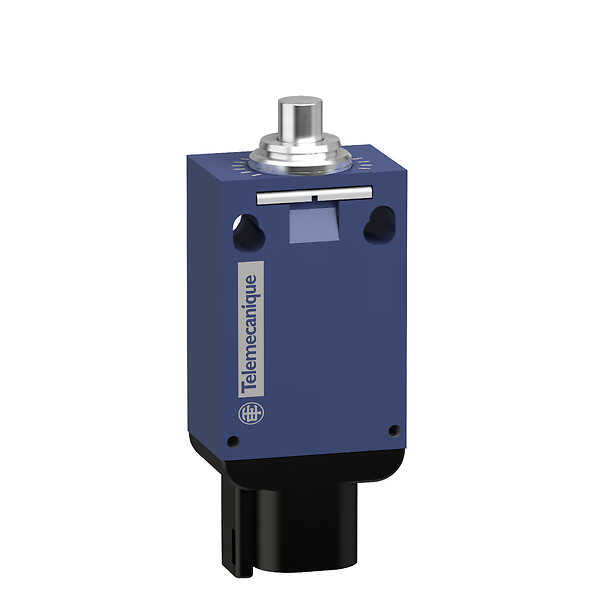

Limit switch, Limit switches XC Standard, XCMD, metal end plunger, 1NC+1 NO, slow, DT04 4P - Telemecanique
Limit switch, Limit switches XC Standard, XCMD, metal end plunger, 1NC+1 NO, slow, DT04 4P
SPETSIFIKATSIOONID
Main
Body type
Plug-in body
Device short name
XCMD
Series name
Standard format
head type
Plunger head
Complementary
Product certifications
CCCcURus
Product or component type
Limit switch
Contacts insulation form
Zb
contact operation
Slow-break
Contacts type and composition
1 NC + 1 NO
Electrical shock protection class
Class III conforming to IEC 61140, class III conforming to NF C 20-030
Fixing mode
By the body
body material
Zamak
Material
Metal
Type of operator
Spring return plunger metal
Ik degree of protection
IK06 conforming to EN 62262
head material
Zamak
Positive opening
With
electrical connection
Male connector DT04-4P, 4 pins
Movement of operating head
Linear
Switch actuation
By 30° cam
Type of approach
Lateral approach, 2 directions
Shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
Resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
Sensor design
Miniature
Environment
ip degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69 conforming to IEC 60529
Range of product
Telemecanique Limit switches XC Standard
standards
CSA C22.2 No 14EN/IEC 60947-5-1UL 508EN/IEC 60204-1
vibration resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
protective treatment
TC
