XCMN2121T05 – Telemecanique
Tellitav100,58 € KM-ta
124,71 € KM-ga

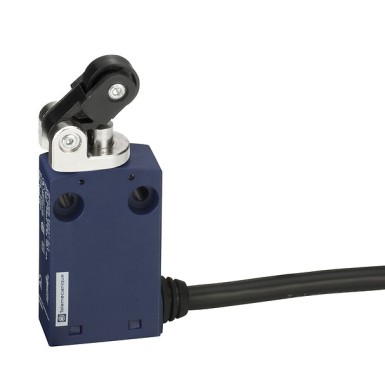

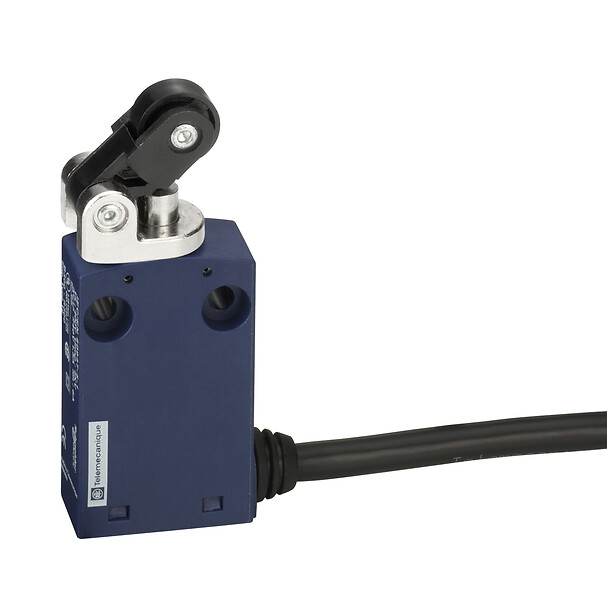

Limit switch, Limit switches XC Standard, XCMN, thermoplastic plastic roller lever plung. Hor, 1NC+1 NO, snap, 1 m - Telemecanique
Limit switch, Limit switches XC Standard, XCMN, thermoplastic plastic roller lever plung. Hor, 1NC+1 NO, snap, 1 m
SPETSIFIKATSIOONID
Main
Body type
Fixed
Device short name
XCMN
Series name
Standard format
head type
Plunger head
Complementary
cable composition
4 x 0.75 mm²
Product certifications
CSACCCUL
Product or component type
Limit switch
Contacts insulation form
Zb
contact operation
Snap action
Contacts type and composition
1 NC + 1 NO
Electrical shock protection class
Class II conforming to IEC 61140, class II conforming to NF C 20-030
Fixing mode
By the body
body material
Plastic
Material
Plastic
Type of operator
Spring return roller lever plunger thermoplastic
Ik degree of protection
IK04 conforming to IEC 62262
contact code designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
head material
Zamak
Positive opening
With
electrical connection
Fixed cable
Movement of operating head
Linear
Switch actuation
By 30° cam
Type of approach
Lateral approach, 1 direction
Shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Sensor design
Miniature
Wire insulation material
PvR
Environment
ip degree of protection
IP65 conforming to IEC 60529
Range of product
Telemecanique Limit switches XC Standard
standards
CSA C22.2 No 14UL 508IEC 60947-5-1IEC 60204-1
vibration resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
protective treatment
TC
