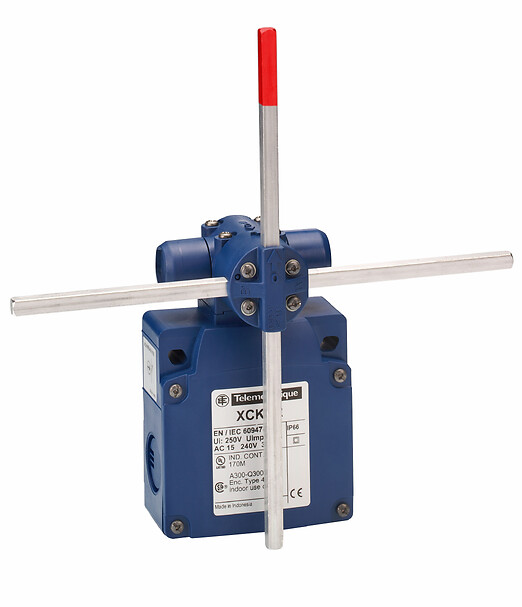

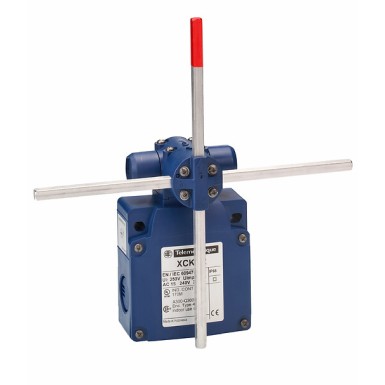

XCKVR24SR1H29 - Limit switch, Limit switches XC Standard - Telemecanique - Limit switch, Limit switches XC Standard, XCKVR, stay put crossed rods lever 6 mm, 2x(NC+NO), slow, M20 - Telemecanique - 0
XCKVR24SR1H29 - Limit switch, Limit switches XC Standard - Telemecanique - Limit switch, Limit switches XC Standard, XCKVR, stay put crossed rods lever 6 mm, 2x(NC+NO), slow, M20 - Telemecanique - 0

XCKVR24SR1H29 – Telemecanique

Tellitav
96,48 € KM-ta
119,64 € KM-ga
Limit switch, Limit switches XC Standard, XCKVR, stay put crossed rods lever 6 mm, 2x(NC+NO), slow, M20 - Telemecanique
 Korvis
119,64 €
Limit switch, Limit switches XC Standard, XCKVR, stay put crossed rods lever 6 mm, 2x(NC+NO), slow, M20. This product is compatible with DE9PEM20010
SPETSIFIKATSIOONID
Main
Body type Fixed
Device short name XCKVR
product specific application For hoisting and mechanical handling applications
Series name Special format
head type Rotary head
Complementary
Product certifications CSACCCCEUL
Product or component type Limit switch
cable entry 1 entry tapped and 2 breakout holes for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm
Contact block per direction [control circuit] 2 per direction
Contacts insulation form Zb
contact operation Slow-break, break before make
Contacts type and composition 2 x (1 NC + 1 NO)
Electrical shock protection class Class II conforming to IEC 60536
Fixing mode By the body
body material (PBT+PC)-GF30 FR
Material Plastic
Type of operator Stay put crossed rods lever metal square rod 6 mm, L = 200 mm
Ik degree of protection IK04 conforming to IEC 62262
contact code designation A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q150, DC-13 (Ue = 125 V), Ie = 0.55 A conforming to IEC 60947-5-1 appendix A
head material (PBT+PC)-GF30 FR
Positive opening Without
electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Movement of operating head Rotary
Switch actuation By any moving part
Type of approach Lateral approach, 2 directions
Shock resistance 50 gn conforming to IEC 60068-2-27
Resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3
Terminals description iso n°1 (21-22)NC(13-14)NO
Environment
ip degree of protection IP65 conforming to IEC 60529
Range of product OsiSense XC
standards CSA C22.2 No 14UL 508IEC 60947-5-1
vibration resistance 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
protective treatment TC
