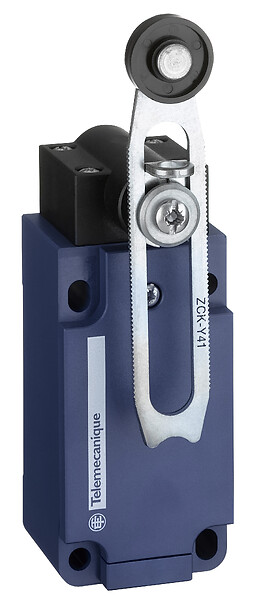

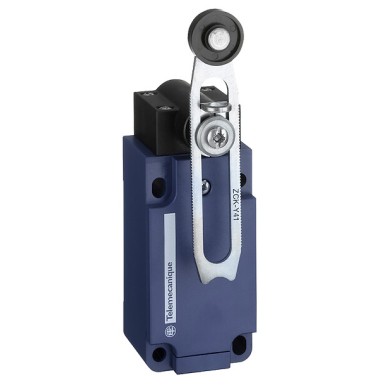

XCKS541 - Limit switch, Limit switches XC Standard - Telemecanique - Limit switch, Limit switches XC Standard, XCKS, thermoplastic plastic roller lever var. length, 1NC+1 NO, slow, Pg13 - Telemecanique - 0
XCKS541 - Limit switch, Limit switches XC Standard - Telemecanique - Limit switch, Limit switches XC Standard, XCKS, thermoplastic plastic roller lever var. length, 1NC+1 NO, slow, Pg13 - Telemecanique - 0

XCKS541 – Telemecanique

Tellitav
33,90 € KM-ta
42,04 € KM-ga
Limit switch, Limit switches XC Standard, XCKS, thermoplastic plastic roller lever var. length, 1NC+1 NO, slow, Pg13 - Telemecanique
 Korvis
42,04 €
Limit switch, Limit switches XC Standard, XCKS, thermoplastic plastic roller lever var. length, 1NC+1 NO, slow, Pg13. This product is compatible with DE9RA1012, XCMZ07, ZCE05
SPETSIFIKATSIOONID
Main
Body type Fixed
Device short name XCKS
Series name Standard format
head type Rotary head
Complementary
Product certifications CSACCCUL
Product or component type Limit switch
cable entry 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm
Contacts insulation form Zb
contact operation Slow-break, break before make
Contacts type and composition 1 NC + 1 NO
Electrical shock protection class Class II conforming to IEC 61140, class II conforming to NF C 20-030
Fixing mode By the body
body material Plastic
Material Plastic
Type of operator Spring return roller lever thermoplastic variable length
Ik degree of protection IK05 conforming to IEC 62262
contact code designation A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
head material Plastic
Positive opening With
electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Movement of operating head Rotary
Switch actuation By 30° cam
Type of approach Lateral approach, 1 or 2 programmable direction
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3
Sensor design -
Terminals description iso n°1 (21-22)NC(13-14)NO
Environment
ip degree of protection IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Range of product Telemecanique Limit switches XC Standard
overvoltage category Class II conforming to IEC 61140, class II conforming to NF C 20-030
standards CSA C22.2 No 14CENELEC EN 50041UL 508IEC 60947-5-1IEC 60204-1
vibration resistance 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
protective treatment TC
