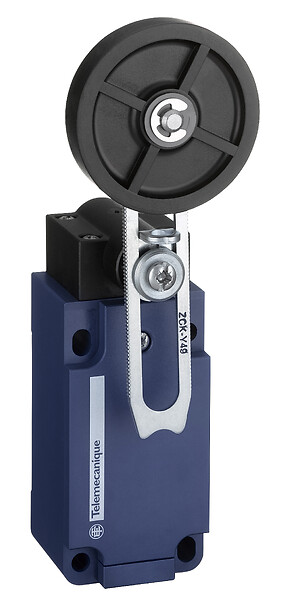

XCKS149H7 - Limit switch, Limit switches XC Standard - Telemecanique - Limit switch, Limit switches XC Standard, XCKS, elastomer roller lever Ø 50 mm, 1NC+1 NO, snap, 1/2NPT - Telemecanique - 0

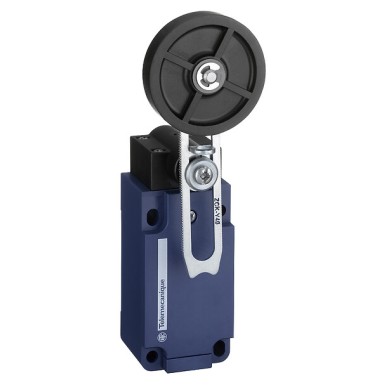

XCKS149H7 - Limit switch, Limit switches XC Standard - Telemecanique - Limit switch, Limit switches XC Standard, XCKS, elastomer roller lever Ø 50 mm, 1NC+1 NO, snap, 1/2NPT - Telemecanique - 0

XCKS149H7 – Telemecanique

Tellitav
43,74 € KM-ta
54,24 € KM-ga
Limit switch, Limit switches XC Standard, XCKS, elastomer roller lever Ø 50 mm, 1NC+1 NO, snap, 1/2NPT - Telemecanique
 Korvis
54,24 €
Limit switch, Limit switches XC Standard, XCKS, elastomer roller lever Ø 50 mm, 1NC+1 NO, snap, 1/2NPT
SPETSIFIKATSIOONID
Main
Body type Fixed
Device short name XCKS
Series name Standard format
head type Rotary head
Complementary
Product certifications CSACCCUL
Product or component type Limit switch
cable entry 1 entry tapped for 1/2" NPT cable gland, cable outer diameter: 7-13 mm
Contacts insulation form Zb
contact operation Snap action
Contacts type and composition 1 NC + 1 NO
Electrical shock protection class Class II conforming to IEC 61140, class II conforming to NF C 20-030
Fixing mode By the body
body material Plastic
Material Plastic
Type of operator Spring return roller lever elastomer variable length, roller diameter 50 mm
Ik degree of protection IK05 conforming to IEC 62262
contact code designation A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
head material Plastic
Positive opening Without
electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Movement of operating head Rotary
Switch actuation By 30° cam
Type of approach Lateral approach, 1 or 2 programmable direction
Shock resistance 40 gn for 11 ms conforming to IEC 60068-2-27
Resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3
Sensor design -
Terminals description iso n°1 (21-22)NC(13-14)NO
Environment
ip degree of protection IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Range of product Telemecanique Limit switches XC Standard
overvoltage category Class II conforming to IEC 61140, class II conforming to NF C 20-030
standards CSA C22.2 No 14CENELEC EN 50041UL 508IEC 60947-5-1IEC 60204-1
vibration resistance 20 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
protective treatment TC
