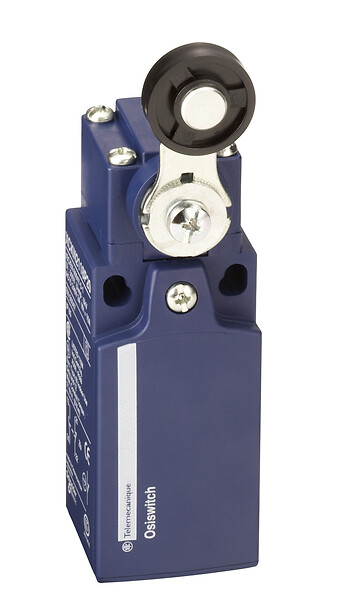

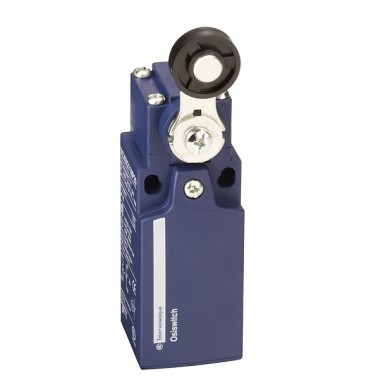

XCKN2818P20 - Limit switch, Limit switches XC Standard - Telemecanique - Limit switch, Limit switches XC Standard, XCKN, thermoplastic roller lever, 2 NO, slow, M20 - Telemecanique - 0
XCKN2818P20 - Limit switch, Limit switches XC Standard - Telemecanique - Limit switch, Limit switches XC Standard, XCKN, thermoplastic roller lever, 2 NO, slow, M20 - Telemecanique - 0

XCKN2818P20 – Telemecanique

Tellitav
13,10 € KM-ta
16,25 € KM-ga
Limit switch, Limit switches XC Standard, XCKN, thermoplastic roller lever, 2 NO, slow, M20 - Telemecanique
 Korvis
16,25 €
Limit switch, Limit switches XC Standard, XCKN, thermoplastic roller lever, 2 NO, slow, M20. This product is compatible with DE9RA1012, XCMZ07, ZCE05
SPETSIFIKATSIOONID
Main
Body type Fixed
Device short name XCKN
Series name Standard format
head type Rotary head
Complementary
Product certifications CSACCCUL
Product or component type Limit switch
cable entry 1 entry tapped for Pg 11 cable gland
Contacts insulation form Zb
contact operation Slow-break, simultaneous
Contacts type and composition 2 NO
Fixing mode By the body
body material Plastic
Material Plastic
Type of operator Spring return roller lever thermoplastic
Ik degree of protection IK04 conforming to IEC 62262
contact code designation A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
head material Plastic
repeat accuracy 0.1 mm on the tripping points with 1 million operating cycles
Positive opening Without
electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Movement of operating head Rotary
Switch actuation By 30° cam
Type of approach Lateral approach, 2 directions
Shock resistance 45 gn for 11 ms conforming to IEC 60068-2-27
Resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3
Sensor design Compact form A conforming to CENELEC EN 50047
Tracks 24/40 mm
Terminals description iso n°1 (21-22)NC(13-14)NO
Environment
ip degree of protection IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
Range of product Telemecanique Limit switches XC Standard
overvoltage category Class II conforming to IEC 61140, class II conforming to NF C 20-030
standards CSA C22.2 No 14UL 508IEC 60947-5-1IEC 60204-1
vibration resistance 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
protective treatment TC
