XCKN2102P20C – Telemecanique
Tellitav8,46 € KM-ta
10,50 € KM-ga

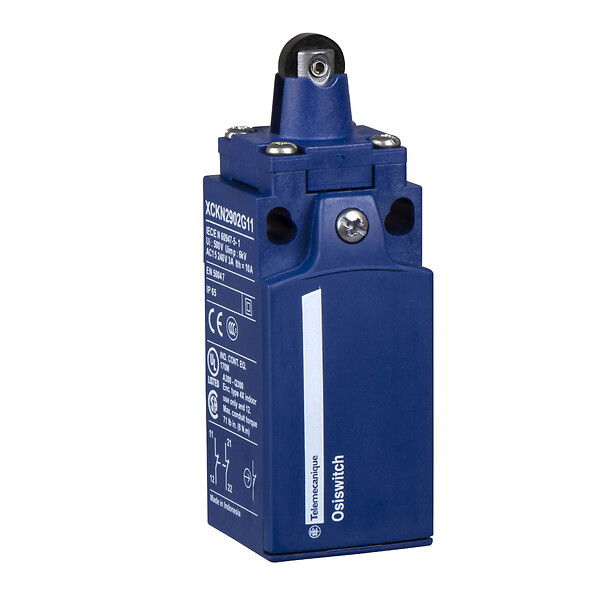

Limit switch, Limit switches XC Standard, XCKN, plastic roller plunger, 1NC+1 NO, snap, M20 - Telemecanique
Limit switch, Limit switches XC Standard, XCKN, plastic roller plunger, 1NC+1 NO, snap, M20
SPETSIFIKATSIOONID
Main
Body type
Fixed
Device short name
XCKN
Series name
Standard format
head type
Plunger head
Complementary
Product certifications
CCC
Product or component type
Limit switch
cable entry
1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm
Contacts insulation form
Zb
contact operation
Snap action
Contacts type and composition
1 NC + 1 NO
Fixing mode
By the body
body material
Plastic
Material
Plastic
Type of operator
Spring return roller plunger plastic
Ik degree of protection
IK04 conforming to IEC 62262
contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
head material
Plastic
Positive opening
With
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Movement of operating head
Linear
Switch actuation
By 30° cam
Type of approach
Lateral approach, 2 directions
Shock resistance
45 gn for 11 ms conforming to IEC 60068-2-27
Sensor design
Compact form C
Terminals description iso n°1
(21-22)NC(13-14)NO
Environment
ip degree of protection
IP65 conforming to IEC 60529
Range of product
Telemecanique Limit switches XC Standard
overvoltage category
Class II conforming to IEC 61140, class II conforming to NF C 20-030
standards
CSA C22.2 No 14UL 508IEC 60947-5-1IEC 60204-1
vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
protective treatment
TC
