XCKJ10541D – Telemecanique
Tellitav71,87 € KM-ta
89,12 € KM-ga

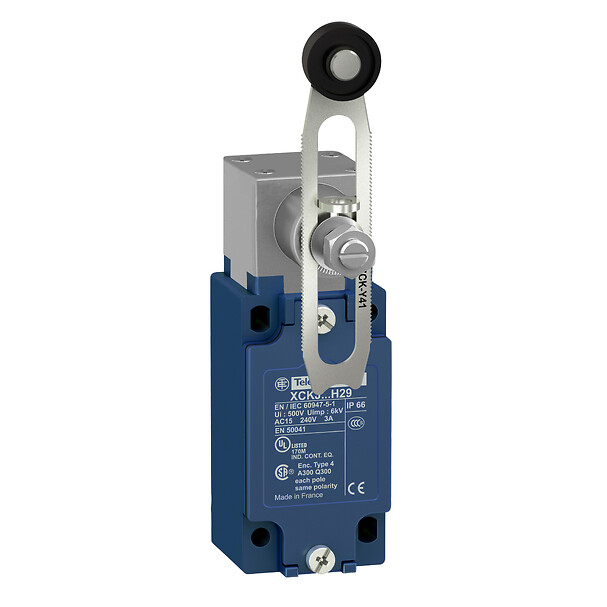

Limit switch, XC Standard, XCKJ, thermoplastic plastic roller lever var. length, 1NC+1 NO, snap, M12 - Telemecanique
Limit switch, XC Standard, XCKJ, thermoplastic plastic roller lever var. length, 1NC+1 NO, snap, M12.
This product is compatible with DE9RA1012, XCMZ07, ZCE05, ZCKZ020, ZCKZ021, ZCKZ034
SPETSIFIKATSIOONID
Main
Body type
Fixed
Device short name
XCKJ
Series name
Standard format
head type
Rotary head
Complementary
Product certifications
CSACCCUL
Product or component type
Limit switch
Contacts insulation form
Zb
contact operation
Snap action
Contacts type and composition
1 NC + 1 NO
Fixing mode
By the body
body material
Zamak
Material
Metal
Type of operator
Spring return roller lever thermoplastic variable length
Ik degree of protection
IK07 conforming to IEC 62262
head material
Zamak
Positive opening
Without
electrical connection
Male connector M12, 5 pins
Movement of operating head
Rotary
Switch actuation
By 30° cam
Type of approach
Lateral approach, 1 or 2 programmable direction
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Sensor design
-
Terminals description iso n°1
(21-22)NC(13-14)NO
Environment
ip degree of protection
IP66 conforming to IEC 60529
Range of product
Telemecanique Limit switches XC Standard
overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
standards
CSA C22.2 No 14CENELEC EN 50041UL 508IEC 60947-5-1IEC 60204-1
vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
protective treatment
TH
