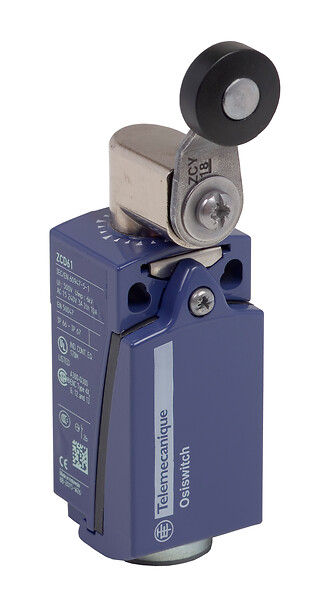

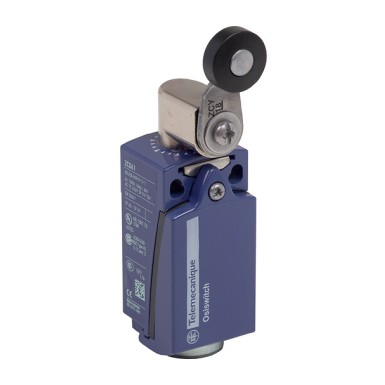

XCKD6802G11 - Limit switch, Limit switches XC Standard - Telemecanique - Limit switch, Limit switches XC Standard, metal 2 NO, gold contacts - Telemecanique - 0
XCKD6802G11 - Limit switch, Limit switches XC Standard - Telemecanique - Limit switch, Limit switches XC Standard, metal 2 NO, gold contacts - Telemecanique - 0

XCKD6802G11 – Telemecanique

Tellitav
223,90 € KM-ta
277,64 € KM-ga
Limit switch, Limit switches XC Standard, metal 2 NO, gold contacts - Telemecanique
 Korvis
277,64 €
Limit switch, Limit switches XC Standard, metal 2 NO, gold contacts
SPETSIFIKATSIOONID
Main
Body type Fixed
Device short name XCKD
Series name Standard format
head type Plunger head
Complementary
Product certifications CSACCCUL
Product or component type Limit switch
cable entry 1 entry tapped for Pg 11 cable gland
Contacts insulation form Zb
contact operation Slow-break, break before make
Contacts type and composition 1 NC + 1 NO
Electrical shock protection class Class I conforming to IEC 61140, class I conforming to NF C 20-030
Fixing mode By the body
body material Zamak
Material Metal
Type of operator Spring return roller plunger metal
Ik degree of protection IK06 conforming to IEC 62262
contact code designation A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1, A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
head material Zamak
repeat accuracy 0.1 mm on the tripping points with 1 million operating cycles
Positive opening With
electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Movement of operating head Linear
Switch actuation By 30° cam
Type of approach Lateral approach, 2 directions
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3
Sensor design Compact form C conforming to CENELEC EN 50047
Terminals description iso n°1 (21-22)NC(13-14)NO
Environment
ip degree of protection IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
Range of product Telemecanique Limit switches XC Standard
standards CSA C22.2 No 14UL 508IEC 60947-5-1IEC 60204-1
vibration resistance 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
protective treatment TC
