XCKD2115M12SAQ – Telemecanique
Tellitav44,43 € KM-ta
55,10 € KM-ga

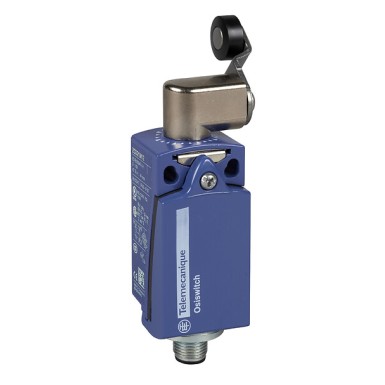

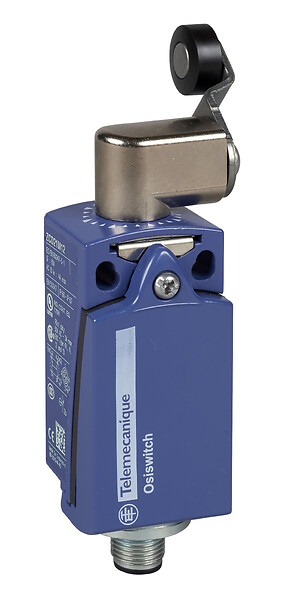

Limit switch, Limit switches XC Standard, XCKD, 1NC + 1 NO, snap, M12 - Telemecanique
Limit switch, Limit switches XC Standard, XCKD, 1NC + 1 NO, snap, M12
SPETSIFIKATSIOONID
Main
Body type
Fixed
Device short name
XCKD
Series name
Standard format
head type
Plunger head
Complementary
Product certifications
CSACCCUL
Product or component type
Limit switch
Contacts insulation form
Zb
contact operation
Snap action
Contacts type and composition
1 NC + 1 NO
Electrical shock protection class
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Fixing mode
By the body
body material
Zamak
Material
Metal
Type of operator
Spring return roller plunger metal with nitrile boot
Ik degree of protection
IK06 conforming to IEC 62262
head material
Zamak
repeat accuracy
0.1 mm on the tripping points with 1 million operating cycles
Positive opening
With
electrical connection
Male connector M12, 5 pins
Movement of operating head
Linear
Switch actuation
On end
Type of approach
Vertical approach, 1 direction
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Sensor design
Compact
Terminals description iso n°1
(21-22)NC(13-14)NO
Environment
Range of product
Telemecanique Limit switches XC Standard
standards
CSA C22.2 No 14UL 508IEC 60947-5-1IEC 60204-1
vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
protective treatment
TC
