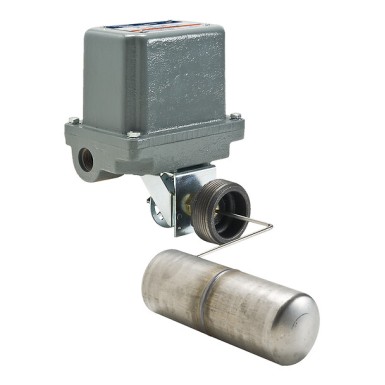

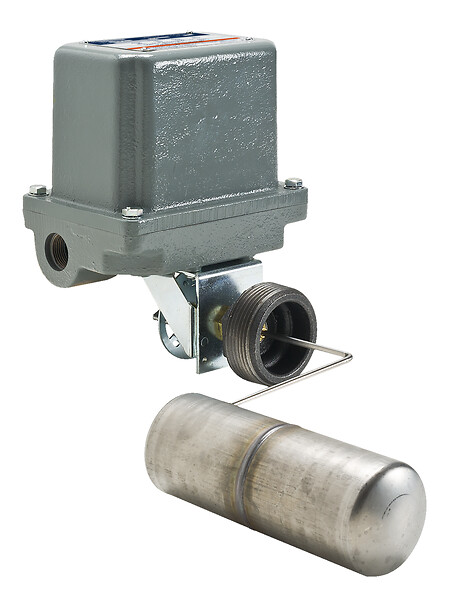

9038CW33 – Telemecanique
Tellitav1 267,68 € KM-ta
1 571,92 € KM-ga
Mechanical alternator, Pumptrol, mech closed tank, NEMA 4, screw in bushing, 4 NC DPST DB contacts - Telemecanique
Mechanical alternator, Pumptrol, mech closed tank, NEMA 4, screw in bushing, 4 NC DPST DB contacts
SPETSIFIKATSIOONID
Main
Device short name
9038C
product specific application
Mechanically alternating the operation of two pumps or motors
device mounting
Screw-in bushing
controlled fluid
Fresh water at specific gravity of 0.85 in or higher 0-220 °F, sea water at specific gravity of 0.85 in or higher 0-220 °F, hydraulic oil at specific gravity of 0.85 in or higher 0-220 °F, corrosive fluid at specific gravity of 0.85 in or higher 0-220 °F
Type of packing
Individual
Complementary
Kit composition
Floatfloat switchrod
Product certifications
CSAUL listed
Product or component type
Mechanical alternator
nema degree of protection
NEMA 4 conforming to UL 50
Quantity per set
Set of 1
Device application
Closed tank with bushing
Enclosure material
Cast aluminium
contact operation
Contacts close on liquid rise
Contacts type and composition
4 NC, snap action, DPST-DB, Form YY
Electrical circuit type
Power circuit
Local signalling
With external pointer
Operating position
Vertical position only
terminal block type
8 terminals
Materials in contact with fluid
Yellow brasscast ironstainless steel 316stainlesss steel 304nitrile (Buna-N) or equivalent rubber
electrical connection
Screw-clamp terminals, clamping capacity: 10 AWG
Operating rate
60 CYCLE_PER_MINUTE
Product destination
For closed tank
Terminals description iso n°1
Line-load-load-line
Environment
Range of product
Pumptrol
standards
CEUL 508
