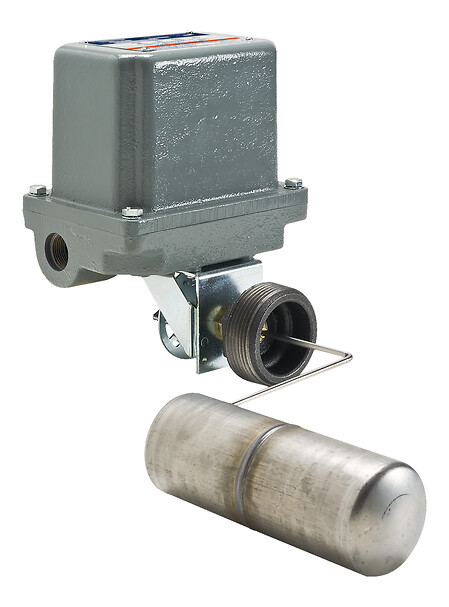

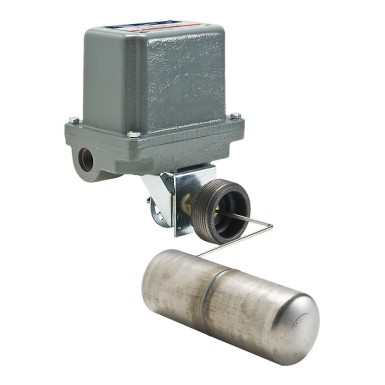

9038CR32 - Mechanical alternator, Pumptrol - Telemecanique - Mechanical alternator, Pumptrol, mech closed tank, NEMA 7/9, screw in bushing -4 NC DPST DB contacts - Telemecanique - 0
9038CR32 - Mechanical alternator, Pumptrol - Telemecanique - Mechanical alternator, Pumptrol, mech closed tank, NEMA 7/9, screw in bushing -4 NC DPST DB contacts - Telemecanique - 0

9038CR32 – Telemecanique

Tellitav
1 261,30 € KM-ta
1 564,01 € KM-ga
Mechanical alternator, Pumptrol, mech closed tank, NEMA 7/9, screw in bushing -4 NC DPST DB contacts - Telemecanique
 Korvis
1 564,01 €
Mechanical alternator, Pumptrol, mech closed tank, NEMA 7/9, screw in bushing -4 NC DPST DB contacts. This product is compatible with 9049EF1, 9049EF2, 9049ER1, 9049ER12, 9049ER2, 9049ER3, 9049ER5, 9049ER7
SPETSIFIKATSIOONID
Main
Device short name 9038C
product specific application Mechanically alternating the operation of two pumps or motors
device mounting Screw-in bushing
controlled fluid Fresh water at specific gravity of 0.85 in or higher 0-220 °F, sea water at specific gravity of 0.85 in or higher 0-220 °F, hydraulic oil at specific gravity of 0.85 in or higher 0-220 °F, corrosive fluid at specific gravity of 0.85 in or higher 0-220 °F
Type of packing Individual
Complementary
Kit composition Floatfloat switchrod
Product certifications CSAUL listed HazLoc
Product or component type Mechanical alternator
nema degree of protection NEMA 7/9 conforming to UL 698
Quantity per set Set of 1
Device application Closed tank with bushing
Enclosure material Cast aluminium
contact operation Contacts close on liquid rise
Contacts type and composition 4 NC, snap action, DPST-DB, Form YY
Electrical circuit type Power circuit
Local signalling With external pointer
Operating position Vertical position only
terminal block type 8 terminals
Materials in contact with fluid Yellow brasscast ironstainless steel 316stainlesss steel 304nitrile (Buna-N) or equivalent rubber
electrical connection Screw-clamp terminals, clamping capacity: 10 AWG
Operating rate 60 CYCLE_PER_MINUTE
Product destination For closed tank
Terminals description iso n°1 Line-load-load-line
Environment
Range of product Pumptrol
standards CEUL 508
