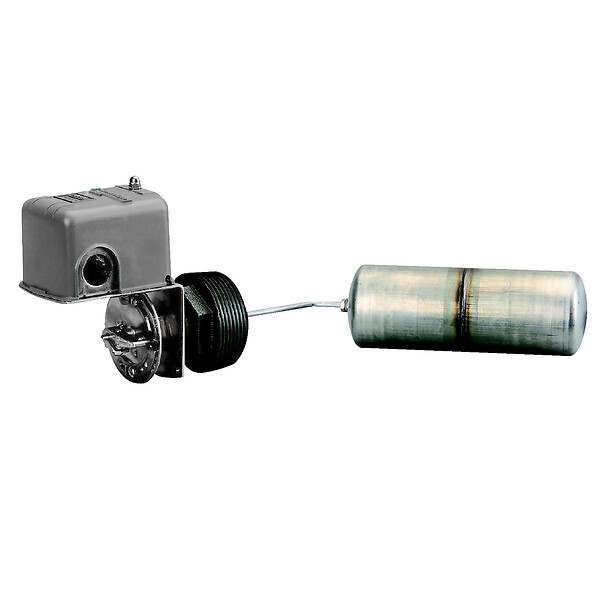

Float switch, Pumptrol, closed tank, NEMA 1, screw in bushing, 2 NO DPST DB contacts - Telemecanique
Float switch, Pumptrol, closed tank, NEMA 1, screw in bushing, 2 NO DPST DB contacts
SPETSIFIKATSIOONID
Main
Device short name
9037H
product specific application
Liquid level control
device mounting
Screw-in bushing
controlled fluid
Fresh water at specific gravity of 0.85 in or higher 0-220 °F, sea water at specific gravity of 0.85 in or higher 0-220 °F, hydraulic oil at specific gravity of 0.85 in or higher 0-220 °F, corrosive fluid at specific gravity of 0.85 in or higher 0-220 °F
Type of packing
Individual
Complementary
Kit composition
Floatfloat switchrod
Product certifications
CSAUL listed
Product or component type
Float switch
nema degree of protection
NEMA 1 conforming to UL 50
Quantity per set
Set of 1
Device application
Closed tank
Enclosure material
Polypropylene or equivalent
contact operation
Contacts open on liquid rise
Contacts type and composition
2 NO, snap action, DPST-DB, Form XX
Electrical circuit type
Power circuit
Local signalling
With external pointer
Operating position
Vertical position only
terminal block type
4 terminals
Materials in contact with fluid
Yellow brasscast ironstainless steel 316stainlesss steel 304nitrile (Buna-N) or equivalent rubber
electrical connection
Screw-clamp terminals, clamping capacity: 10 AWG
Operating rate
60 CYCLE_PER_MINUTE
Product destination
For closed tank
Terminals description iso n°1
Line-load-load-line
Environment
Range of product
Pumptrol
standards
CEUL 508
