9037EW13 – Telemecanique
Tellitav781,81 € KM-ta
969,44 € KM-ga

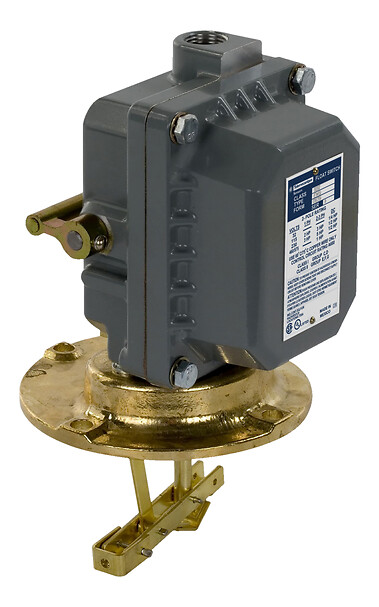

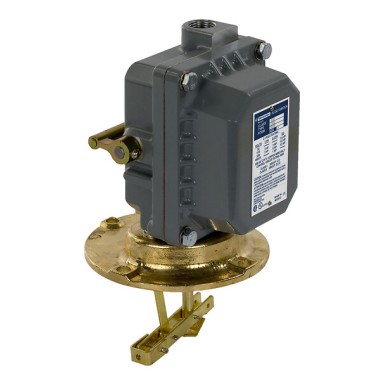

Float switch, Pumptrol, closed tank, NEMA 4, flange mounted, 2 NC DPST DB contacts - Telemecanique
Float switch, Pumptrol, closed tank, NEMA 4, flange mounted, 2 NC DPST DB contacts
SPETSIFIKATSIOONID
Main
Device short name
9037E
product specific application
Liquid level control
device mounting
Flange
controlled fluid
Fresh water at specific gravity of 0.85 in or higher 0-220 °F, sea water at specific gravity of 0.85 in or higher 0-220 °F, hydraulic oil at specific gravity of 0.85 in or higher 0-220 °F, corrosive fluid at specific gravity of 0.85 in or higher 0-220 °F
Type of packing
Individual
Complementary
Kit composition
Rod and float are to be choosen in accessoriesfloat switch
Product certifications
CSAUL listed
Product or component type
Float switch
nema degree of protection
NEMA 4 conforming to UL 50
Quantity per set
Set of 1
Device application
Closed tank
Enclosure material
Cast aluminium
contact operation
Contacts close on liquid rise
Contacts type and composition
2 NC, snap action, DPST-DB, Form YY
Electrical circuit type
Power circuit
Local signalling
Without
Operating position
Vertical or horizontal position
terminal block type
4 terminals
Materials in contact with fluid
Yellow brassstainless steel 316stainlesss steel 304nitrile (Buna-N) or equivalent rubber
electrical connection
Screw-clamp terminals, clamping capacity: 10 AWG
Operating rate
60 CYCLE_PER_MINUTE
Product destination
For closed tank
Terminals description iso n°1
Line-load-load-line
Environment
Range of product
Pumptrol
standards
CEUL 508
