9036DG2CR – Telemecanique
Tellitav122,98 € KM-ta
152,49 € KM-ga

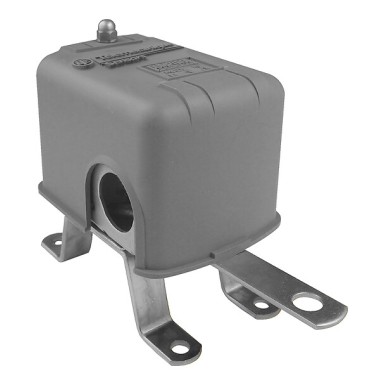

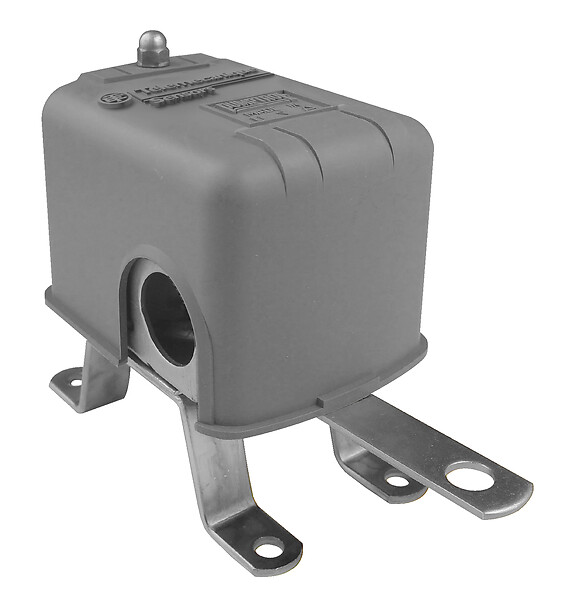

Float switch, Pumptrol, open tank, NEMA 1, pedestal mounted, 2 NO DPST DB contacts - Telemecanique
Float switch, Pumptrol, open tank, NEMA 1, pedestal mounted, 2 NO DPST DB contacts.
This product is compatible with 9049A19, 9049A58, 9049UMS1
SPETSIFIKATSIOONID
Main
Device short name
9036D
product specific application
Liquid level control
device mounting
Pedestal
controlled fluid
Fresh water at specific gravity of 0.85 in or higher, sea water at specific gravity of 0.85 in or higher, hydraulic oil at specific gravity of 0.85 in or higher, corrosive fluid at specific gravity of 0.85 in or higher
Type of packing
Individual
Complementary
Kit composition
Rod and float are to be choosen in accessoriesfloat switch
Product certifications
CSAUL listed
Product or component type
Float switch
nema degree of protection
NEMA 1 conforming to UL 50
Quantity per set
Set of 1
Device application
Open tank general purpose
Enclosure material
Polypropylene or equivalent
contact operation
Contacts open on liquid rise
Contacts type and composition
2 NO, snap action, DPST-DB, Form XX
Electrical circuit type
Power circuit
Local signalling
Without
Operating position
Vertical position only
terminal block type
4 terminals
electrical connection
Screw-clamp terminals, clamping capacity: 10 AWG
Operating rate
60 CYCLE_PER_MINUTE
Product destination
For open tank or sump
Terminals description iso n°1
Line-load-load-line
Environment
Range of product
Pumptrol
standards
CEUL 508
