9016GAW22 – Telemecanique
Tellitav1 422,43 € KM-ta
1 763,82 € KM-ga

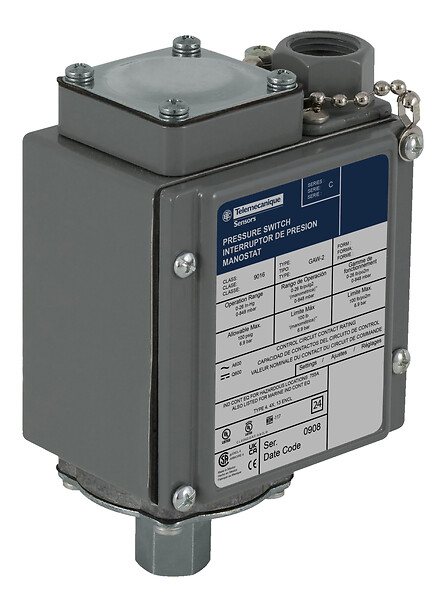

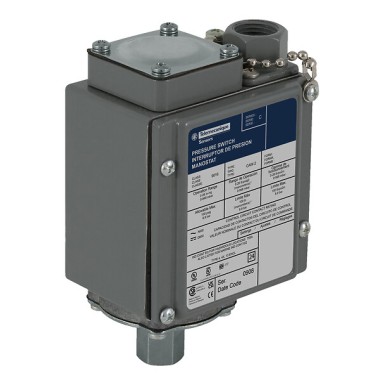

Electromechanical vacuum switch, 9016G, adjustable scale, 2 thresholds, Set 0 to 25 InHg - Telemecanique
Electromechanical vacuum switch, 9016G, adjustable scale, 2 thresholds, Set 0 to 25 InHg
SPETSIFIKATSIOONID
Main
Device short name
9016G
pressure actuator
Diaphragm nitrile (Buna-N)
Fluid connection type
0.25 inch 18 NPTF conforming to UL 508
controlled fluid
Air (-40-250 °F), water (-40-250 °F), hydraulic oil (-40-250 °F), gas (-40-250 °F)
Complementary
local display
Without
Product certifications
CSAUL listed
Product or component type
Electromechanical vacuum switch
nema degree of protection
NEMA 4/4X/13 conforming to UL 698
cable entry
0.5 inch NPT conduit entrance
Device application
Sensitive control application
Enclosure material
Die cast aluminium alloy 380
Contacts type and composition
2(NC-NO), DPDT, Form ZZ, snap action, silver nickel contacts
Electrical circuit type
Control circuit
Local signalling
Without:
maximum pressure
100 psi
setting
Internal
Operating position
Any position
terminal block type
8 screw terminals
Materials in contact with fluid
Zinc plated steelnitrile (Buna-N)3M Scotch-Grip 847 rubber and gasket adhesive
electrical connection
Screw-clamp terminals AWG 22...AWG 12
Operating rate
120 cyc/mn
Value of setting
Not applicable
Shock resistance
50 gn conforming to IEC 58-2-27
Scale type
Adjustable differential
Environment
Range of product
9016G
standards
UL 508
vibration resistance
2 gn conforming to IEC 68-2-6 (f = 40-150 Hz)
protective treatment
None
