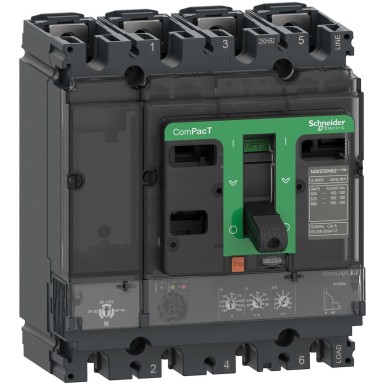

C10V42D040 - Kaitselüliti, ComPacT NSX100HB1, 75kA/690VAC, 4P, MicroLogic 2.2 päästik 40A. - Schneider Electric - Kaitselüliti, ComPacT NSX100HB1, 75kA/690VAC, 4P, MicroLogic 2.2 päästik 40A. - Schneider Electric - 0
C10V42D040 - Kaitselüliti, ComPacT NSX100HB1, 75kA/690VAC, 4P, MicroLogic 2.2 päästik 40A. - Schneider Electric - Kaitselüliti, ComPacT NSX100HB1, 75kA/690VAC, 4P, MicroLogic 2.2 päästik 40A. - Schneider Electric - 0
Tellimisel

C10V42D040 – Schneider Electric

EAN: 3606482001817
445,38 € KM-ta
552,27 € KM-ga
Kaitselüliti, ComPacT NSX100HB1, 75kA/690VAC, 4P, MicroLogic 2.2 päästik 40A. - Schneider Electric
 Korvis
552,27 €
SPETSIFIKATSIOONID
Main
Range New generation ComPacT
sectioning ability Yes conforming to EN/IEC 60947-2
job category Category A
name of the device NSX100HB1
type of product or equipment Circuit breaker
Product Name Next Generation ComPacT NSX
[ui] rated insulation voltage 800 V AC 50/60 Hz
trigger protection functions LSoI
circuit breaker installation mode Fixed
performance level HB1 75 kA 690 V CA
neutral pole position Left
trigger name Micrologic 2.2
type of trigger Electronic
ultimate short-circuit breaking capacity [icu] 85 kA Icu at 500 V AC 50/60 Hz if conforming to CEI 60947-2
80 kA Icu at 525 V AC 50/60 Hz if conforming to CEI 60947-2
75 kA Icu at 660/690 V AC 50/60 Hz if comply with IEC 60947-2
protected poles 4d
3d + N/2
3d
Complementary
"no" connection 35 mm
[in] rated operational current 40 A at 40 °C
[ue] rated operational voltage 690 V AC 50/60 Hz
application Distribution
[ics] rated service breaking capacity 85 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
80 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
75 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
short-time protection threshold setting range [isd] 1.5...10 x Ir
Handle front plate colour 161 mm
trigger caliber 40 A at 40 °C
[uimp] rated impulse withstand voltage 8 kV
product weight 2,4 kg
tsd short time protection time delay setting Fixed
electrical life 20000 cycles at 440 V In/2
10000 cycles at 440 V In
10000 cycles at 690 V In/2
5000 cycles at 690 V In
setting the differential protection time delay δt Adjustable 9 positions
mechanical endurance 20000 cycle
width (w) 140 mm
network frequency 50/60 Hz
thermal memory 20 minutes before and after triggering
Local signalling for ready to operate Flashing LED (green)
for overload 105% Ir LED (red)
for overload 90% Ir LED (orange)
long time protection time delay setting range [tr] 400 s at 1.5 x Jump
16 s at 6 x Jump
11 s at 7.2 x Jump
setting range of the long-time protection threshold [ir] (thermal protection) 18...40 A
upstream connection Façade
downstream connection Façade
instantaneous protection threshold setting range [ii] (short-circuit protection) 600 A
number of slots for electrical auxiliaries 5 slot(s)
mounting bracket back plate
neutral protection setting 0.5 x Ir (3d + N/2)
1 x Ir (4d)
No protection (3d)
depth (p) 86 mm
Network type THAT
differential protection Without
mounting position Horizontal et vertical
Flat on the back
power loss per pole 1.34W
tr long time protection time delay setting Fixed
instantaneous protection sensor setting ii (short circuit protection) Fixed
ir long time protection sensor setting (thermal protection) Adjustable 9 positions
order type Just a little bit
kind of protection L: for overload protection (long delay)
So: for short delay protection with fixed delay
I: for instantaneous protection against short-circuit
zsi logic selective latch area Without
Poles description 4P
Environment
degree of pollution 3 conforming to IEC 60664-1
ip degree of protection IP40 conforming to CEI 60529
operating altitude 0...2000 m without current reduction
2000 m...5000 m with current reduction
product certificates EAC
Marine
CCC
class of protection against electric shock Class II
operating ambient temperature -25…70 °C
overvoltage category Class II
standards EN/CEI 60947
relative humidity 0…95%
shock resistance ik IK07 conforming to IEC 62262
storage room temperature -50…85 °C
