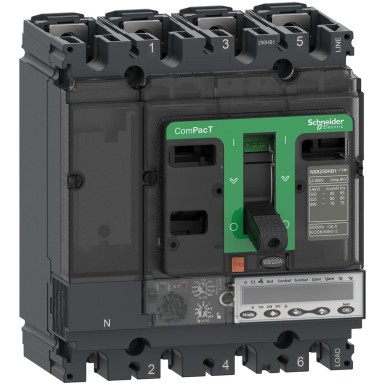

C10V36M080 - Kaitselüliti, ComPacT NSX100HB1, 75kA/690VAC, 3P, MicroLogic 6.2E-M päästik 80A - Schneider Electric - Kaitselüliti, ComPacT NSX100HB1, 75kA/690VAC, 3P, MicroLogic 6.2E-M päästik 80A - Schneider Electric - 0
C10V36M080 - Kaitselüliti, ComPacT NSX100HB1, 75kA/690VAC, 3P, MicroLogic 6.2E-M päästik 80A - Schneider Electric - Kaitselüliti, ComPacT NSX100HB1, 75kA/690VAC, 3P, MicroLogic 6.2E-M päästik 80A - Schneider Electric - 0
Tellimisel

C10V36M080 – Schneider Electric

EAN: 3606482002098
566,46 € KM-ta
702,41 € KM-ga
Kaitselüliti, ComPacT NSX100HB1, 75kA/690VAC, 3P, MicroLogic 6.2E-M päästik 80A - Schneider Electric
 Korvis
702,41 €
SPETSIFIKATSIOONID
Main
Range New generation ComPacT
sectioning ability Yes conforming to EN/IEC 60947-2
job category Category A
name of the device NSX100HB1
type of product or equipment Circuit breaker
Product Name Next Generation ComPacT NSX
[ui] rated insulation voltage 800 V AC 50/60 Hz
trigger protection functions LSIG
circuit breaker installation mode Fixed
performance level HB1 75 kA 690 V CA
trigger name Micrologic 6.2 E-M
type of trigger Electronic
ultimate short-circuit breaking capacity [icu] 85 kA Icu at 500 V AC 50/60 Hz if conforming to CEI 60947-2
80 kA Icu at 525 V AC 50/60 Hz if conforming to CEI 60947-2
75 kA Icu at 660/690 V AC 50/60 Hz if comply with IEC 60947-2
protected poles 3d
Complementary
"no" connection 35 mm
motor trip class 10
20
5
30
[in] rated operational current 80 A at 65 °C
[ue] rated operational voltage 690 V AC 50/60 Hz
application Motor protection
[ics] rated service breaking capacity 85 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
80 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
75 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
short-time protection threshold setting range [isd] 5...13 x And
Handle front plate colour 161 mm
trigger caliber 80 A at 65 °C
[uimp] rated impulse withstand voltage 8 kV
earth protection time delay setting range [tg] 0…0,4 s
product weight 2,05 kg
earth fault protection threshold setting range [ig] 0.2 to 1 x inch
Ig activation on/off
tsd short time protection time delay setting Fixed
additional engine protection Phase imbalance Stalled
rotor
Incomplete load
Extended starting time
electrical life 20000 cycles at 440 V In/2
10000 cycles at 440 V In
10000 cycles at 690 V In/2
5000 cycles at 690 V In
setting the differential protection time delay δt Adjustable
type of measurement energy meter
Data recording Maintenance indicators
Phase sequence
Maximum/minimum meters Power
quality
Thermal image function
Stamping time logs and event tables
Energy measurement
Protection and alarm parameters
Current and power
demand Instantaneous and demand values
mechanical endurance 20000 cycle
width (w) 105 mm
network frequency 50/60 Hz
thermal memory 20 minutes before and after triggering
Local signalling forready for operation LED flashing (green)
fortemperature higher than the set value LED 95% Ith (red)
setting the earth fault protection time delay tg Adjustable 5 positions
long time protection time delay setting range [tr] 120 s at 1.5 x Irfor type 5
6.5 s at 6 x Irfor type 5
5 s at 7.2 x Irfor type 5
240 s at 1.5 x Irfor type 10
13.5 s at 6 x Irfor type 10
10 s at 7.2 x Irfor type 10
480 s at 1.5 x Irfor type 20
26 s at 6 x Irfor type 20
20 s at 7.2 x Irfor type 20
720 s at 1.5 x Irfor type 30
38 s at 6 x Irfor type 30
30 s at 7.2 x Irfor type 30
setting range of the long-time protection threshold [ir] (thermal protection) 35...80 A
upstream connection Façade
downstream connection Façade
instantaneous protection threshold setting range [ii] (short-circuit protection) 1200 A
number of slots for electrical auxiliaries 5 slot(s)
ig earth fault protection sensor setting Adjustable 9 positions
mounting bracket back plate
depth (p) 86 mm
Network type THAT
differential protection Without
mounting position Horizontal et vertical
Flat on the back
power loss per pole 3.01W
tr long time protection time delay setting Adjustable
instantaneous protection sensor setting ii (short circuit protection) Fixed
ir long time protection sensor setting (thermal protection) Adjustable 9 positions
order type Just a little bit
type of display LCD display
kind of protection L: for overload protection (long delay)
So: for short delay protection
I: for instantaneous short-circuit
protection G: for short-circuit to ground protection
zsi logic selective latch area With
Poles description 3P
Environment
degree of pollution 3 conforming to IEC 60664-1
ip degree of protection IP40 conforming to CEI 60529
operating altitude 0...2000 m without current reduction
2000 m...5000 m with current reduction
product certificates Marine
CCC
EAC
class of protection against electric shock Class II
operating ambient temperature -25…70 °C
overvoltage category Class II
standards EN/CEI 60947
relative humidity 0…95%
shock resistance ik IK07 conforming to IEC 62262
storage room temperature -40…85 °C
