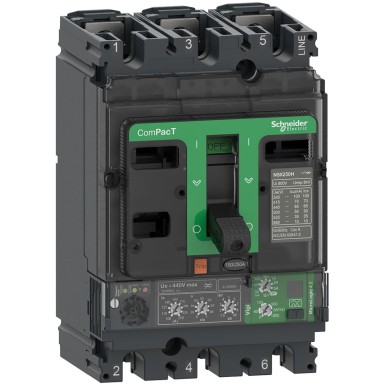

C10F34V040 - Kaitselüliti, ComPacT NSX100F, 36kA/415VAC, 3P, MicroLogic Vigi 4.2 päästik 40A - Schneider Electric - Kaitselüliti, ComPacT NSX100F, 36kA/415VAC, 3P, MicroLogic Vigi 4.2 päästik 40A - Schneider Electric - 0
C10F34V040 - Kaitselüliti, ComPacT NSX100F, 36kA/415VAC, 3P, MicroLogic Vigi 4.2 päästik 40A - Schneider Electric - Kaitselüliti, ComPacT NSX100F, 36kA/415VAC, 3P, MicroLogic Vigi 4.2 päästik 40A - Schneider Electric - 0
Tellimisel

C10F34V040 – Schneider Electric

EAN: 3606481993380
284,84 € KM-ta
353,21 € KM-ga
Kaitselüliti, ComPacT NSX100F, 36kA/415VAC, 3P, MicroLogic Vigi 4.2 päästik 40A - Schneider Electric
 Korvis
353,21 €
SPETSIFIKATSIOONID
Main
Range New generation ComPacT
sectioning ability Yes conforming to EN/IEC 60947-2
job category Category A
name of the device NSX100F
type of product or equipment Differential circuit breaker
Product Name Next Generation ComPacT NSX
[ui] rated insulation voltage 500 V AC 50/60 Hz
trigger protection functions LSoIR
circuit breaker installation mode Fixed
performance level F 36 kA 415 V CA
trigger name Micrologic 4.2
type of trigger Electronic
ultimate short-circuit breaking capacity [icu] 85 kA Icu at 220/240 V AC 50/60 Hz if conforming to CEI 60947-2
36 kA Icu at 380/415 V AC 50/60 Hz if conforming to CEI 60947-2
35 kA Icu at 440 V AC 50/60 Hz if conforming to CEI 60947-2
25 kA Icu at 500 V AC 50/60 Hz if conforming to CEI 60947-2
22 kA Icu at 525 V AC 50/60 Hz if conforming to CEI 60947-2
8 kA Icu at 660/ 690 V AC 50/60 Hz conforming to CEI 60947-2
protected poles 3d
Complementary
"no" connection 35 mm
specific differential protection mode Off using the rotary switch IΔn
[in] rated operational current 40 A at 40 °C
[ue] rated operational voltage 440 V AC 50/60 Hz
application Distribution
[ics] rated service breaking capacity 85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
35 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
12 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
11 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
4 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
short-time protection threshold setting range [isd] 1.5...10 x Ir
differential protection sensitivity setting range [iОґn] 30 mA
100 mA
300 mA
500 mA
1 A
3 A
5 A
Handle front plate colour 161 mm
trigger caliber 40 A at 40 °C
[uimp] rated impulse withstand voltage 8 kV
product weight 2,05 kg
tsd short time protection time delay setting Fixed
electrical life 50000 cycles at 440 V In/2
30000 cycles at 440 V In
20000 cycles at 690 V In/2
10000 cycles at 690 V In
setting the differential protection time delay δt Adjustable
differential protection time delay setting range [Δt] 0 ms
60 ms
150 ms
500 ms
1 s
mechanical endurance 50000 cycle
width (w) 105 mm
iδn differential protection sensitivity adjustment Adjustable
network frequency 50/60 Hz
thermal memory 20 minutes before and after triggering
Local signalling for ready to operate Flashing LED (green)
for overload 105% Ir LED (red)
for overload 90% Ir LED (orange)
long time protection time delay setting range [tr] 400 s at 1.5 x Jump
16 s at 6 x Jump
11 s at 7.2 x Jump
short time protection time delay setting range [tsd] 0,02 s
setting range of the long-time protection threshold [ir] (thermal protection) 18...40 A
upstream connection Façade
downstream connection Façade
instantaneous protection threshold setting range [ii] (short-circuit protection) 600 A
number of slots for electrical auxiliaries 5 slot(s)
mounting bracket back plate
depth (p) 86 mm
Network type Class A
differential protection Integrated
mounting position Horizontal et vertical
Flat on the back
power loss per pole 0,93 WN
0,93 W L1 et L3
0,78 W L2
tr long time protection time delay setting Fixed
instantaneous protection sensor setting ii (short circuit protection) Fixed
ir long time protection sensor setting (thermal protection) Adjustable 9 positions
order type Just a little bit
kind of protection L: for overload protection (long delay)
So: for short delay protection with fixed delay
I: for instantaneous protection against short-circuit
R: for differential protection
zsi logic selective latch area Without
Poles description 3P
Environment
degree of pollution 3 conforming to IEC 60664-1
ip degree of protection IP40 conforming to CEI 60529
operating altitude 0...2000 m without current reduction
2000 m...5000 m with current reduction
product certificates CCC
EAC
Marine
class of protection against electric shock Class II
overvoltage category Class II
standards EN/CEI 60947
relative humidity 0…95%
shock resistance ik IK07 conforming to IEC 62262
operating ambient air temperature -25…70 °C
storage room temperature -50…85 °C
