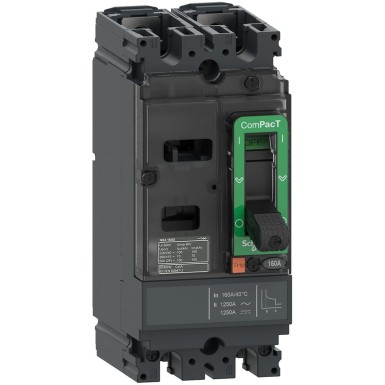

C10F2TM030 - Kaitselüliti, ComPacT NSX100F AC/DC, 18kA/415VAC, 2 poolust, TMD-paigaldis 30A - Schneider Electric - Kaitselüliti, ComPacT NSX100F AC/DC, 18kA/415VAC, 2 poolust, TMD-paigaldis 30A - Schneider Electric - 0
C10F2TM030 - Kaitselüliti, ComPacT NSX100F AC/DC, 18kA/415VAC, 2 poolust, TMD-paigaldis 30A - Schneider Electric - Kaitselüliti, ComPacT NSX100F AC/DC, 18kA/415VAC, 2 poolust, TMD-paigaldis 30A - Schneider Electric - 0
Tellimisel

C10F2TM030 – Schneider Electric

EAN: 3606481995407
88,96 € KM-ta
110,31 € KM-ga
Kaitselüliti, ComPacT NSX100F AC/DC, 18kA/415VAC, 2 poolust, TMD-paigaldis 30A - Schneider Electric
 Korvis
110,31 €
SPETSIFIKATSIOONID
Main
Range New generation ComPacT
sectioning ability Yes conforming to EN/IEC 60947-2
job category Category A
name of the device NSX100F
type of product or equipment Circuit breaker
Product Name Next Generation ComPacT NSX
[ui] rated insulation voltage 750 V AC 50/60 Hz conforming to IEC 60947-2
trigger protection functions THAT
circuit breaker installation mode Fixed
performance level F 18 kA 415 V CA
trigger name TM-D
type of trigger Thermal-magnetic
ultimate short-circuit breaking capacity [icu] 36 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
18 kA Icu at 380/415 V AC 50/60 Hz 1P conforming to IEC 60947-2
15 kA Icu at 440 V AC 50/ 60 Hz 1P conforming to IEC 60947-2
10 kA Icu at 500/525 V AC 50/60 Hz 2P conforming to IEC 60947-2
5 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947- 2
36 kA Icu at 250 V DC 50/60 Hz 1 pole in series conforming to IEC 60947-2
36 kA Icu at 500 V DC 50/60 Hz 2 poles in series conforming to IEC 60947-2
protected poles 2d
Complementary
"no" connection 35 mm
[in] rated operational current 30 A at 40 °C
[ue] rated operational voltage 690 V CA 50/60 Hz
500 V CC
application Distribution
[ics] rated service breaking capacity 36 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
18 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
15 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
10 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
5 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
36 kA at 250 V DC 50 /60 Hz conforming to IEC 60947-2
36 kA at 500 V DC 50/60 Hz conforming to IEC 60947-2
Handle front plate colour 161 mm
trigger caliber 30 A at 40 °C
[uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
product weight 1,2 kg
electrical life 20000 cycles at 277 V In/2
10000 cycles at 277 V In
mechanical endurance 20000 cycle
width (w) 70 mm
network frequency 50/60 Hz
setting range of the long-time protection threshold [ir] (thermal protection) 1 x In
upstream connection Façade
downstream connection Façade
instantaneous protection threshold setting range [ii] (short-circuit protection) 300 A
mounting bracket back plate
depth (p) 86 mm
Network type CA
CC
differential protection Without
mounting position Horizontal et vertical
Flat on the back
power loss per pole 3.94W
tr long time protection time delay setting Fixed
instantaneous protection sensor setting ii (short circuit protection) Fixed
ir long time protection sensor setting (thermal protection) Fixed
order type Just a little bit
kind of protection L: for overload (thermal)
protection I: for (magnetic) short-circuit protection
Poles description 2P
Environment
degree of pollution 3 conforming to IEC 60664-1
ip degree of protection IP40 conforming to CEI 60529
operating altitude 0...2000 m without current reduction
2000 m...5000 m with current reduction
product certificates CCC
EAC
Marine
class of protection against electric shock Class II
operating ambient temperature -25…70 °C
overvoltage category Class II
standards EN/CEI 60947
relative humidity 0…95%
shock resistance ik IK07 conforming to IEC 62262
storage room temperature -50…85 °C
