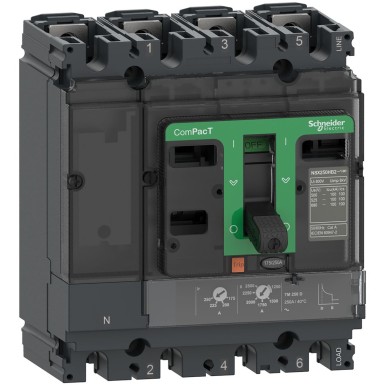

C10B4TM100 - Kaitselüliti, ComPacT NSX100B, 25kA/415VAC, 4P 4D (neutraal täielikult kaitstud), TMD päästik 100A - Schneider Electric - Kaitselüliti, ComPacT NSX100B, 25kA/415VAC, 4P 4D (neutraal täielikult kaitstud), TMD päästik 100A - Schneider Electric - 0
C10B4TM100 - Kaitselüliti, ComPacT NSX100B, 25kA/415VAC, 4P 4D (neutraal täielikult kaitstud), TMD päästik 100A - Schneider Electric - Kaitselüliti, ComPacT NSX100B, 25kA/415VAC, 4P 4D (neutraal täielikult kaitstud), TMD päästik 100A - Schneider Electric - 0
Tellimisel

C10B4TM100 – Schneider Electric

EAN: 3606481996527
186,71 € KM-ta
231,52 € KM-ga
Kaitselüliti, ComPacT NSX100B, 25kA/415VAC, 4P 4D (neutraal täielikult kaitstud), TMD päästik 100A - Schneider Electric
 Korvis
231,52 €
SPETSIFIKATSIOONID
Main
Range New generation ComPacT
sectioning ability Yes conforming to EN/IEC 60947-2
job category Category A
name of the device NSX100B
type of product or equipment Circuit breaker
Product Name Next Generation ComPacT NSX
[ui] rated insulation voltage 800 V AC 50/60 Hz
trigger protection functions THAT
circuit breaker installation mode Fixed
performance level B 25 kA 415 V CA
neutral pole position Left
trigger name TM-D
type of trigger Thermal-magnetic
ultimate short-circuit breaking capacity [icu] 40 kA Icu at 220/240 V AC 50/60 Hz if conforming to CEI 60947-2
25 kA Icu at 380/415 V AC 50/60 Hz if conforming to CEI 60947-2
20 kA Icu at 440 V AC 50/60 Hz if conforming to CEI 60947-2
15 kA Icu at 500 V AC 50/60 Hz if conforming to CEI 60947-2
protected poles 4d
Complementary
"no" connection 35 mm
[in] rated operational current 100 A at 40 °C
[ue] rated operational voltage 690 V AC 50/60 Hz
application Distribution
[ics] rated service breaking capacity 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
20 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
7 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
Handle front plate colour 161 mm
trigger caliber 100 A at 40 °C
[uimp] rated impulse withstand voltage 8 kV
product weight 2,4 kg
electrical life 50000 cycles at 440 V In/2
30000 cycles at 440 V In
20000 cycles at 690 V In/2
10000 cycles at 690 V In
mechanical endurance 50000 cycle
width (w) 140 mm
network frequency 50/60 Hz
long time protection time delay setting range [tr] 120…400 s at 1.5 x In
15 s at 6 x Ir
setting range of the long-time protection threshold [ir] (thermal protection) 0.7 to 1 x In
upstream connection Façade
downstream connection Façade
instantaneous protection threshold setting range [ii] (short-circuit protection) 800 A
number of slots for electrical auxiliaries 5 slot(s)
mounting bracket back plate
neutral protection setting 1 x Ir (4d)
depth (p) 86 mm
Network type THAT
differential protection Without
mounting position Horizontal et vertical
Flat on the back
power loss per pole 8.8W
tr long time protection time delay setting Fixed
instantaneous protection sensor setting ii (short circuit protection) Fixed
ir long time protection sensor setting (thermal protection) Adjustable
order type Just a little bit
kind of protection L: for overload (thermal)
protection I: for (magnetic) short-circuit protection
Poles description 4P
Environment
degree of pollution 3 conforming to IEC 60664-1
ip degree of protection IP40 conforming to CEI 60529
operating altitude 0...2000 m without current reduction
2000 m...5000 m with current reduction
product certificates CCC
EAC
Marine
class of protection against electric shock Class II
overvoltage category Class II
standards EN/CEI 60947
relative humidity 0…95%
shock resistance ik IK07 conforming to IEC 62262
operating ambient air temperature -25…70 °C
storage room temperature -50…85 °C
KKK ja hinna lisateave

Võta meiega ühendust

Professionaalne elektriseadmete müük Eestis, Lätis, Leedus ja Soomes. Sertifitseeritud madalpinge komponendid, kaitselülitid, kontaktorid ja tööstusautomaatika lahendused. Sama päeva hinnapakkumised ja kiire tarne Baltikumis ja Soomes

Baltelec
+372 5326 4976

E–R 9:00–17:00

info@baltelec.ee

Vastame 2 tunni jooksul

C10B4TM100 Schneider Electric on toode kategooriast Compact NSX, mis on mõeldud professionaalidele. BaltElec tegeleb mahupõhise müügi ja distributsiooniga Eestis, Lätis, Leedus ja Soomes.

  • Originaal Schneider Electric toode, vastavusdokumendid päringu alusel.
  • Mahupõhine hinnastus – küsi pakkumist suuremate koguste jaoks (võimalik, et sätestame MOQ).
  • Tõhus ja kiire logistika Baltikumis ning Soomes; koostöö logistikapartneritega.
  • Tehniline tugi ja nõustamine valikul vastavalt Sinu rakendusele.

Hind: Küsi projektipakkumist. Hind sõltub kogusest, tarne- ja maksetingimustest.
