LC1DFKP7 - Kondensaatorkontaktor, Tesys Deca, 12,5kVAR 400/415V 50Hz juures, 230V AC 50/60Hz mähis. - Schneider Electric - Kondensaatorkontaktor, Tesys Deca, 12,5kVAR 400/415V 50Hz juures, 230V AC 50/60Hz mähis. - Schneider Electric - 0
LC1DFKP7 - Kondensaatorkontaktor, Tesys Deca, 12,5kVAR 400/415V 50Hz juures, 230V AC 50/60Hz mähis. - Schneider Electric - Kondensaatorkontaktor, Tesys Deca, 12,5kVAR 400/415V 50Hz juures, 230V AC 50/60Hz mähis. - Schneider Electric - 0
Tellimisel

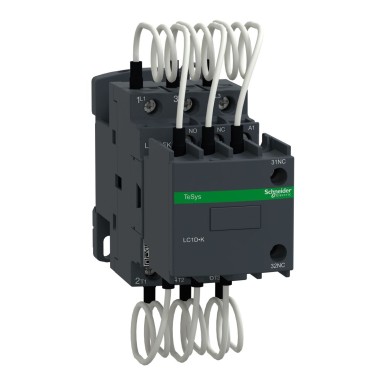

LC1DFKP7 – Schneider Electric

EAN: 3606480401794
38,27 € KM-ta
47,46 € KM-ga
Kondensaatorkontaktor, Tesys Deca, 12,5kVAR 400/415V 50Hz juures, 230V AC 50/60Hz mähis. - Schneider Electric
BaltElec ladu
Laost otsas
Tarnija ladu
Laos
Olemas, oodata 5-7 päeva pärast
 Korvis
47,46 €
SPETSIFIKATSIOONID
Default
Seeria TeSyS Deca kontaktorid
Main
Range TeSys
TeSys Deca
[uc] control circuit voltage 230 V AC 50/60Hz
job category AC-6B
name of the device LC1DFK
switch application Power factor correction
type of product or equipment capacitor contactor
Product Name TeSys LC1D.K
TeSys Deca
control circuit type AC at 50/60 Hz
composition of the power pole contacts 3F
rated reactive power 7 kvar at 230 V AC 50 Hz at <60 °C
12.5 kvar at 400 V AC 50 Hz at <60 °C
13 kvar at 440 V AC 50 Hz at <60 °C
21 kvar at 690 V AC 50 Hz at <60°C
Complementary
[ue] rated operational voltage Power circuit: 690 V AC 50/60 Hz
application Control
Handle front plate colour 115 mm
tightening torque Remote control: 1.7 Nm - on screw clamp terminals
Power circuit: 1.7 Nm - on screw clamp terminals
auxiliary contacts available on each contactor 1 "F" + 2 "O" non chevauchants
product weight 0,53 kg
type of auxiliary contacts mechanically linked type 1 NO + 2 NC conforming to IEC 60947-5-1
electrical life 300000 cycles at Ue 400 V
200000 cycles at Ue 690 V
connection mode Remote control: screw clamp terminals 1 1…4 mm² - cable stiffness: rigid
Remote control: screw clamp terminals 2 1…4 mm² - cable stiffness: rigid
Remote control: screw clamp terminals 1 1…4 mm² - stiffness cable cross section: flexible without cable end
Remote control: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Remote control: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Remote control: screw clamp
terminals screw clamp 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 2 1.5...4 mm² - cable stiffness: rigid
Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable
end power: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1.5…4 mm² - cable stiffness: flexible with cable end
width (w) 45 mm
depth 121 mm
mounting bracket Platinum DIN
Rail
max command speed 240 cyc/h
Poles description 3P
Environment
ip degree of protection IP20 front face conforming to IEC 60529
operating altitude 0...3000 m
product certificates CEI CE
UKCA certificate
operating ambient temperature -5…60 °C
standards EN/CEI 60947-1
EN/CEI 60947-4-1
CEI 60335-1
storage room temperature -60…80 °C
KKK ja hinna lisateave

Võta meiega ühendust

Professionaalne elektriseadmete müük Eestis, Lätis, Leedus ja Soomes. Sertifitseeritud madalpinge komponendid, kaitselülitid, kontaktorid ja tööstusautomaatika lahendused. Sama päeva hinnapakkumised ja kiire tarne Baltikumis ja Soomes

Baltelec
+372 5326 4976

E–R 9:00–17:00

info@baltelec.ee

Vastame 2 tunni jooksul

Schneider Electric LC1DFKP7 on toode kategooriast Tööstuslikud kontaktorid, mis on mõeldud ettevõtetele. BaltElec tegeleb mahupõhise müügi ja toodete levitamisega Eestis, Lätis, Leedus ja Soomes.

  • Originaal Schneider Electric toode, vastavusdokumendid päringu alusel.
  • Mahupõhine hinnastus – küsi pakkumist suuremate koguste jaoks (võimalik, et sätestame MOQ).
  • Tõhus ja kiire logistika Baltikumis ning Soomes; koostöö logistikapartneritega.
  • Tehniline tugi ja nõustamine valikul vastavalt Sinu rakendusele.

Hinnainfo: Küsi eripakkumist. Hind sõltub kogusest, tarne- ja maksetingimustest.
