LC1D183FE7 – Schneider Electric
EAN: 3389110803686
91,58 € KM-ta
113,56 € KM-ga

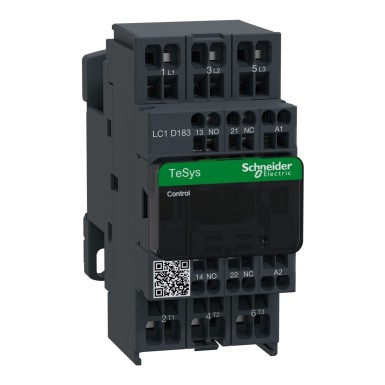

Kontaktor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 kuni 440V, 18A, 115VAC 50/60Hz mähis, vedruga - Schneider Electric
SPETSIFIKATSIOONID
Default
Seeria
TeSyS Deca kontaktorid
Main
product range
TeSys Deca
[uc] control circuit voltage
115V AC 50/60Hz
job category
AC-1
AC-4
AC-3
AC-3e
AC-4
AC-3
AC-3e
name of the device
LC1D
switch application
Resistive load (AC-1)
Motor control (AC-3)
Motor control (AC-3)
type of product or equipment
contactor
[ui] rated insulation voltage
Power circuit: 690 V conforming to IEC 60947-4-1
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Signaling circuit: 690 V conforming to IEC 60947-1
Signaling circuit: 600 V CSA Certified
Signaling Circuit: 600V UL Certified
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Signaling circuit: 690 V conforming to IEC 60947-1
Signaling circuit: 600 V CSA Certified
Signaling Circuit: 600V UL Certified
control circuit type
AC at 50/60 Hz
engine power hp
1 hp at 115 V AC 50/60 Hz for single phase motors
3 hp at 230/240 V AC 50/60 Hz for single phase motors
5 hp at 200/208 V AC 50/60 Hz for 3 phase motors
5 hp at 230/240 V AC 50/60 Hz for 3 motor phases
10 hp at 460/480 V AC 50/60 Hz for 3 motor phases
15 hp at 575/600 V AC 50/60 Hz for 3 motor phases
3 hp at 230/240 V AC 50/60 Hz for single phase motors
5 hp at 200/208 V AC 50/60 Hz for 3 phase motors
5 hp at 230/240 V AC 50/60 Hz for 3 motor phases
10 hp at 460/480 V AC 50/60 Hz for 3 motor phases
15 hp at 575/600 V AC 50/60 Hz for 3 motor phases
composition of the power pole contacts
3F
motor power kW
4 kW at 220...230 V AC 50/60 Hz (AC-3)
7,5 kW at 380...400 V AC 50/60 Hz (AC-3)
9 kW at 415...440 V AC 50/60 Hz (AC-3)
10 kW at 500 V AC 50/60 Hz (AC-3)
10 kW at 660...690 V AC 50/60 Hz (AC-3)
4 kW at 400 V AC 50 /60 Hz (AC-4)
4 kW at 220...230 V AC 50/60 Hz (AC-3e)
7,5 kW at 380...400 V AC 50/60 Hz (AC-3e)
9 kW à 415...440 V CA 50/60 Hz (AC-3e)
10 kW à 500 V CA 50/60 Hz (AC-3e)
10 kW à 660...690 V CA 50/60 Hz (AC-3e )
7,5 kW at 380...400 V AC 50/60 Hz (AC-3)
9 kW at 415...440 V AC 50/60 Hz (AC-3)
10 kW at 500 V AC 50/60 Hz (AC-3)
10 kW at 660...690 V AC 50/60 Hz (AC-3)
4 kW at 400 V AC 50 /60 Hz (AC-4)
4 kW at 220...230 V AC 50/60 Hz (AC-3e)
7,5 kW at 380...400 V AC 50/60 Hz (AC-3e)
9 kW à 415...440 V CA 50/60 Hz (AC-3e)
10 kW à 500 V CA 50/60 Hz (AC-3e)
10 kW à 660...690 V CA 50/60 Hz (AC-3e )
average impedance
2.5 mOhm - Ith 25 A 50 Hz for power circuit
Complementary
[ie] rated operational current
18 A (at <60°C) at <= 440 V AC AC-3 for power circuit
32 A (at <60°C) at <= 440 V AC AC-1 for power circuit
18 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
32 A (at <60°C) at <= 440 V AC AC-1 for power circuit
18 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
[ue] rated operational voltage
Power circuit: <= 690 V AC 25...400 Hz
Power circuit: <= 300 V DC
Power circuit: <= 300 V DC
compatibility code
LC1D
[ics] rated service breaking capacity
300 A at 440 V for power circuit conforming to IEC 60947
[icw] rated short-time withstand current
145 A at <40°C - 10 s for power circuit
240 A at <40°C - 1s for power circuit
40 A at <40°C - 10 min for power circuit
84 A at <40°C - 1 min for power circuit
100 A - 1s for signaling circuit
120 A - 500 ms for signaling circuit
140 A - 100 ms for signaling circuit
240 A at <40°C - 1s for power circuit
40 A at <40°C - 10 min for power circuit
84 A at <40°C - 1 min for power circuit
100 A - 1s for signaling circuit
120 A - 500 ms for signaling circuit
140 A - 100 ms for signaling circuit
[ith] conventional thermal current
25 A at <60°C) for power circuit
10 A at <60°C) for signaling circuit
10 A at <60°C) for signaling circuit
caliber of the fuse to be associated
10 A gG for signaling circuit conforming to IEC 60947-5-1
50 A gG at <= 690 V type 1 coordination for power circuit
35 A gG at <= 690 V type 2 coordination for power circuit
50 A gG at <= 690 V type 1 coordination for power circuit
35 A gG at <= 690 V type 2 coordination for power circuit
Handle front plate colour
99 mm
[uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947
auxiliary contacts
1 "O" + 1 "F"
average fuel consumption when going
7.5 VA 60 Hz cos phi 0.3 (at 20°C)
7 VA 50 Hz cos phi 0.3 (at 20°C)
7 VA 50 Hz cos phi 0.3 (at 20°C)
minimum switching current
5 mA for signaling circuit
product weight
0,33 kg
type of auxiliary contacts
mechanically linked type 1 NC + 1 NO conforming to IEC 60947-5-1
1 NC mirror contact type conforming to IEC 60947-4-1
1 NC mirror contact type conforming to IEC 60947-4-1
contact compatibility
M2
electrical life
1.65 Mcycles 18 A AC-3 at Ue <= 440 V
1 Mcycles 32 A AC-1 at Ue <= 440 V
1.65 Mcycles 25 A AC-3e at Ue <= 440 V
1 Mcycles 32 A AC-1 at Ue <= 440 V
1.65 Mcycles 25 A AC-3e at Ue <= 440 V
connection mode
Remote control: spring terminals 1 2.5 mm² - cable stiffness: flexible without cable end
Remote control: spring terminals 2 2.5 mm² - cable stiffness: flexible without cable end
Power circuit: spring terminals 1 4 mm² - cable stiffness : flexible without cable end
Power circuit: 2 4 mm² spring terminals - cable stiffness: flexible without cable end
Remote control: spring terminals 2 2.5 mm² - cable stiffness: flexible without cable end
Power circuit: spring terminals 1 4 mm² - cable stiffness : flexible without cable end
Power circuit: 2 4 mm² spring terminals - cable stiffness: flexible without cable end
control circuit voltage range
0.3...0.6 Uc -40...70 °C dropout AC 50/60 Hz
0.8...1.1 Uc -40...60 °C operational AC 50 Hz
0.85...1.1 Uc -40 …60 °C operational AC 60 Hz
1...1.1 Uc 60…70 °C operational AC 50/60 Hz
0.8...1.1 Uc -40...60 °C operational AC 50 Hz
0.85...1.1 Uc -40 …60 °C operational AC 60 Hz
1...1.1 Uc 60…70 °C operational AC 50/60 Hz
mechanical endurance
15 Mcycles
width (w)
45 mm
mechanical robustness
Contactor open vibrations (2 Gn, 5 to 300 Hz)
Contactor closed vibrations (4 Gn, 5 to 300 Hz)
Contactor open shocks (10 Gn for 11 ms)
Contactor closed shocks (15 Gn for 11 ms)
Contactor closed vibrations (4 Gn, 5 to 300 Hz)
Contactor open shocks (10 Gn for 11 ms)
Contactor closed shocks (15 Gn for 11 ms)
Flame retardance
V1 conforming to UL 94
rated rms inrush power
140 A AC for signaling circuit conforming to IEC 60947-5-1
250 A DC for signaling circuit conforming to IEC 60947-5-1
300 A at 440 V for power circuit conforming to IEC 60947
250 A DC for signaling circuit conforming to IEC 60947-5-1
300 A at 440 V for power circuit conforming to IEC 60947
depth
86 mm
mounting bracket
Rail
Platine
Platine
frequency
With
signaling circuit frequency
25 to 400 Hz
calling power goes
70 VA 60 Hz cos phi 0.75 (at 20°C)
70 VA 50 Hz cos phi 0.75 (at 20°C)
70 VA 50 Hz cos phi 0.75 (at 20°C)
operating time
12…22 ms closing
4…19 ms opening
4…19 ms opening
power loss per pole
2,5 W AC-1
0,8 W AC-3
0,8 W AC-3e
0,8 W AC-3
0,8 W AC-3e
security reliability level
B10d = 1369863 contactor cycle with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 contactor cycle with mechanical load conforming to EN/ISO 13849-1
B10d = 20000000 contactor cycle with mechanical load conforming to EN/ISO 13849-1
max command speed
3600 cycles/h at <60°C
minimum switching voltage
17 V for signaling circuit
non-overlap time
1.5 ms on de-
energization between NC and NO contact 1.5 ms on excitation between NC and NO contact
energization between NC and NO contact 1.5 ms on excitation between NC and NO contact
coil technology
Without integrated interference suppression module
Poles description
3P
Environment
degree of pollution
3
ip degree of protection
IP20 front face conforming to IEC 60529
operating altitude
0...3000 m
product certificates
DNV
RINA
CCC
UL
LROS (Lloyds register of shipping)
GOST
CSA
BV
GL
UKCA
RINA
CCC
UL
LROS (Lloyds register of shipping)
GOST
CSA
BV
GL
UKCA
ambient air temperature for operation
-40…60 °C
60…70 °C with current reduction
60…70 °C with current reduction
overvoltage category
III
standards
CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
CEI 60947-4-1
CEI 60947-5-1
UL 508
CEI 60335-1
EN 60947-4-1
EN 60947-5-1
CEI 60947-4-1
CEI 60947-5-1
UL 508
CEI 60335-1
fire resistance
850 °C conforming to IEC 60695-2-1
thermal dissipation
2…3 W at 50/60 Hz
climatic resistance
conforming to IACS E10 exposure to damp heat
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
protective treatment
TH conforming to IEC 60068-2-30
insulation resistance
> 10 MΩ for signaling circuit
