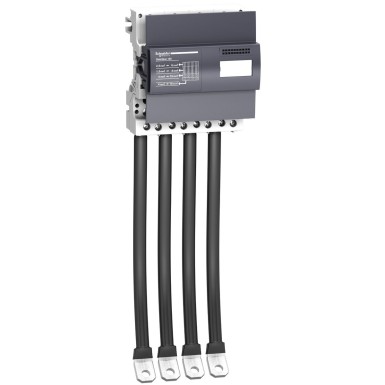

LVS04046 - Linergy DX - 160 A astmeline jaotur + ühendused (Distribloc) - Schneider Electric - Linergy DX - 160 A astmeline jaotur + ühendused (Distribloc) - Schneider Electric - 0
LVS04046 - Linergy DX - 160 A astmeline jaotur + ühendused (Distribloc) - Schneider Electric - Linergy DX - 160 A astmeline jaotur + ühendused (Distribloc) - Schneider Electric - 0
Tellimisel

LVS04046 – Schneider Electric

EAN: 3606481870902
66,24 € KM-ta
82,13 € KM-ga
Linergy DX - 160 A astmeline jaotur + ühendused (Distribloc) - Schneider Electric
 Korvis
82,13 €
SPETSIFIKATSIOONID
Main
Accessory category Power distribution accessory
product range Linergy
Range Linergy
[ipk] rated peak withstand current 20 kA
type of product or equipment Distributor
i²t at switch-on 20250000 A².s
Product Name Linergy DX
[ui] rated insulation voltage 750V CA
product installed Acti 9: fixed C120 with earth leakage protection - control: by toggle
Acti 9: fixed C120 without
earth leakage protection - control: by toggle Acti 9: fixed iC120 with earth leakage protection - control: by toggle
Acti 9: fixed iC120 without earth leakage protection - control: by
toggle ComPacT: fixed INS40 - control: direct front rotary handle - vertical installation
ComPacT: fixed INS63 - control: direct front rotary handle - vertical installation
ComPacT: fixed INS100 - control: direct front rotary handle - vertical installation
ComPacT: fixed INS125 - control : direct front rotary handle - vertical installation
ComPacT: fixed INS160 - control: direct front rotary handle - vertical installation
Multi 9: fixed NG125 with earth leakage protection - control: by toggle
Multi 9: fixed NG125 without earth leakage protection - control: by toggle
Multi 9: fixed NG125 NA - control: by Toggle ComPacT
: fixed NG160 with earth leakage protection - control: by
toggle ComPacT: fixed NG160 without earth leakage protection - control: by
toggle ComPacT: fixed NG160 NA without earth leakage protection - control: by
toggle ComPacT: fixed NSXm without earth leakage protection - control: by toggle - vertical installation
ComPacT: fixed NSXm with earth leakage protection - control: by toggle - vertical installation
Complementary
9 mm pitches 12
equipment included Adhesive labels for phase
identification Identification label
Prefabricated connection
[ie] rated operational current 160 A at 40 °C
[ue] rated operational voltage 690V CA
range compatibility PrismaSeT (PrismaSeT G)
PrismaSeT housing (PrismaSeT P)
PrismaSeT housing (Prisma PH)
PrismaSeT housing (PrismaSeT Pack 160)
PrismaSeT housing (PrismaSeT Pack 250) housing
[icw] rated short-time withstand current 4,5 kApour 1s
Handle front plate colour 127 mm
[uimp] rated impulse withstand voltage 8 kV
terms of use Additional connector required for INS40…160 (to be ordered separately)
product weight 1,28 kg
connection mode Distribution: spring terminal, 2 x4…10 mm² (flexible)
Distribution: spring terminal, 2 x4…10 mm² (rigid)
Distribution: spring terminal, 3 x2.5…6 mm² (flexible)
Distribution: spring terminal, 3 x2.5…6 mm² (rigid)
Distribution: spring terminal, 7 x1.5…4 mm² (flexible)
Distribution: spring terminal, 7 x1.5…4 mm² (rigid)
Distribution: cage type terminal, 1 x4…16 mm² (flexible)
Distribution: cage type terminal, 1 x4…25 mm² (rigid)
Power supply: cable with ferrule
width (w) 108 mm
Colour Gris anthracite (RAL 7016)
depth 48 mm
mounting bracket DIN rail
Poles description 4P
Environment
degree of pollution 3
degree of protection (ip) IPxx B
product certificates TO STAY
operating ambient temperature -25…55 °C
standards IEC 60947-7-1
IEC 61439-1, indoor enclosure IEC 61439-2, indoor
enclosure
held by incandescent wire 960 °C conforming to IEC 60695-2-11
KKK ja hinna lisateave

Võta meiega ühendust

Professionaalne elektriseadmete müük Eestis, Lätis, Leedus ja Soomes. Sertifitseeritud madalpinge komponendid, kaitselülitid, kontaktorid ja tööstusautomaatika lahendused. Sama päeva hinnapakkumised ja kiire tarne Baltikumis ja Soomes

Baltelec
+372 5326 4976

E–R 9:00–17:00

info@baltelec.ee

Vastame 2 tunni jooksul

Schneider Electric LVS04046 on lahendus kategooriast PrismaSeT G Active, mis on mõeldud ettevõtetele. BaltElec tegeleb mahupõhise müügi ja toodete levitamisega Eestis, Lätis, Leedus ja Soomes.

  • Originaal Schneider Electric toode, sertifikaadid ja vastavusdokumendid saadaval.
  • Projektihind – küsi pakkumist suuremate koguste jaoks (võimalik, et sätestame MOQ).
  • Tõhus ja kiire logistika Baltikumis ning Soomes; koostöö tunnustatud kulleritega.
  • Tehniline tugi ja ettepanekud sobivuse kohta vastavalt Sinu rakendusele.

Hind: Küsi projektipakkumist. Hind sõltub kogusest, tarne- ja maksetingimustest.
